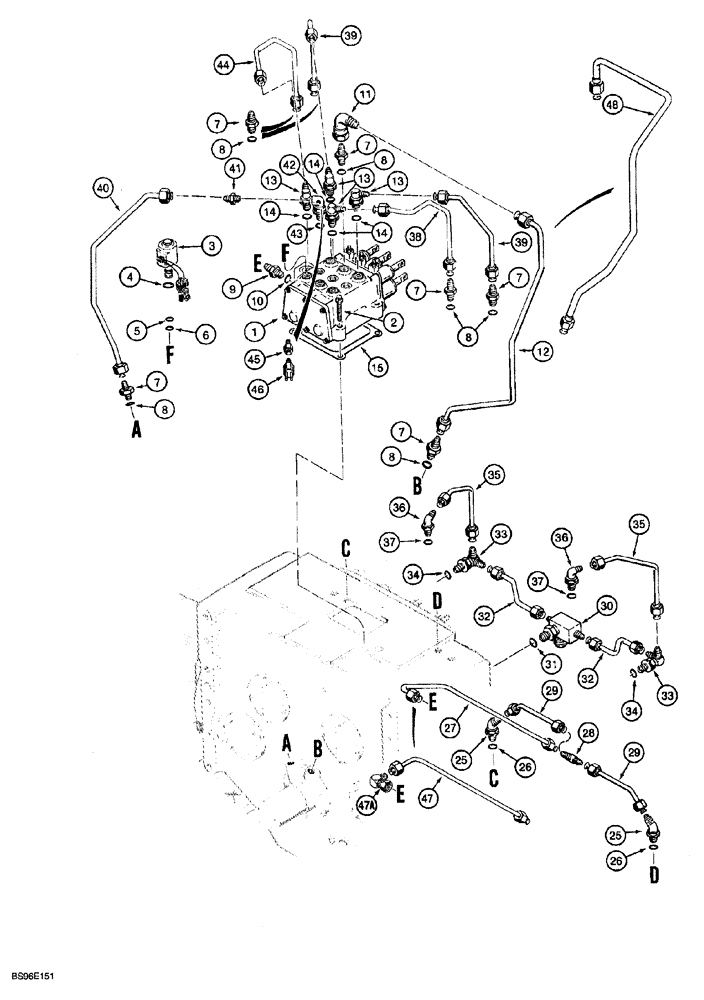

Запчасти Case 850G (6-20) - TRANSMISSION HYDRAULIC LINES (03) - TRANSMISSION

REF

INSTRUCTION

ASSEMBLY transmission, see Figure 6-08 for correct assembly, Includes: Ref. 1 - 48

1шт.

1

125588A4

VALVE

ASSEMBLY transmission control, parts list figure 6-22, Replaces: 125588A1, 125588A2 and 125588A3 valves

1шт.

2

180-607

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

flange, 12 point, chemical coating, 3/8 NC x 2 inch, grade 8

4шт.

349297A1

SOLENOID VALVE

ASSEMBLY valve, solenoid, 24 volt, Replaces: 130761A1, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE solenoid, 24 volt

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

6

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 8

7шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl. Ref. 10

1шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

If used

1шт.

12

1997056C1

TUBE

forward, used with Ref. 11 elbow, if used

1шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 14

4шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

1986527C1

GASKET

, Serial Range: valve,-housing

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

25

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 26

2шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

135913A1

TUBE,9.25 mm OD, 236.5, 181.5 mm Length

parking brake supply, no longer available, Order: 140920A2 tube and 218-980 elbow, Ref. 47 and 47A

1шт.

28

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch flare branch x flare x flare

1шт.

29

1997023C2

TUBE,9.52 mm OD

parking brake, tee to brake housing

2шт.

30

1997012C1

TEE

FITTING special, front of transmission, Includes: Ref. 31

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

32

1997107C1

TUBE,9.52 mm OD

FITTING special, to tee at brake housing

2шт.

33

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Special, Adj O-ring branch x flare x flare, Incl. Ref. 34

2шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

35

1997029C1

TUBE,9.52 mm OD

track lube

2шт.

36

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, O-ring boss, 9/16-18 inch flare x adj., Includes: Ref. 37

2шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

135916A1

TUBE,12.7 mm OD, 222.6, 148.1 mm Length

low track, right hand

1шт.

39

1997021C2

TUBE,12.7 mm OD

high track

2шт.

40

G108276

TUBE,0.5" OD

reverse

1шт.

41

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

straight, 3/4-16 flare x 3/8 inch PT

1шт.

42

G107178

ELBOW

90 degree, special, tapped for backup alarm switch plumbing, Includes: Ref. 43

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

44

135918A1

TUBE,12.7 mm OD, 222.6, 148.1 mm Length

low track, left hand

1шт.

45

R52651

FITTING

SNUBBER pressure switch

1шт.

46

D99796

SWITCH

pressure, backup alarm, see Figure 4-28 for alarm, identification color yellow, if used

1шт.

46

D139904

SWITCH

pressure, backup alarm, see Figure 4-28 for alarm, identification color black, if used

1шт.

47

140920A2

TUBE,9.25 mm OD, 208.2, 150.5 mm Length

parking brake supply

1шт.

47a

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

48

G110408

TUBE,12.7 mm OD x 273, 472 mm L

forward, Replaces: Ref. 11 elbow and Ref. 12 tube on some models, if used

1шт.

138971A1

SEAL KIT

KIT transmission, Includes: Ref. no. 15, plus an additional gasket not used in this application

1шт.
