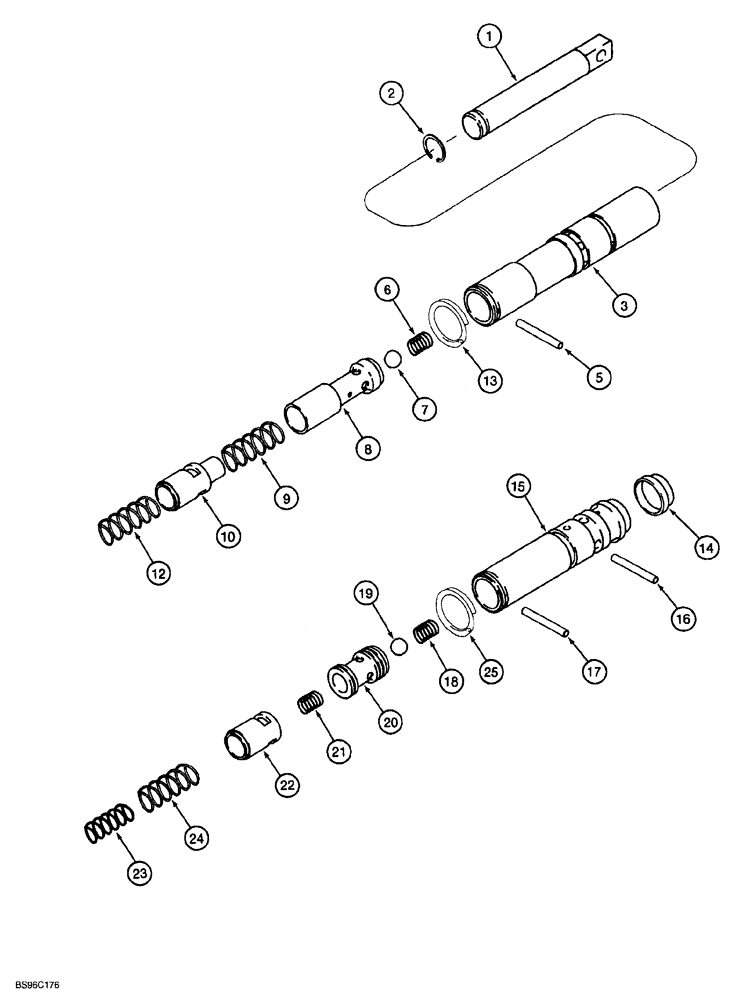

Запчасти Case 850G (6-25A) - TRANSMISSION CONTROL VALVE SPOOL ASSEMBLIES (03) - TRANSMISSION

REF

INSTRUCTION

ASSEMBLY transmission, see Figure 6-08 for correct assembly, Includes: Ref. 1 - 13

1шт.

189265A2

SPOOL

ASSEMBLY clutch cutout, Replaces: 189265A1

2шт.

1

138436A1

ROD

spool eye, clutch cutout assembly

1шт.

2

G107637

RING, SNAP

RING SNAP retaining, spool rod, clutch cutout assembly

1шт.

189269A2

SPOOL

ASSEMBLY clutch cutout, Includes: Ref. 3 - 13

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL sleeve, clutch cutout assembly

1шт.

5

37-1214

DOWEL,1/8" x 7/8"

dowel, hardened, 1/8 x 7/8 inch, clutch cutout spool assembly

1шт.

6

129700A1

SPRING

check valve ball, clutch cutout spool assembly

1шт.

7

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24, clutch cutout spool assembly

1шт.

8

189267A1

SPOOL

track modulation, clutch cutout assembly

1шт.

9

189259A1

SPRING

spool return, track reducer, clutch cutout spool assembly

1шт.

10

189268A1

PISTON

track modulation, clutch cutout spool assembly

1шт.

12

121866A1

SPRING

track modulation, outer, clutch cutout spool assembly

1шт.

13

102-1393

SNAP RING,#93, Ext, Spiral

external spiral retaining, No. 93, spring and piston, Replaces: 121493A2, clutch cutout spool assembly

1шт.

126430A3

SPOOL

ASSEMBLY forward and reverse modulation, Includes: Ref. 14 - 25

1шт.

14

121494A1

STOP

spool, forward and reverse modulation

1шт.

15

126255A3

SLEEVE

forward and reverse modulation spool, Replaces: 126255A2

1шт.

16

132923A1

PIN

retaining, 3.18 x 24 mm long, forward and reverse modulation spool

1шт.

17

37-1214

DOWEL,1/8" x 7/8"

dowel, hardened, spring retaining, spool end, 1/8 x 7/8 inch, forward and reverse modulation

1шт.

18

129700A1

SPRING

check valve ball, forward and reverse modulation spool

1шт.

19

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24, forward and reverse modulation spool

1шт.

20

126252A1

SPOOL

forward and reverse modulation spool

1шт.

21

127427A1

SPRING

spool return, forward and reverse reducer spool

1шт.

22

121492A1

PISTON

forward and reverse modulation spool

1шт.

23

121870A1

SPRING

forward and reverse modulation spool

1шт.

24

121871A1

SPRING

forward and reverse modulation spool

1шт.

25

102-1393

SNAP RING,#93, Ext, Spiral

external spiral retaining, No. 93, spring and piston, Replaces: 121493A2, forward and reverse modulation spool

1шт.
