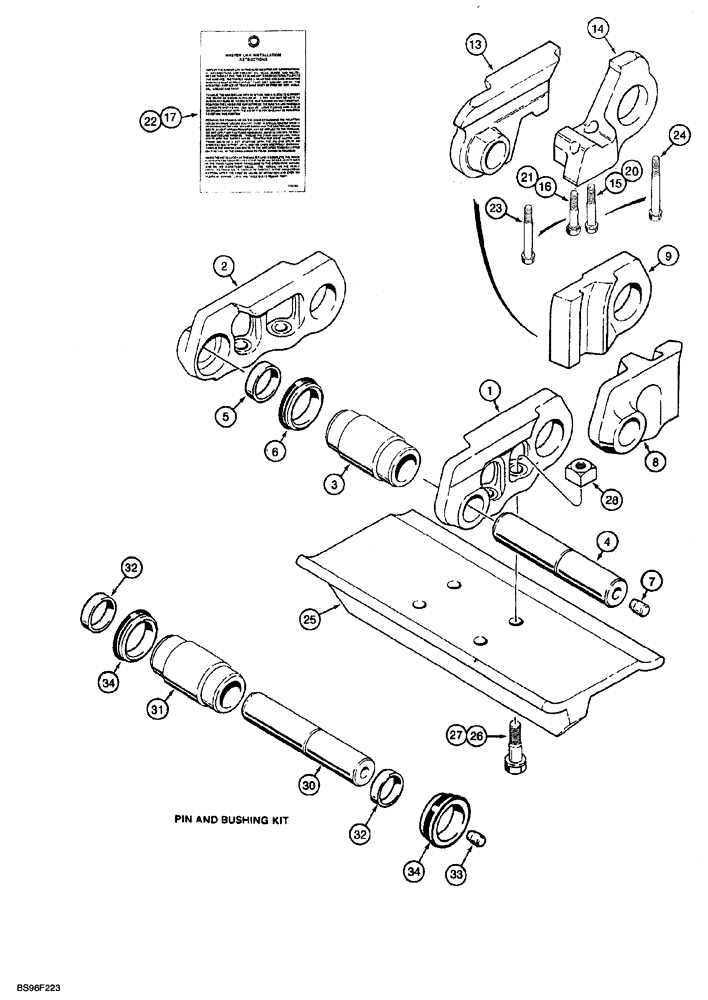

Запчасти Case 850G (5-10) - CASE LUBRICATED TRACK CHAIN (WITH 9/16 INCH MOUNTING HARDWARE) (04) - UNDERCARRIAGE

R56512

CHAIN (CE)

track, 38 unit, master link with one bolt hole, no longer available, order 129022A1 chain assembly, Includes: Ref. 1 - 22

2шт.

129022A1

CHAIN (CE)

track, 38 unit, master with two bolt holes, Includes: Ref. 1 - 22

2шт.

1

R56490

LINK

track, right-hand

37шт.

Part of Link Kit, CLT, P/N 248113A1

1шт.

2

R56489

LINK

track, left-hand

37шт.

Part of Link Kit, CLT, P/N 248113A1

1шт.

3

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

track pin

38шт.

Part of Link Kit, CLT, P/N 248113A1

1шт.

4

R51131

PIN,33.48mm OD x 183.5mm L

track

38шт.

Part of Link Kit, CLT, P/N 248113A1

1шт.

5

R51132

SPACER

SEAL

76шт.

Part of Link Kit, CLT, P/N 248113A1

1шт.

6

R50830

OIL SEAL

track pin

76шт.

Part of Link Kit, CLT, P/N 248113A1

1шт.

7

R50441

PLUG

track pin

38шт.

Part of Link Kit, CLT, P/N 248113A1

1шт.

R57798

LINK

ASSEMBLY master, right-hand, R56512 chain assembly, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

LINK track, master, with one bolt hole, fits over track pin on outside of regular track link, right-hand

1шт.

9

NSS

NOT SOLD SEPARAT

LINK track, master, with one bolt hole, fits over bushing on inside of regular track link, right-hand

1шт.

R57797

LINK ASSY.

master, left-hand, R56512 chain assembly, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

LINK track, master, with one bolt hole, fits over track pin on outside of regular track link, left-hand, not shown

1шт.

11

NSS

NOT SOLD SEPARAT

LINK track, master, with one bolt hole, fits over bushing on inside of regular track link, left-hand, not shown

1шт.

199941A1

LINK

KIT master, right-hand, 129022A1 chain assembly, Includes: Ref. 13 - 17

1шт.

129019A1

LINK

ASSEMBLY master, right-hand, with two bolt holes

1шт.

13

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, right-hand

1шт.

14

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, right-hand

1шт.

15

R44189

BOLT

special, 83 mm (3-1/4 inch) long

2шт.

16

284195A1

BOLT,9/16" - 18 x 2 7/8"

special, 3-1/16 inch (78 mm) long, Replaces: 133796A1

2шт.

17

178328A3

TAG

installation instructions, Replaces: 178328A2

1шт.

199940A1

LINK

KIT master, left-hand, 129022A1 chain assembly, Includes: Ref. 18 - 22

1шт.

129018A1

LINK ASSY.

master, left-hand, with two bolt holes

1шт.

18

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, left-hand, not shown

1шт.

19

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, left-hand, not shown

1шт.

20

R44189

BOLT

special, 83 mm (3-1/4 inch) long

2шт.

21

284195A1

BOLT,9/16" - 18 x 2 7/8"

special, 3-1/16 inch (78 mm) long, Replaces: 133796A1

2шт.

22

178328A3

TAG

installation instructions, Replaces: 178328A2

1шт.

248113A1

KIT link, CLT, Includes: Ref. No.'s 1, 2, 3 4, 5, 7 and instruction sheet

1шт.

23

135817A1

BOLT,Spher Hex, 9/16" - 18 x 104.20mm

special, 104 mm (4-1/8 inch) long, extended master link, used with self-cleaning track shoes only and 129022A1 chain assembly

2шт.

24

135818A1

BOLT,Spher Hex, 9/16" - 18 x 116.20mm

special, 116 mm (4-9/16 inch) long, extended, master link, used with self-cleaning track shoes only and 129022A1 chain assembly

2шт.

25

REF

INSTRUCTION

SHOE track, see figure 5-14 for track shoe options

76шт.

26

D48004

FLANGE BOLT

hex, standard, special, 9/16 NF x 2-1/32 inch

304шт.

27

R44189

BOLT

special, 83 mm (3-1/4 inch) long, used with self-cleaning track shoes only, 304 used with R56512 chain assembly, 296 used with 129022A1chain assembly

1шт.

28

R57375

SQUARE NUT

square, special, 9/16 NF, not used on master link bolts

296шт.

R56024

SET

KIT pin and bushing, includes instruction sheet, services complete track chain for both sides of tractor, Includes: Ref. 30 - 35

1шт.

Pin and Bushing Kit for lubricated track.

1шт.

30

R51131

PIN,33.48mm OD x 183.5mm L

track

76шт.

Pin and Bushing Kit for lubricated track.

1шт.

31

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

track pin

76шт.

Pin and Bushing Kit for lubricated track.

1шт.

32

R51132

SPACER

SEAL

152шт.

Pin and Bushing Kit for lubricated track.

1шт.

33

R50441

PLUG

track pin

76шт.

Pin and Bushing Kit for lubricated track.

1шт.

34

R50830

OIL SEAL

track pin

152шт.

Pin and Bushing Kit for lubricated track.

1шт.

35

345-140

SEALANT

rubber, Scotch Grip No 847, 1 pint can, not shown

1шт.

Pin and Bushing Kit for lubricated track.

1шт.
