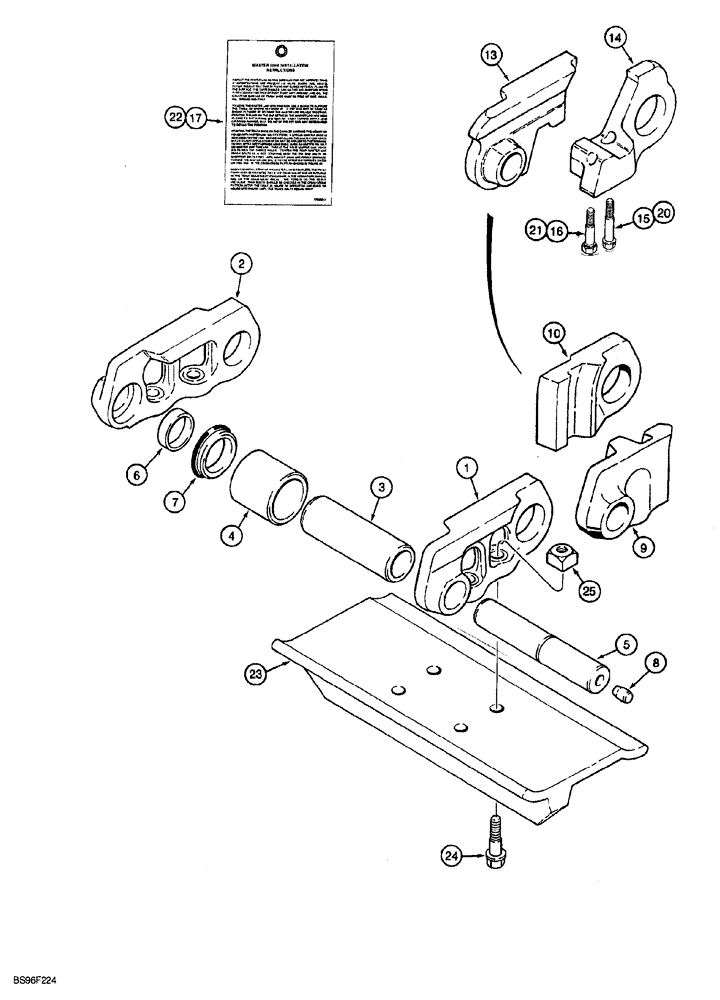

Запчасти Case 850G (5-11C) - EXTENDED LIFE TRACK CHAIN (WITH 9/16 INCH HARDWARE) (04) - UNDERCARRIAGE

114405A1

CHAIN (CE)

track, 38 unit, extended life, master link with one bolt hole, no longer avalilable, order 221808A1 chain assembly, Includes: Ref. 1 - 22

2шт.

The links using 5/8" hardware will be stamped 5/8 or forged CASE L 5/8 & the track shoes will have five holes. Links usng 9/16" hardware will be plain & the track shoes will have four holes. See the illustrations for reference. Track chains are shown on pages 5-10 - 5-13A

1шт.

221808A1

TRACK CHAIN

ASSEMBLY 38 unit, extended life, master link with two bolt holes, Includes: Ref. 1 - 22

2шт.

The links using 5/8" hardware will be stamped 5/8 or forged CASE L 5/8 & the track shoes will have five holes. Links usng 9/16" hardware will be plain & the track shoes will have four holes. See the illustrations for reference. Track chains are shown on pages 5-10 - 5-13A

1шт.

1

R56490

LINK

track, right-hand

37шт.

Part of Link Kit, CELT, P/N 248116A1 with one track link assembly and instruction sheet.

1шт.

2

R56489

LINK

track, left-hand

37шт.

Part of Link Kit, CELT, P/N 248116A1 with one track link assembly and instruction sheet.

1шт.

3

114402A1

BUSHING,33.8mm ID x 53.82mm OD x 109.5mm L

track, pin

38шт.

Part of Link Kit, CELT, P/N 248116A1 with one track link assembly and instruction sheet.

1шт.

4

114400A1

BUSHING

rotating

38шт.

Part of Link Kit, CELT, P/N 248116A1 with one track link assembly and instruction sheet.

1шт.

5

R51131

PIN,33.48mm OD x 183.5mm L

track

38шт.

Part of Link Kit, CELT, P/N 248116A1 with one track link assembly and instruction sheet.

1шт.

6

R51132

SPACER

SEAL

76шт.

Part of Link Kit, CELT, P/N 248116A1 with one track link assembly and instruction sheet.

1шт.

7

R50830

OIL SEAL

track pin

76шт.

Part of Link Kit, CELT, P/N 248116A1 with one track link assembly and instruction sheet.

1шт.

8

R50441

PLUG

track pin

38шт.

Part of Link Kit, CELT, P/N 248116A1 with one track link assembly and instruction sheet.

1шт.

R57798

LINK

ASSEMBLY master, right-hand, 114405A1 chain assembly, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

LINK track, master, with one bolt hole, fits over track pin on outside of regular track link, right-hand

1шт.

10

NSS

NOT SOLD SEPARAT

LINK track, master, with one bolt hole, fits over bushing on inside of regular track link, right-hand

1шт.

R57797

LINK ASSY.

MASTER left-hand, 114405A1 chain assembly, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

LINK track, master, with one bolt hole, fits over track pin on outside of regular track link, left-hand, not shown

1шт.

12

NSS

NOT SOLD SEPARAT

LINK track, master, with one bolt hole, fits over bushing on inside of regular track link, left-hand, not shown

1шт.

199941A1

LINK

KIT master, right-hand, 221808A1 chain assembly, Includes: Ref. 13 - 17

1шт.

129019A1

LINK

ASSEMBLY master, right-hand, with two bolt holes, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, right-hand

1шт.

14

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, right-hand

1шт.

15

R44189

BOLT

special, 83 mm (3-1/4 inch) long

2шт.

16

284195A1

BOLT,9/16" - 18 x 2 7/8"

special, 3-1/16 inch (78 mm) long, Replaces: 133796A1

2шт.

17

178328A3

TAG

installation instructions, Replaces: 178328A2

1шт.

199940A1

LINK

KIT master, left-hand, 221808A1 chain assembly, Includes: Ref. 18 - 22

1шт.

129018A1

LINK ASSY.

master, left-hand, with two bolt holes, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, left-hand, not shown

1шт.

19

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, left-hand, not shown

1шт.

20

R44189

BOLT

special, 83 mm (3-1/4 inch) long

2шт.

21

284195A1

BOLT,9/16" - 18 x 2 7/8"

special, 3-1/16 inch (78 mm) long, Replaces: 133796A1

2шт.

22

178328A3

TAG

installation instructions, Replaces: 178328A2

1шт.

23

REF

INSTRUCTION

SHOE track, see figure 5-14 for track shoe options

76шт.

24

D48004

FLANGE BOLT

hex, special, 9/16 NF x 2-1/32 inch

1шт.

25

R57375

SQUARE NUT

square, special, 9/16 NF

296шт.

26

345-140

SEALANT

rubber, Scotch Grip No 847, 1 pint can, not shown

1шт.

248116A1

KIT link, CELT, Includes: Ref. No.'s 1, 2, 3, 4, 5, 6, 7, 8 and instruction sheet

1шт.
