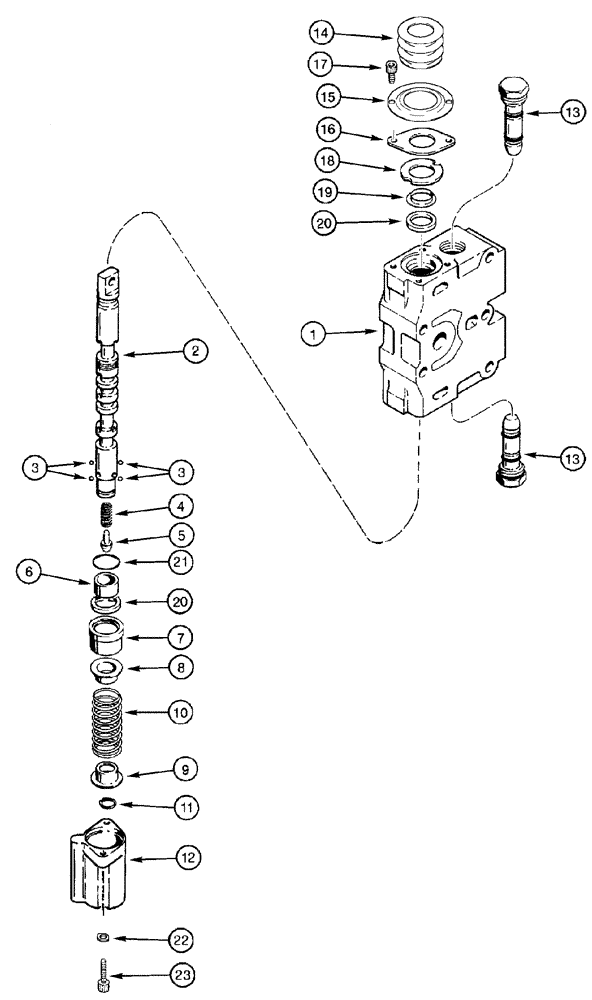

Запчасти Case 850H (08-22) - SECTION ASSEMBLY - LIFT (08) - HYDRAULICS

357161A1

HYD VALVE SECTION

Lift, Consists of: 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

211-1007

BALL,7/32" Dia

Gr 24, CRS

4шт.

4

100848A1

SPRING

1шт.

5

N7035

VALVE POPPET

1шт.

6

S301097

SLEEVE VALVE

Spool

1шт.

7

100847A1

SLEEVE

Detent

1шт.

8

100845A1

COLLAR

Upper

1шт.

9

N7033

SEAT

Lower

1шт.

10

100846A1

SPRING

1шт.

11

100-1162

SNAP RING,#62, Ext

1шт.

12

S301093

CAP

1шт.

13

D87307

VALVE

See figure 8-24

2шт.

352798A1

PACKAGE, REPAIR

Consists of: 14 - 23

1шт.

14

357164A1

BOOT

1шт.

When replacing seals (REF 14 - 23) for the first repair, repair kit 352798A1 should be used since repair items are not all the same as production build.

1шт.

15

357163A1

RETAINER

1шт.

When replacing seals (REF 14 - 23) for the first repair, repair kit 352798A1 should be used since repair items are not all the same as production build.

1шт.

16

N8194

LARGE PLATE

PLATE, LARGE

1шт.

When replacing seals (REF 14 - 23) for the first repair, repair kit 352798A1 should be used since repair items are not all the same as production build.

1шт.

17

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

2шт.

When replacing seals (REF 14 - 23) for the first repair, repair kit 352798A1 should be used since repair items are not all the same as production build.

1шт.

18

D88730

WASHER,0.77" ID x 1.43" OD

1шт.

When replacing seals (REF 14 - 23) for the first repair, repair kit 352798A1 should be used since repair items are not all the same as production build.

1шт.

19

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

1шт.

When replacing seals (REF 14 - 23) for the first repair, repair kit 352798A1 should be used since repair items are not all the same as production build.

1шт.

20

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

When replacing seals (REF 14 - 23) for the first repair, repair kit 352798A1 should be used since repair items are not all the same as production build.

1шт.

21

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

When replacing seals (REF 14 - 23) for the first repair, repair kit 352798A1 should be used since repair items are not all the same as production build.

1шт.

22

357162A1

PLATE

2шт.

When replacing seals (REF 14 - 23) for the first repair, repair kit 352798A1 should be used since repair items are not all the same as production build.

1шт.

23

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

1/4 x 7/8

2шт.

When replacing seals (REF 14 - 23) for the first repair, repair kit 352798A1 should be used since repair items are not all the same as production build.

1шт.
