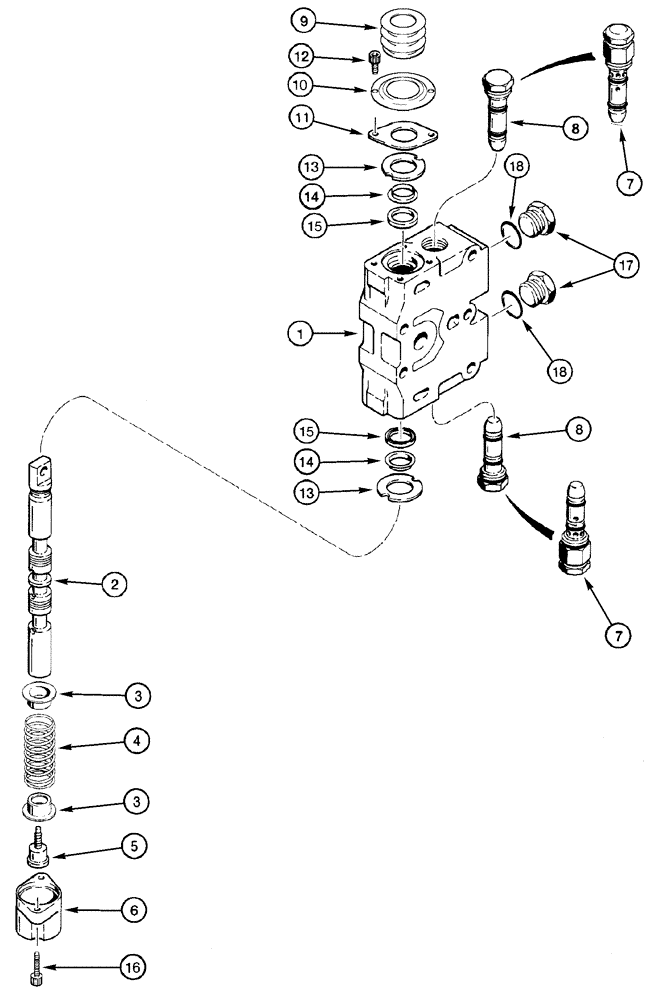

Запчасти Case 850H (08-23) - SECTION ASSEMBLY - TILT, ANGLE, AND AUXILIARY (08) - HYDRAULICS

357166A1

HYD VALVE SECTION

Ripper, Consists of: 1 - 16

1шт.

357165A1

HYD VALVE SECTION

Tilt Control, Angle Control, Consists of: 1 - 16

2шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

H267591

SPRING SEAT

2шт.

4

100854A1

SPRING

1шт.

5

N14593

STEP BOLT

1шт.

6

S301092

FLANGE COVER CAP

1шт.

7

N8950

VALVE

Ripper Section, See figure 8-25

2шт.

8

D87307

VALVE

Tilt and Angle Sections, See figure 8-24

2шт.

352796A1

PACKAGE

Consists Of 9 - 16

1шт.

9

357164A1

BOOT

1шт.

When replacing seals (REF 9 - 16) for the first repair, repair kit 352796A1 should be used since repair items are not all the same as production build.

1шт.

10

357163A1

RETAINER

1шт.

When replacing seals (REF 9 - 16) for the first repair, repair kit 352796A1 should be used since repair items are not all the same as production build.

1шт.

11

N8194

LARGE PLATE

PLATE, LARGE

1шт.

When replacing seals (REF 9 - 16) for the first repair, repair kit 352796A1 should be used since repair items are not all the same as production build.

1шт.

12

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

2шт.

When replacing seals (REF 9 - 16) for the first repair, repair kit 352796A1 should be used since repair items are not all the same as production build.

1шт.

13

D88730

WASHER,0.77" ID x 1.43" OD

2шт.

When replacing seals (REF 9 - 16) for the first repair, repair kit 352796A1 should be used since repair items are not all the same as production build.

1шт.

14

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

2шт.

When replacing seals (REF 9 - 16) for the first repair, repair kit 352796A1 should be used since repair items are not all the same as production build.

1шт.

15

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

When replacing seals (REF 9 - 16) for the first repair, repair kit 352796A1 should be used since repair items are not all the same as production build.

1шт.

16

102201A1

HEX SOC SCREW,1/4" - 20 x 7/8", W/ Nylon Patch

2шт.

When replacing seals (REF 9 - 16) for the first repair, repair kit 352796A1 should be used since repair items are not all the same as production build.

1шт.

17

86512512

PLUG,7/8" - 14 ORB

4 Spool to 3 Spool, If Used, Incl. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
