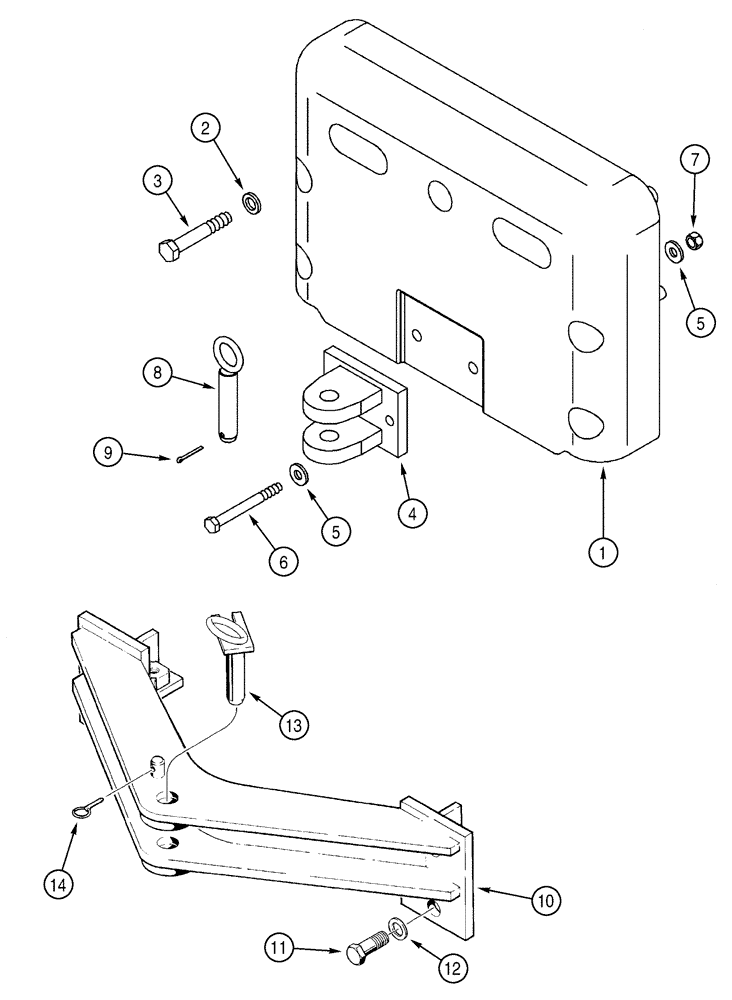

Запчасти Case 850H (09-07) - COUNTERWEIGHTS, REAR - DRAWBAR (09) - CHASSIS

1

338596A1

WEIGHT

900 lb, Rear

1шт.

2

D30196

WASHER

Counterweight

4шт.

3

26-1696

BOLT,Hex, 1" - 8 x 6", Gr 8

1 x 6; 8, Counterweight

4шт.

4

R39904

DRAWBAR

Counterweight

1шт.

5

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

19,8 x 44,5 x 5,6, Counterweight

4шт.

6

326-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

Counterweight

2шт.

7

425-1012

NUT,3/4"-10, G5

Counterweight

2шт.

8

R24105

DRAWBAR

Counterweight

1шт.

9

32-1632

COTTER PIN,1/4" x 2"

Counterweight

1шт.

10

364145A1

DRAWBAR

1шт.

11

107-91640

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

Drawbar

4шт.

12

D30196

WASHER

Drawbar

4шт.

13

R33340

PIN

Drawbar

1шт.

14

A30338

PIN

Drawbar

1шт.
