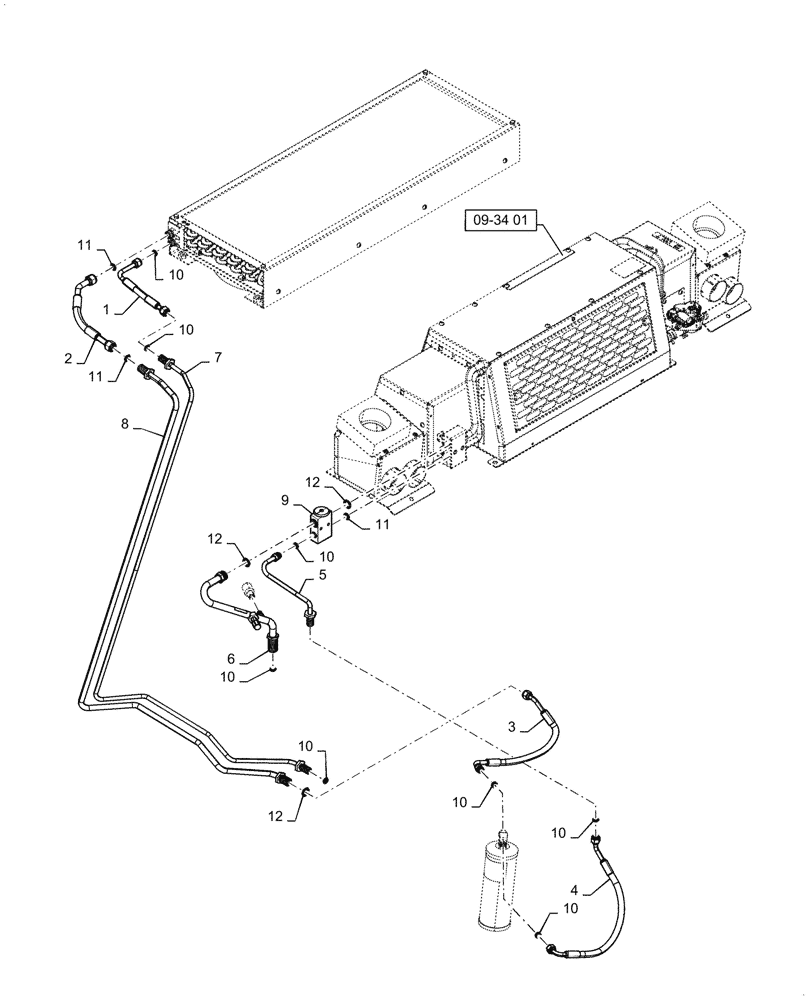

Запчасти Case 850K (09-34[02]) - A/C HOSES, AND EXPANSION VALVE (09) - CHASSIS/ATTACHMENTS

1

87586971

HOSE ASSY.,9.53mm ID x 178.05mm L

Low Pressure, Condenser

1шт.

2

87586972

A/C HOSE

Condenser to Bulkhead

1шт.

3

87586973

HOSE ASSY.

Bulkhead to Drier

1шт.

4

87586974

HOSE ASSY.

Drier to Bulkhead

1шт.

5

87586975

TUBE,.375" OD

Bulkhead to Expansion Valve, Lower

1шт.

6

87586976

TUBE,.625" OD

Bulkhead to Expansion Valve, Upper

1шт.

7

87586977

TUBE,.375" OD

Lower Bulkhead to Upper Bulkhead

1шт.

8

87586978

TUBE,.5" OD

1шт.

9

87586952

VALVE

Expansion

1шт.

10

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

8шт.

11

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

3шт.

12

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

3шт.
