(2-14) - OIL PUMP AND OIL PAN, 6-590 ENGINE, 6T-590 ENGINE

Запчасти Case 855D (2-14) - OIL PUMP AND OIL PAN, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

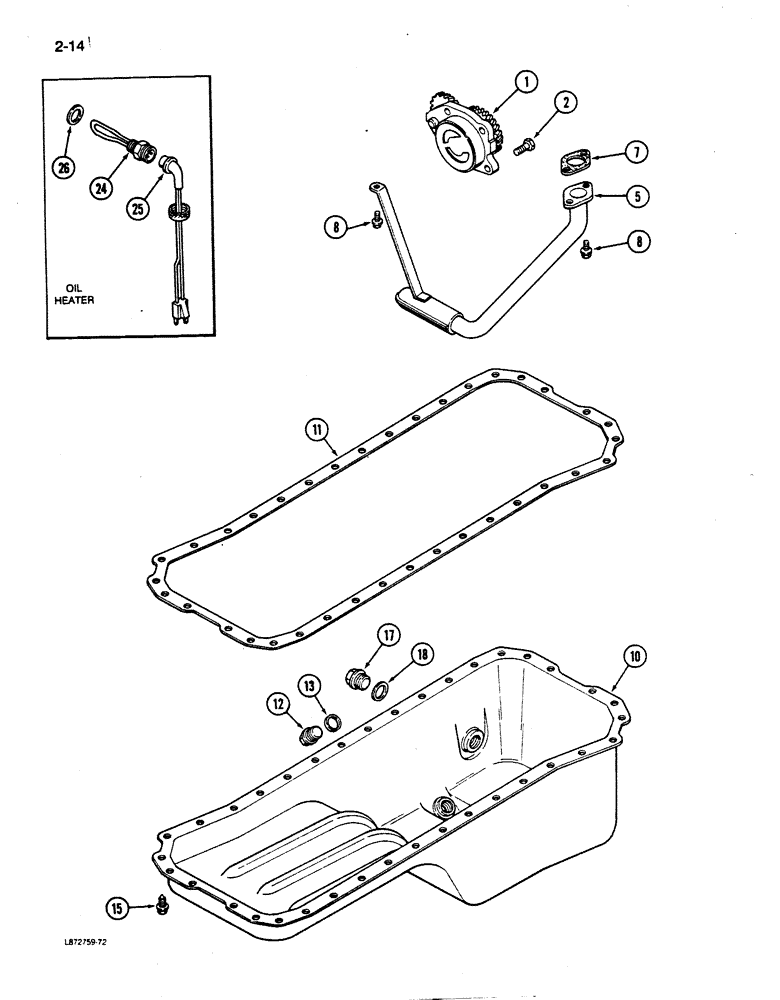

Схема запчастей Case 855D - (2-14) - OIL PUMP AND OIL PAN, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE
12
2
25
26
8
24
5
13
7
10
1
18
11
17
8
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

JR906414

REMAN-ENG OIL PUMP

(North America Only); Prior to engine SN 44511034

1шт.

JC906414

CORE-HYDRAULIC PUMP

(Use this number to return pump core for credit); Prior to engine SN 44511034

1шт.

JR918212

REMAN-ENG OIL PUMP

(North America Only); engine SN 44511034 and after

1шт.

JC918212

CORE-HYDRAULIC PUMP

(Use this number to return pump core for credit); engien SN 44511034 and after

1шт.

1

J914006

PUMP, ENGINE OIL

Prior To Engine SN 44511034

1шт.

1

J918212

PUMP, ENGINE OIL

engine SN 44511034 And After

1шт.

JR941742

REMAN-ENG OIL PUMP

Remanufactured Oil Pump; For N.A. only

1шт.

JC926203

CORE-ENGINE OIL PUMP

Return number - For N.A. only

1шт.

2

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Engine S/N 44511034 and after

4шт.

5

J909373

TUBE

oil suction, engine SN 44511034 And After

1шт.

6

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

Engine S/N 44511034 and after

1шт.

7

J914383

GASKET

mounting, tube (Replaces J905468), engine SN 44511034 And After

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

Engine S/N 44511034 and after

3шт.

10

J915703

PAN, ENGINE OIL

SN 44511034 And After

1шт.

11

A77676

GASKET KIT

(Order A77670)(NSS), engine SN 44511034 And After

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

12

J911638

PLUG,M18 x 1.5

drain, oil, magnetic (Replaces J900215), engine SN 44511034 And After

1шт.

13

J900216

PACKING RING

drain plug, engine SN 44511034 And After

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

M18 x 16, Engine S/N 44511034 and after

36шт.

17

J904386

PLUG

pipe, engine SN 44511034 And After

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seal, plug, engine SN 44511034 And After

1шт.

A77676

GASKET KIT

oil pan, Replaces A77492, Includes: Ref. 7, 11, 13, engine SN 44511034 And After

1шт.

A77490

KIT

heater, engine oil, Includes: Ref. 24 & 25

1шт.

24

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77490), engine oil

1шт.

25

J905113

CABLE

engine block heater, oil heater

1шт.

26

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seal, plug, engine oil heater

1шт.
