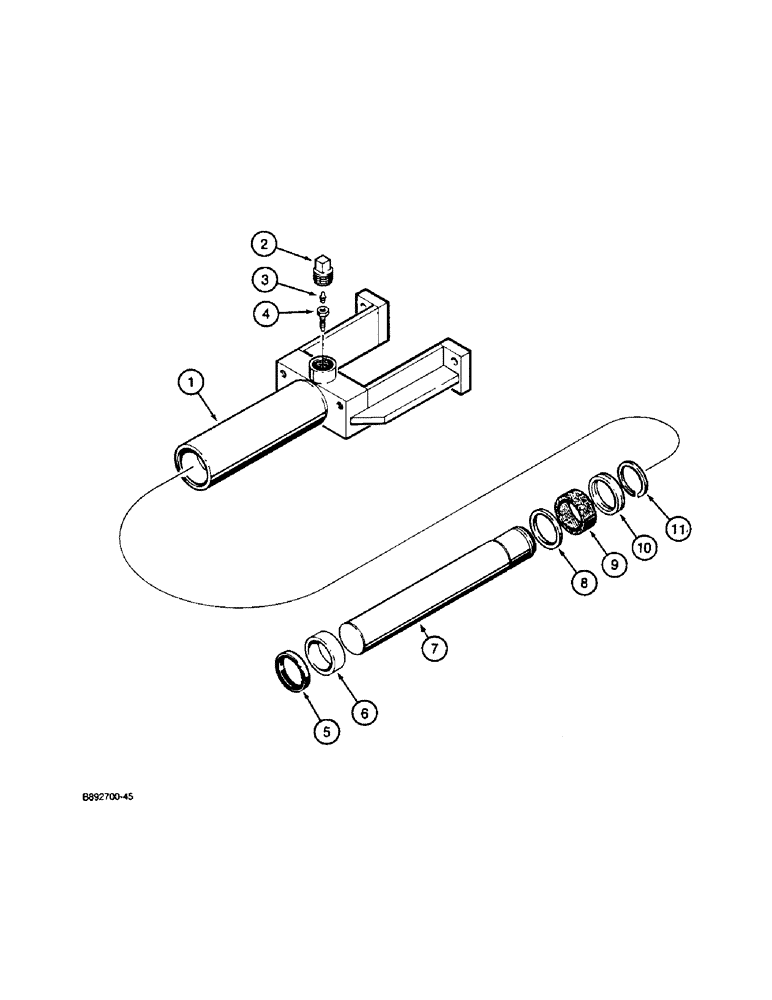

Запчасти Case 650 (5-06) - TRACK ADJUSTER ASSEMBLY (11) - TRACKS/STEERING

R57098

SADDLE ASSY.

ADJUSTER ASSEMBLY - track, Includes: Ref. 1 - 11

2шт.

1

R31976

YOKE

- track adjuster

1шт.

2

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

4

D35287

CHECK VALVE,5/8" - 18

- check, track adjuster

1шт.

5

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

WIPER - piston

1шт.

6

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

BUSHING - piston, recoil housing end

1шт.

7

R57099

PISTON

- track adjuster

1шт.

8

R30202

RING,54.101mm ID x 65.1mm OD x 5.08mm Thk

- backup, bushing

1шт.

9

R25663

BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L

BUSHING - piston, yoke end

1шт.

10

R25706

SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk

- U-cup, piston

1шт.

11

A32413

SNAP RING,#212, 1.997", Ext

RING - retaining, piston

1шт.
