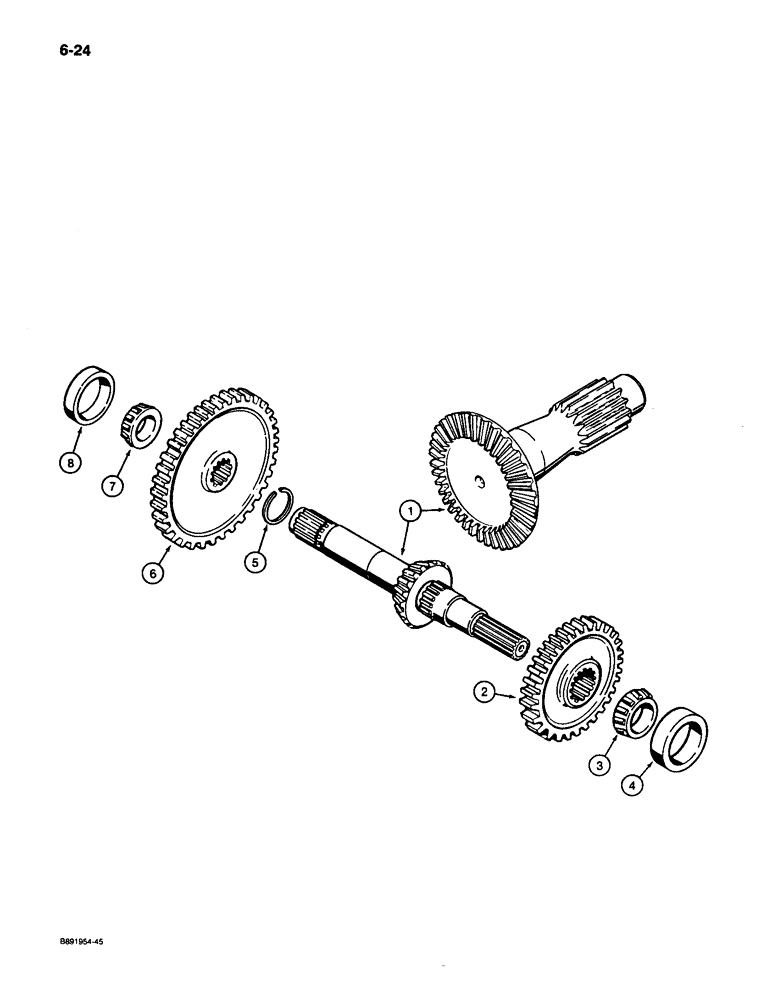

Запчасти Case 650 (6-24) - TRANSMISSION BEVEL PINION SHAFT AND GEAR (06) - POWER TRAIN

1

G110536

GEAR-SET

SHAFT - includes bevel pinion gear, matched set

2шт.

2

1981357C1

PINION

GEAR - driven, high clutch, 43 teeth, front

2шт.

3

A31264

ROLLER BEARING,1.625" ID x 1"

BEARING - tapered roller, high clutch gear, front

2шт.

4

ST973

TAPERED BEARING,1.688" ID x 3.126" OD x 0.9515"

CUP - tapered roller bearing, front

2шт.

5

A27085

RING

- snap, low clutch gear

2шт.

6

G103778

GEAR

- driven, low clutch, 51 teeth, rear

2шт.

7

A26719

ROLLER BEARING,38.1mm ID x 20.64mm W

BEARING - tapered roller, low clutch gear, rear

2шт.

8

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - tapered roller bearing, rear

2шт.
