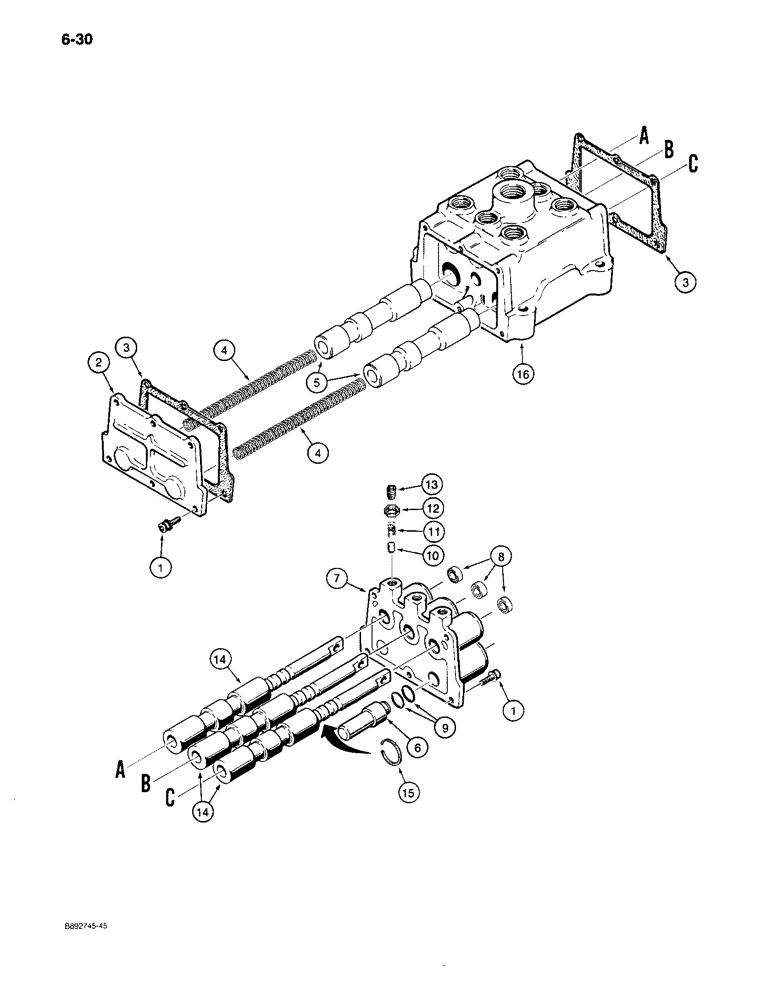

Запчасти Case 650 (6-30) - THREE SPOOL VALVE ASSEMBLY (06) - POWER TRAIN

1343750C1

VALVE

ASSEMBLY - transmission control, Includes: Ref. 1 - 16

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW - cap, socket, with external tooth lock washer, 1/4 NF x 2-5/8 inch

11шт.

2

R21384

COVER

- rear

1шт.

3

35665

GASKET

- covers

2шт.

4

1986517C1

SPRING

- clutch cutout spool

2шт.

5

G106650

SPOOL

- clutch cutout

2шт.

6

G105434

PISTON

- clutch cutout

2шт.

1343694C1

COVER

ASSEMBLY - front, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

8

G105700

OIL SEAL

- shift spool, double lip

3шт.

9

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Clutch cutout piston -114, 70 Duro, .612" ID x .103" Thk

4шт.

10

71120

VALVE

POPPET - spool detent

3шт.

11

71119

SPRING

- poppet, detent

3шт.

12

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

NUT - hex, self-locking, 3/8"-16 NC

3шт.

13

G104208

SET SCREW

SCREW - set, hex socket, oval point, 3/8 NC x 1/2 inch, sealant coated

3шт.

14

G107659

ROD

SPOOL ASSEMBLY - shift, Includes: Ref. 15

3шт.

15

G107637

RING, SNAP

RING - retaining, shift spool

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.
