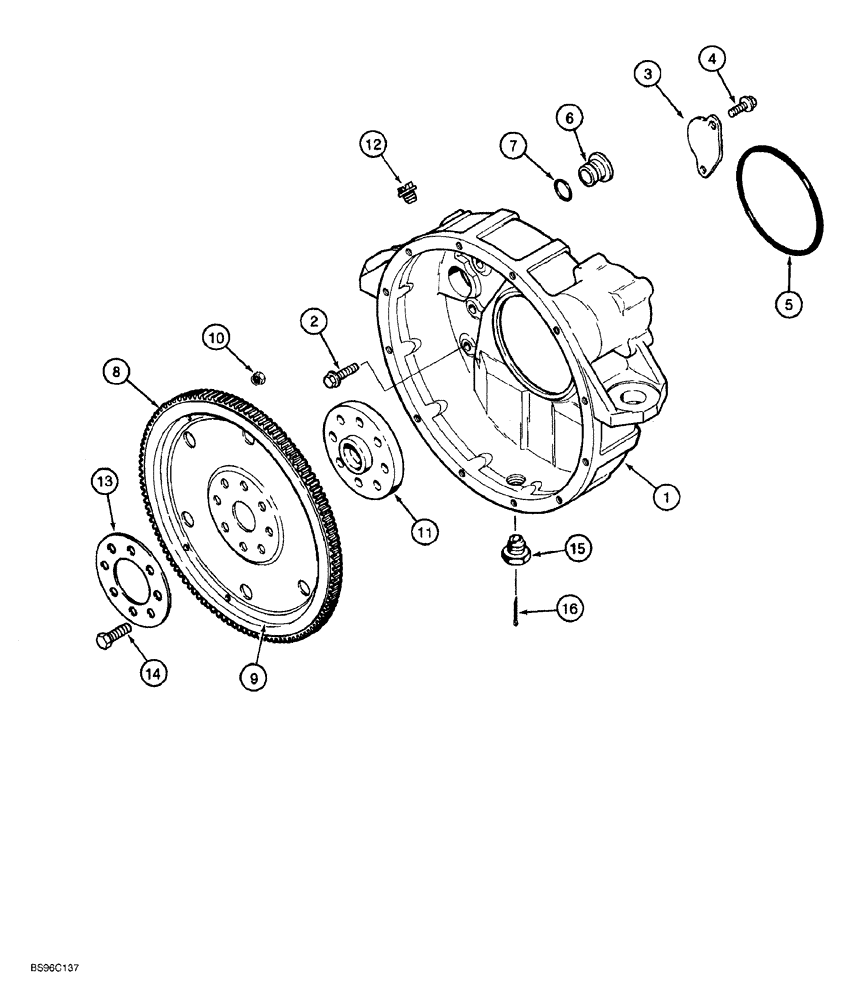

Запчасти Case 650G (2-44) - FLYWHEEL AND HOUSING 4T-390 ENGINE PRIOR TO CRAWLER P.I.N. JJG0216449 (02) - ENGINE

1

J903287

CASE

HOUSING flywheel, no longer available, order J931714, see Fig. 2-45A

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

3

J908095

PLATE

cover

1шт.

4

J902735

BOLT,M8 - 1.25 x 21 mm

hex flange, self tapping, 8 - 1.25 x 21 mm, plate retaining

2шт.

5

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

6

J910248

PLUG

flywheel housing

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

J934937

FLYWHEEL

PLATE ASSEMBLY, flex, replaces J922595, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR ring, flywheel

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE flex

1шт.

10

NSS

NOT SOLD SEPARAT

NUT sealing

6шт.

11

J913689

FLANGE

ADAPTER crankshaft

1шт.

12

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

13

J904361

WASHER

RING clamping

1шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

15

L113178

PLUG

BUSHING reducer, 3/4 inch PT, order separately, not included with engine

1шт.

16

32-1416

COTTER PIN,7/32" x 1"

Order separately, not included with engine

1шт.
