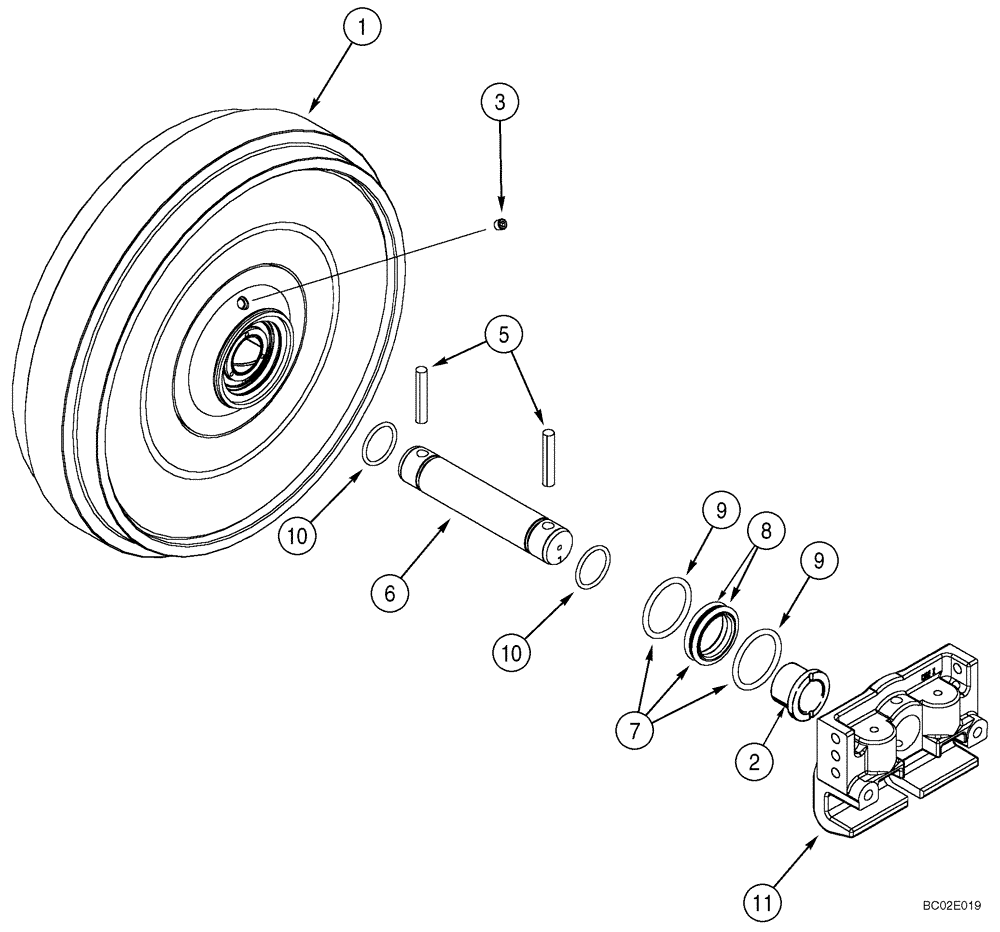

Запчасти Case 650K (05-06) - TRACK IDLER (11) - TRACKS/STEERING

389164A2

FRONT IDLER

Incl. Ref 1 - 11

2шт.

1

NSS

NOT SOLD SEPARAT

Hub; Incl. Ref 2; Order 427241A1

1шт.

2

389168A1

BUSHING

2шт.

3

R33557

PLUG

1шт.

5

R58807

GROOVED PIN,1/2" x 2 3/4", Type A, Hardened

2шт.

6

R58706

SHAFT

1шт.

7

R33607

SEAL

Incl. Ref 8, 9

2шт.

8

NSS

NOT SOLD SEPARAT

Seal; Order R33607

2шт.

9

N6847

O-RING,75mm ID x 8mm Width

Face Seal

2шт.

10

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

2шт.

11

389174A2

BRACKET

2шт.
