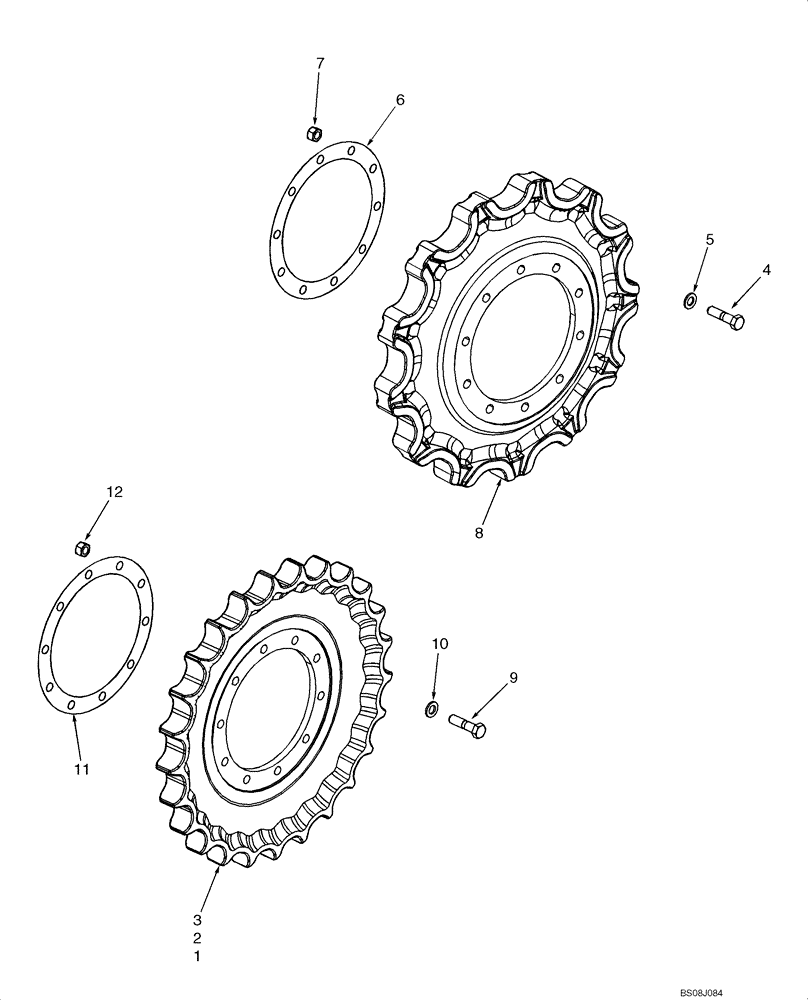

Запчасти Case 650L (48.130.03) - SPROCKET, TRACK (48) - TRACKS & TRACK SUSPENSION

1

84146539

SPROCKET,282mm ID x 651mm OD x 76mm Thk

Driving, 25T; Standard Case Lubricated Track (CLT), 54/56 Gauge

2шт.

LT Models Only

1шт.

2

84146541

SPROCKET,282mm ID x 651mm OD x 60mm Thk

Driving, 25T; Low Ground Pressure (LGP) Case Lubricated Track (CLT), 65/67 Gauge

2шт.

WT/LGP Models Only

1шт.

3

84146542

SPROCKET,282mm ID x 667mm OD

Driving, 13T; Narrow, Case Extended Life Track (CELT), 54/56 Gauge

2шт.

LT Models Only

1шт.

4

R27954

BOLT

20шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

20шт.

6

404152A1

SHIM

6шт.

7

29-1012

NUT,3/4"-10, G8

20шт.

8

84146543

SPROCKET

Driving, 13T; Wide Track (WT), Case Extended Life Track (CELT), 65/67 Gauge

2шт.

9

R27954

BOLT

20шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

20шт.

11

404152A1

SHIM

6шт.

12

29-1012

NUT,3/4"-10, G8

20шт.
