(55.514.01) - LAMPS, ROPS CANOPY

Запчасти Case 650L (55.514.01) - LAMPS, ROPS CANOPY (55) - ELECTRICAL SYSTEMS

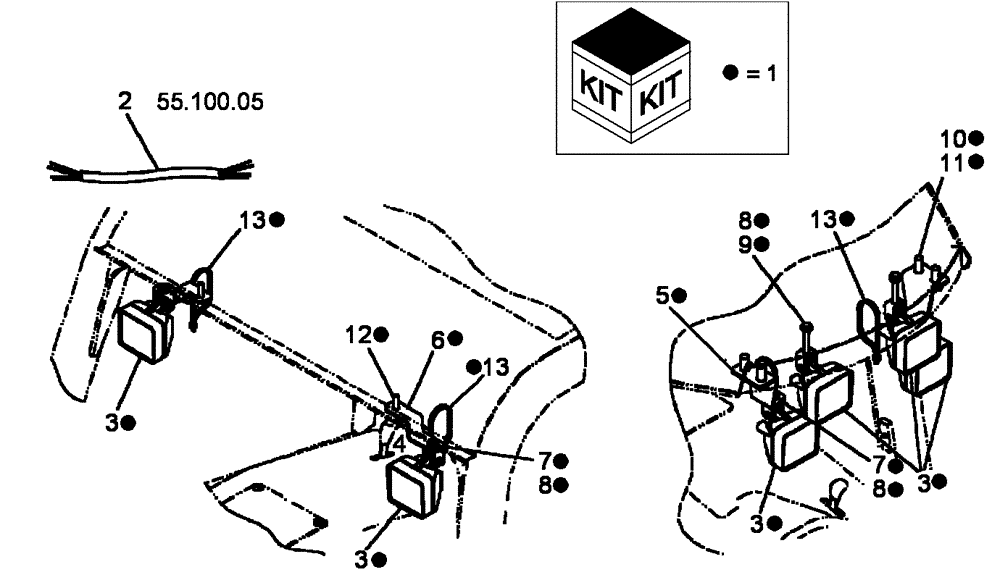

Схема запчастей Case 650L - (55.514.01) - LAMPS, ROPS CANOPY (55) - ELECTRICAL SYSTEMS
1
13
1
1
8
8
1
4
1
3
13
1
1
1
3
1
1
3
1
8
7
1
10
11
9
1
3
55.100.05(01)
6
1
1
12
7
1
1
1
1
5
1
2
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84212020

LIGHT

Inc. 3-12

1шт.

2

87685391

HARNESS

Canopy Lamp

1шт.

3

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

12V, 55W; Front and Rear Flood and Work Lamps; Includes 1312210C2 Heavy Duty H-3 Bulb; (2 Front/1Rear)

6шт.

3

47682620

WORK LAMP,Flood, LED, 12V

LAMP, WORK, LED

6шт.

4

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, Heavy Duty H-3 (Not Shown)

1шт.

5

87563197

BRACKET

Front Lamp Bracket

2шт.

6

87693641

BRACKET

Rear Lamp Bracket

2шт.

7

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

4шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

9

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

10

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

11

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

12

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.
