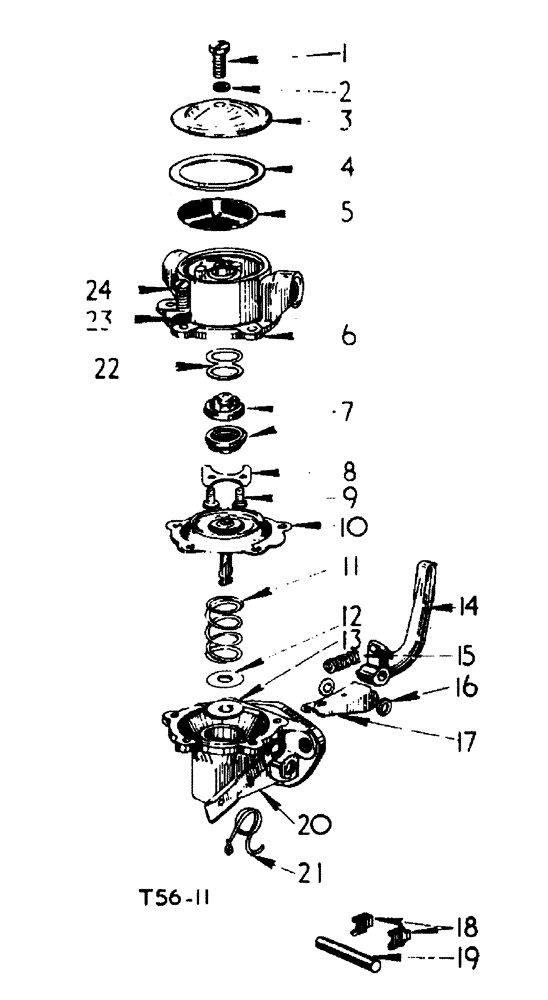

Запчасти Case 500 (12-128) - FUEL FEED PUMP PETROL ENGINE No Description

3044197R92

PUMP

fuel feed, CPTE., 2, 4, 5, 7-10, 12, 13, 15-19, and 22

1шт.

1

702953R1

SCREW

head

1шт.

2

3044511R1

GASKET

head screw, 2, 4, 5, 7-10, 12, 13, 15-19, and 22

1шт.

3

3044512R1

COVER

filter

1шт.

4

3044518R1

GASKET

filter, 2, 4, 5, 7-10, 12, 13, 15-19, and 22

1шт.

5

3044513R1

FILTER SCREEN

filter, 2, 4, 5, 7-10, 12, 13, 15-19, and 22

1шт.

6

3105122R91

COVER

ASSY.

1шт.

7

702959R91

VALVE

ASSY., 2, 4, 5, 7-10, 12, 13, 15-19, and 22

1шт.

8

702960R1

RETAINER

valve, 2, 4, 5, 7-10, 12, 13, 15-19, and 22

1шт.

9

702961R1

SCREW

SPARE PART valve retaining, 2, 4, 5, 7-10, 12, 13, 15-19, and 22

2шт.

10

708953R91

DIAPHRAGM

ASSY., 2, 4, 5, 7-10, 12, 13, 15-19, and 22

1шт.

11

3047235R1

SPARE PART diaphragm

1шт.

12

3072671R1

WASHER

oil seal, metal, 2, 4, 5, 7-10, 12, 13, 15-19, and 22

1шт.

13

3072672R1

SEALING WASHER

2, 4, 5, 7-10, 12, 13, 15-19, and 22

1шт.

14

3044517R1

ARM

rocker

1шт.

15

708956R1

SPRING

rocker arm, 2, 4, 5, 7-10, 12, 13, 15-19, and 22

1шт.

16

708957R1

WASHER

rocker arm, 2, 4, 5, 7-10, 12, 13, 15-19, and 22

2шт.

17

708963R1

LINK

2, 4, 5, 7-10, 12, 13, 15-19, and 22

1шт.

18

3044516R1

RETAINER

rocker arm pin, 2, 4, 5, 7-10, 12, 13, 15-19, and 22

2шт.

19

3044515R1

PIN

rocker arm, 2, 4, 5, 7-10, 12, 13, 15-19, and 22

1шт.

20

3044519R91

COVER ASSY

BODY and HAND PRIMER, set

1шт.

21

3044520R1

SPRING

priming lever

1шт.

22

3065032R1

SPARE PART valve, 2, 4, 5, 7-10, 12, 13, 15-19, and 22

1шт.

23

NSS

NOT SOLD SEPARAT

not used

1шт.

24

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

cover, no. 10 UNF x 3/8

1шт.

3063872R1

BOLT

12 point ring, 5/16 x 3/4, not illustrated

2шт.

3046381R92

REPAIR KIT

less rocker arms, consists of Ref. 2, 4, 5, 7-10, 12, 13, 15-19, and 22, and parts used in old assemblies, not illustrated

1шт.

702951R1

SPARE PART pin, 702951R1, 702958R1, 3061658R1, 702950R1, 702960, 702961R1, and 708958R1, and parts used in old assemblies not illustrated

2шт.

702958R1

GASKET

SPARE PART valve, 702951R1, 702958R1, 3061658R1, 702950R1, 702960, 702961R1, and 708958R1, and parts used in old assemblies not illustrated

1шт.

3061658R1

GASKET

pad, 702951R1, 702958R1, 3061658R1, 702950R1, 702960, 702961R1, and 708958R1, and parts used in old assemblies not illustrated

1шт.

702950R1

SPARE PART rocker arm, 702951R1, 702958R1, 3061658R1, 702950R1, 702960, 702961R1, and 708958R1, and parts used in old assemblies not illustrated

1шт.

702960R1

RETAINER

valve, 702951R1, 702958R1, 3061658R1, 702950R1, 702960, 702961R1, and 708958R1, and parts used in old assemblies not illustrated

1шт.

702961R1

SCREW

SPARE PART retainer, 702951R1, 702958R1, 3061658R1, 702950R1, 702960, 702961R1, and 708958R1, and parts used in old assemblies not illustrated

1шт.

708958R1

WASHER

metal oil seal, 702951R1, 702958R1, 3061658R1, 702950R1, 702960, 702961R1, and 708958R1, and parts used in old assemblies not illustrated

1шт.

708959R1

WASHER

fabric oil seal, 702951R1, 702958R1, 3061658R1, 702950R1, 702960, 702961R1, and 708958R1, and parts used in old assemblies not illustrated

1шт.

3046382R91

PACKAGE

first aid repair BD-4, as required, not illustrated

1шт.

3044458R1

PRIMER PAINT

SET, primer parts, not illustrated

1шт.

3043370R1

GASKET

feed pump, not illustrated

1шт.

3061658R1

GASKET

feed pump, not illustrated

1шт.
