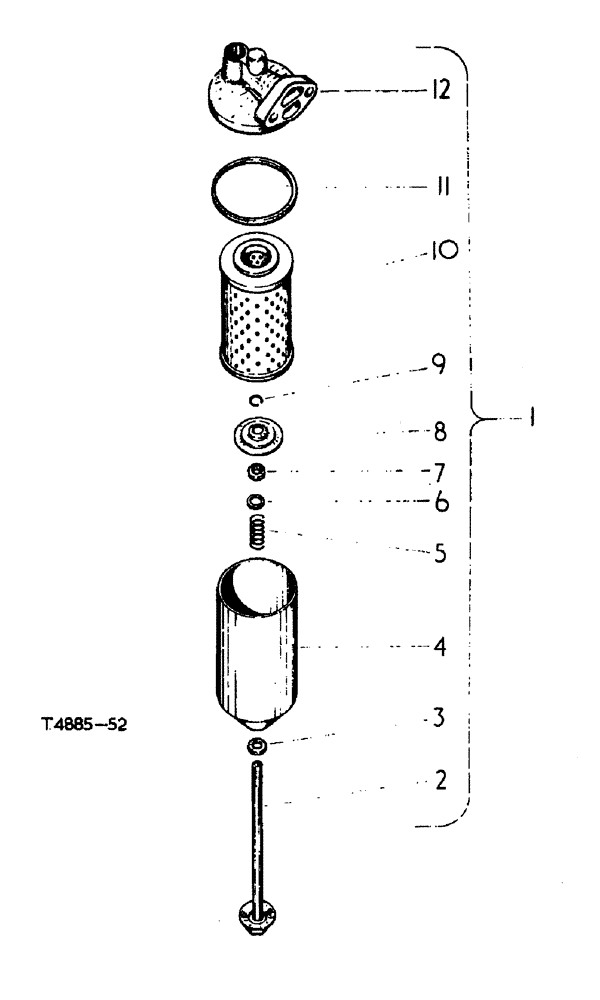

Запчасти Case 500 (12-140) - LUBRICATING OIL FILTER DIESEL ENGINE 500/568 UP No Description

1

3042420R92

FILTER

OIL ASSY., TECALEMIT

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

2

3069976R91

BOLT

center

1шт.

3

3042425R1

WASHER

center bolt sealing

1шт.

4

3043289R1

BODY

container

1шт.

5

3043291R1

SPRING

pressure plate

1шт.

6

3043292R1

WASHER

spring, pressure plate

1шт.

7

3042428R1

WASHER

felt

1шт.

8

3043293R91

LARGE PLATE

PLATE, LARGE ASSY., pressure

1шт.

9

3065965R1

RING

center bolt retaining, used w/grooved center bolt

1шт.

10

3043283R92

INSERT

PACKAGE, element service w/plate 3043315R1, ring 3042423R1, and ring

1шт.

NSS

NOT SOLD SEPARAT

707859R1, OPT w/3110452R91

1шт.

3043315R1

PLATE

adaptor

2шт.

3110452R91

ENGINE OIL FILTER

ELEMENT, FILTER w/seal 3067728R91, and seal 707859R1

1шт.

10

3066852R91

FILTER, ELEMENT

ELEMENT, FILTER PACKAGE, element w/3 seals 3067728R91, and 707859R1, as required

1шт.

11

3042423R1

SEALING WASHER

RING sealing

1шт.

12

3069975R91

HEAD

ASSY., filter

1шт.
