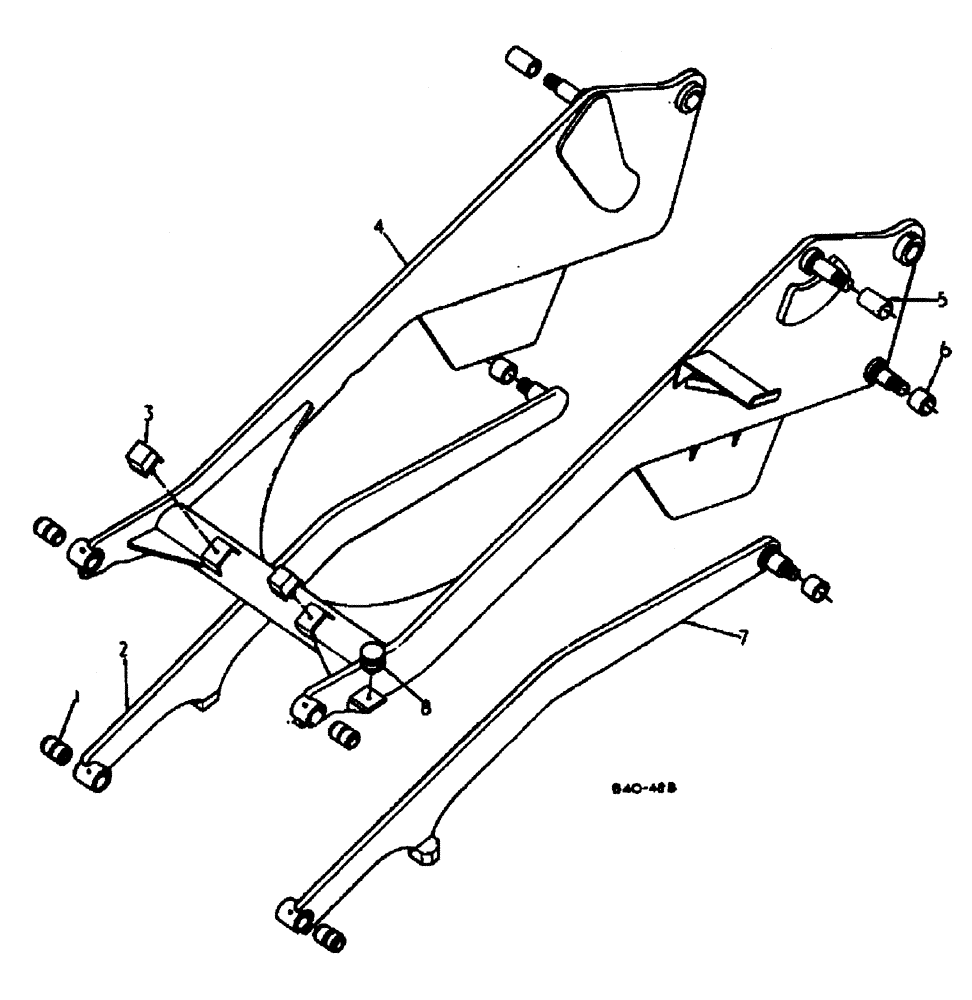

Запчасти Case 500 (17-006) - HIGH LIFT BOOM ATTACHMENT No Description

1

124233H1

BUSHING

SPARE PART

4шт.

2

3114609R1

SPARE PART CPTE. bucket R.H., w/bushing 124233H1, and sleeve 895130H1

1шт.

3

152578H1

BUMPER

BUCKET ROLL BACK

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065 )

2шт.

4

3114596R92

BOOM

high lift CPTE.

1шт.

NSS

NOT SOLD SEPARAT

BOOM

1шт.

124233H1

BUSHING

SPARE PART

2шт.

895130H1

BUSHING

SLEEVE

2шт.

895129H1

SLEEVE

2шт.

5

895129H1

SLEEVE

2шт.

6

895130H1

BUSHING

SLEEVE

2шт.

7

3114608R1

SPARE PART CPTE. bucket L.H. w/bushing 124233H1, and sleeve 895130H1

1шт.

8

3114605R1

DASHPOT

STOP

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065 )

2шт.
