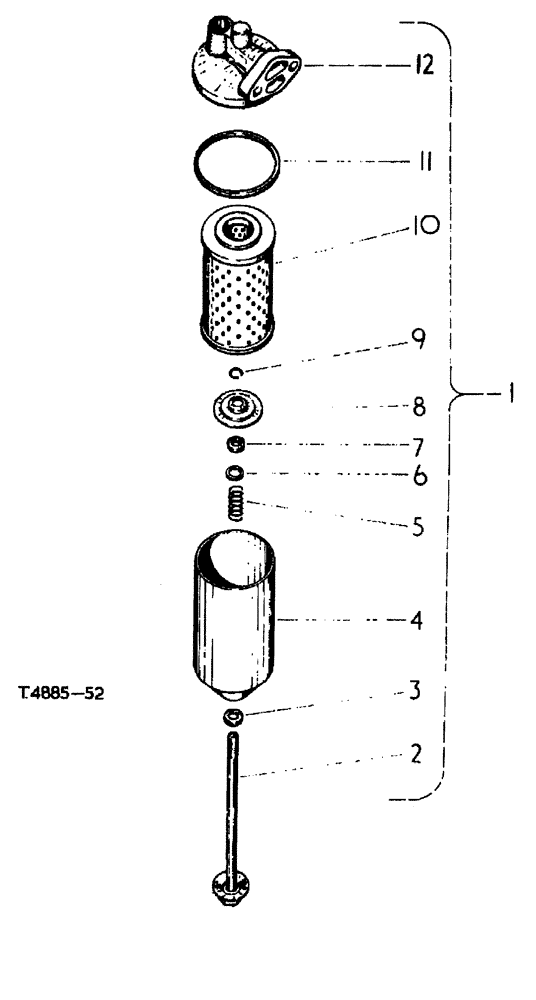

Запчасти Case 500 (12-088) - LUBRICATING OIL FILTER DIESEL ENGINE500/568 UP No Description

1

3042420R92

FILTER

OIL ASSY. TELCALEMIT

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

2

3069976R91

BOLT

CENTER ASSY.

1шт.

3

3042425R1

WASHER

center bolt sealing

1шт.

4

3043289R1

BODY

CONTAINER

1шт.

5

3043291R1

SPRING

pressure plate

1шт.

6

3043292R1

WASHER

pressure plate, spring

1шт.

7

3042428R1

WASHER

felt

1шт.

8

3043293R91

LARGE PLATE

PLATE, LARGE PRESSURE ASSY.

1шт.

9

3065965R1

RING

center bolt retaining

1шт.

10

3043283R92

INSERT

PACKAGE element, serviced w/plate 3043315R1, ring 3042423R1, and ring 707859R1 opt. w/3110452R91

1шт.

3043315R1

PLATE

adaptor

2шт.

3110452R91

ENGINE OIL FILTER

ELEMENT, FILTER w/seal 3067728R91, and seal 707859R1

1шт.

10

3066852R91

FILTER, ELEMENT

ELEMENT, FILTER PACKAGE element w/3 seal 3067728R91, as required

1шт.

11

3042423R1

SEALING WASHER

RING sealing

1шт.

12

3069975R91

HEAD

FILTER ASSY.

1шт.
