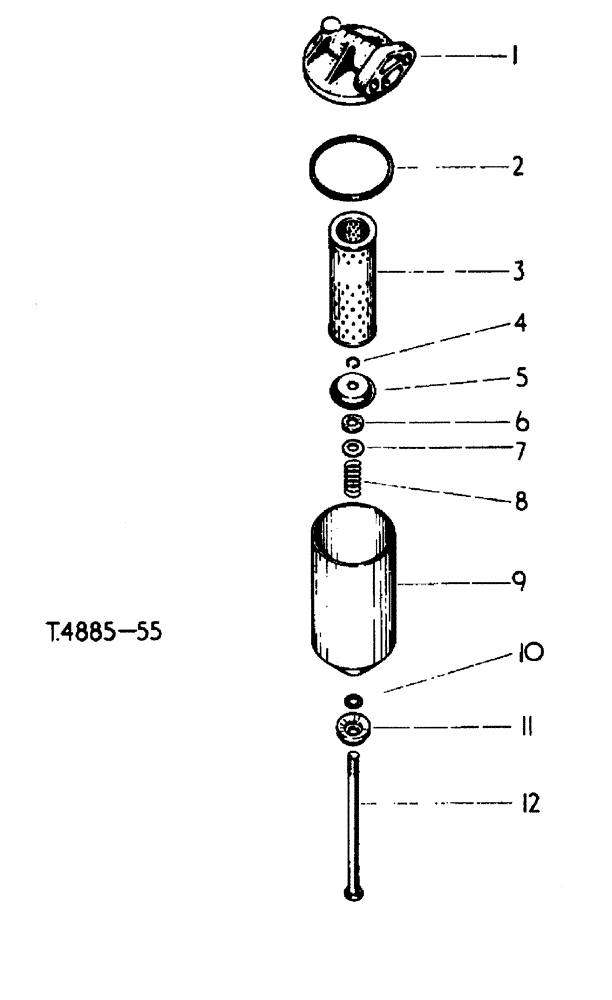

Запчасти Case 500 (12-090) - LUBRICATING OIL FILTER DIESEL ENGINE 500/568 UP No Description

1

3066851R91

FILTER

LUBRICATING OIL ASSY. purolator

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

3069113R91

HEAD

ASSY.

1шт.

2

707859R1

SEALING RING

head

1шт.

3

3043283R92

INSERT

PACKAGE, element OPT w/plate 3043315R1, ring 3042423R1, and ring 707859R1

1шт.

3110452R91

ENGINE OIL FILTER

ELEMENT, FILTER OPT w/seal 3067728R91, and seal 707859R1

1шт.

3043315R1

PLATE

adaptor

2шт.

3066852R91

FILTER, ELEMENT

ELEMENT, FILTER PACKAGE, w/3 seal 3067728R91, and 707859R1, as required

1шт.

4

707869R1

RETAINER

RING

1шт.

3

3069108R1

GUIDE

element

1шт.

6

3069109R1

WASHER

1шт.

7

3069114R1

WASHER

1шт.

8

703789R1

SPRING

1шт.

9

3069111R91

SUMP

ASSY.

1шт.

10

707863R1

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

1шт.

11

707862R1

DISC

COLLAR

1шт.

12

3069112R1

BOLT

center

1шт.
