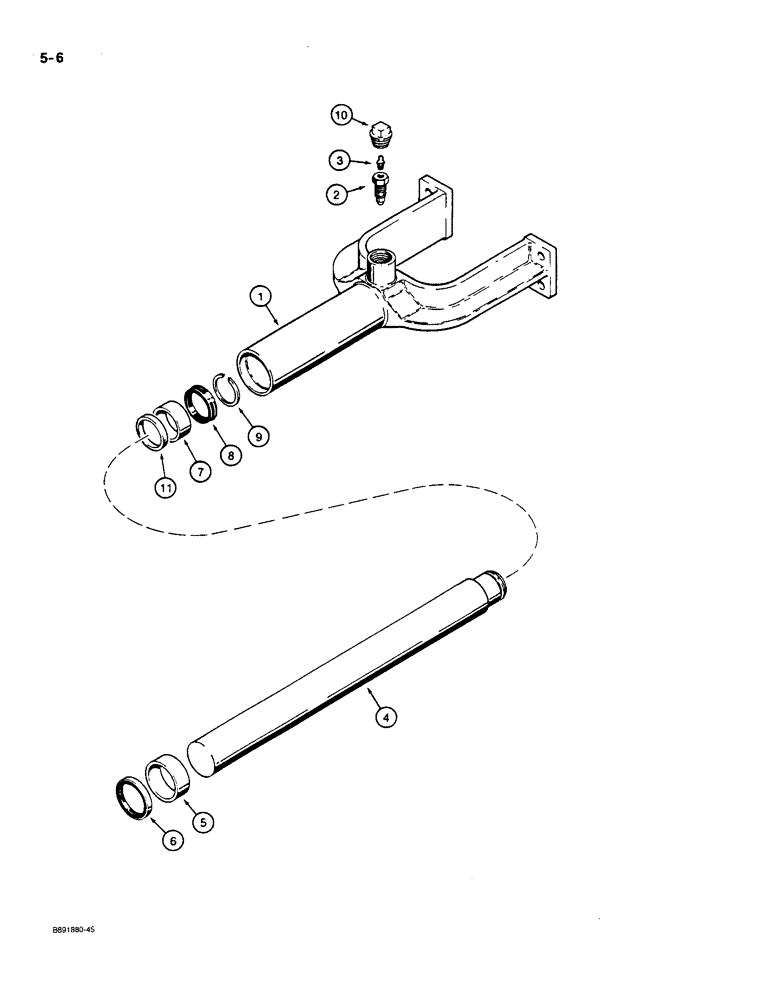

Запчасти Case 550 (5-06) - TRACK ADJUSTER ASSEMBLY (11) - TRACKS/STEERING

R54459

ADJUSTER

ASSEMBLY - track, yoke, Includes: Ref. 1 - 11, Serial Range: -JAK0013968

2шт.

R57442

YOKE

ADJUSTER ASSEMBLY - track, yoke, Includes: Ref. 1 - 11, Start Serial: JAK0013968

2шт.

1

R42184

YOKE

- cylinder

1шт.

2

D35287

CHECK VALVE,5/8" - 18

- check, track adjuster

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

4

R54460

PISTON

- track adjuster, 20 inch long, R54459 adjuster

1шт.

4

R57443

PISTON

- track adjuster, 18-5/8 inch long, R57442 adjuster

1шт.

5

D35503

RING,50.7mm ID x 60.35mm OD x 22.23mm Thk

BUSHING - piston, recoil housing end

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston

1шт.

7

D37289

BUSHING,44.35mm ID x 53.92mm OD x 19.05mm L

- piston, yoke end

1шт.

8

D95382

SEAL,44.27mm ID x 54.05mm OD x 10.69mm Thk

- U-cup, piston

1шт.

9

A27085

RING

- retaining, piston

1шт.

10

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

11

R51794

PISTON RING,Square, 5.1mm Thk x 44.46mm ID

RING - backup, bushing

1шт.
