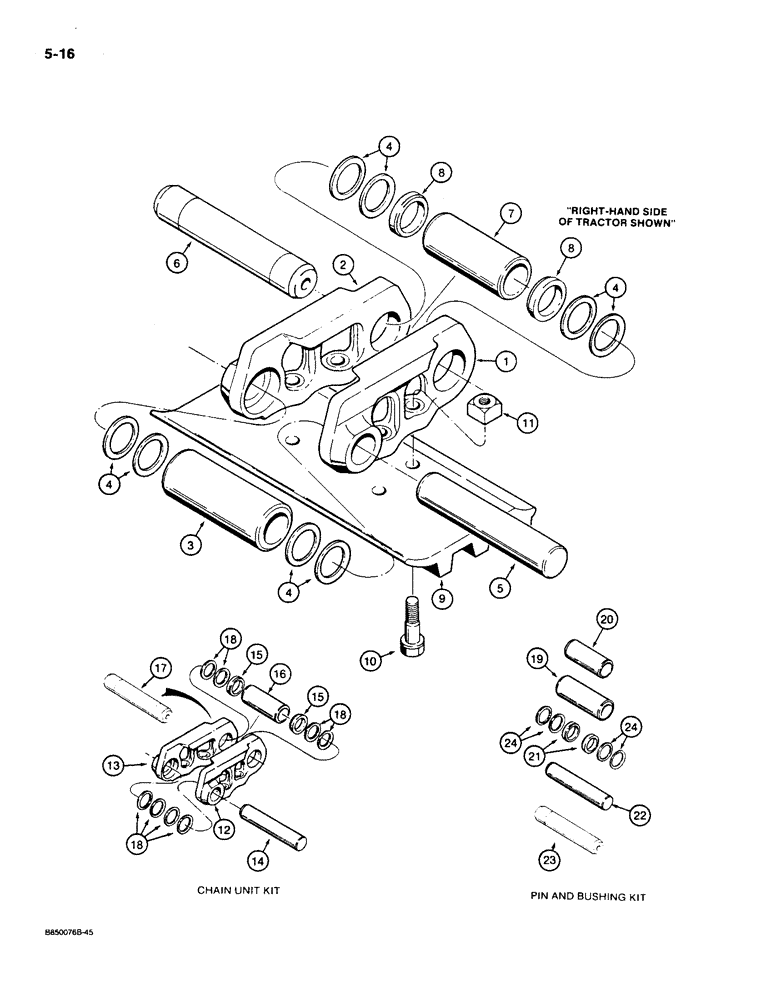

Запчасти Case 550 (5-16) - SEALED TRACK CHAIN, IF USED, PRIOR TO P.I.N. JAK0013968 (11) - TRACKS/STEERING

R56722

CHAIN (CE)

CHAIN ASSEMBLY - 39 unit, 53 inch gauge long track models

2шт.

1

R52284

LINK

- track, right-hand

39шт.

2

R52285

LINK

- track, left-hand

39шт.

3

R52286

BUSHING

-standard pin, 4-5/8 inch long

38шт.

4

R52291

SEAL

SPRING - Belleville, bushing

156шт.

5

R52288

PIN

- standard, 1-1/8 inch (29 mm) diameter

38шт.

6

R53993

PIN - master, order oversized R54280 pin, Ref. 23 below

1шт.

7

R52287

BUSHING

- master pin, 4 inch long

1шт.

8

R52290

SPACER

- master bushing

2шт.

9

REF

INSTRUCTION

SHOE - track, see Figures 5-24 and 5-26 for options

78шт.

10

R24688

FLANGE BOLT

BOLT - special, 1/2 - 20 NF 1.56 inch, used with all track shoes except self-cleaning track shoes, see Figure 5-24

312шт.

11

R24578

NUT

- square, special, 1/2 inch NF

312шт.

R53370

SEGMENT

KIT - chain unit, includes instruction sheet, (includes standard and master track pins)

1шт.

12

R52284

LINK

- track, right-hand, chain unit kit (includes standard and master track pins)

1шт.

13

R52285

LINK

- track, left-hand, chain unit kit (includes standard and master track pins)

1шт.

14

R52288

PIN

- track, standard, chain unit kit (includes standard and master track pins)

2шт.

15

R52290

SPACER

- bushing, used with master pin, chain unit kit (includes standard and master track pins)

2шт.

16

R52287

BUSHING

- master pin, 4 inch long, chain unit kit (includes standard and master track pins)

1шт.

17

R53993

PIN - master, order oversized R54280 pin, Ref. 23 below, chain unit kit (includes standard and master track pins)

1шт.

18

R52291

SEAL

SPRING - Belleville, bushing, chain unit kit (includes standard and master track pins)

8шт.

R56726

SPLIT PIN/SAFETY PIN

KIT - pin and bushing, includes instruction sheet, services, chain unit kit (includes standard and master track pins) complete track chain for both sides of tractor, pin and bushing kit

1шт.

19

R52286

BUSHING

- standard pin, 4-5/8 inch long, pin and bushing kit

76шт.

20

R52287

BUSHING

- master pin, 4 inch long, pin and bushing kit

2шт.

21

R52290

SPACER

- master bushing, pin and bushing kit

4шт.

22

R52288

PIN

- standard, pin and bushing kit

76шт.

23

R54280

PIN,28.24mm OD x 164mm L

- master, 0.08 mm oversized, pin and bushing kit

2шт.

24

R52291

SEAL

SPRING - Belleville, bushing, pin and bushing kit

312шт.
