(4-20) - MAIN WIRING HARNESS

Запчасти Case 550 (4-20) - MAIN WIRING HARNESS (04) - ELECTRICAL SYSTEMS

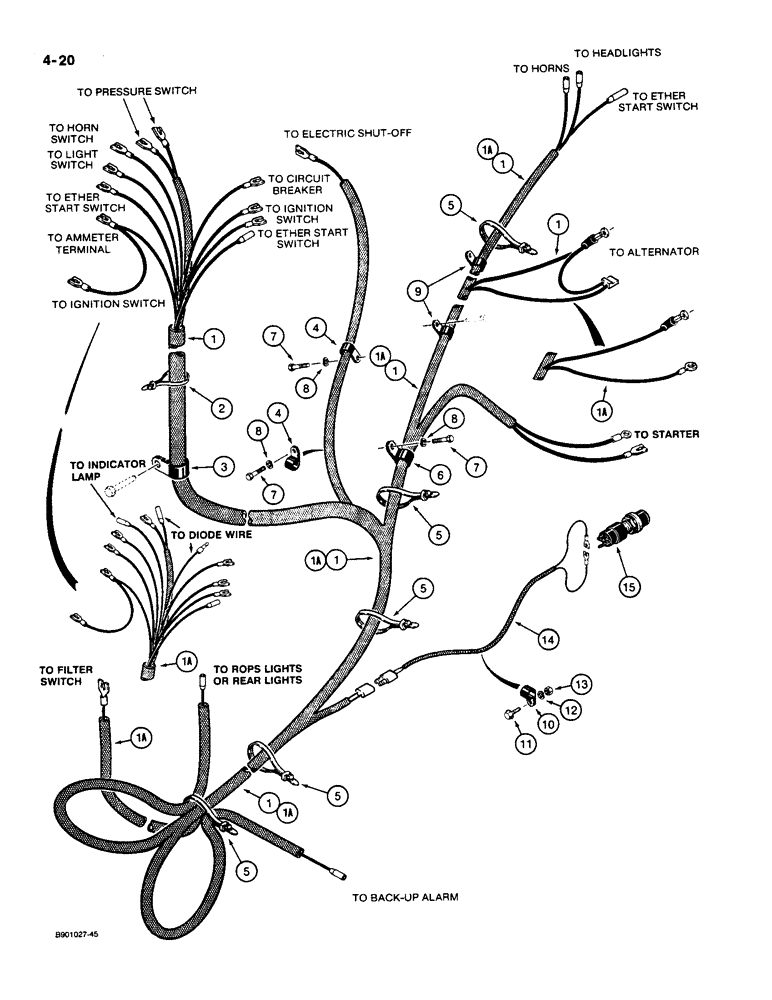

Схема запчастей Case 550 - (4-20) - MAIN WIRING HARNESS (04) - ELECTRICAL SYSTEMS
5
1
1
8
1
15
1
8
4
1a
1
1
4
5
1a
5
1a
8
1a
1a
7
10
11
2
14
12
3
9
7
6
7
1a
5
1a
5
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R50989

HARNESS

- main wiring, Serial Range: -JAK0013968

1шт.

1a

R57618

HARNESS

- main wiring, Start Serial: JAK0013968

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

D40471

CLAMP

- harness to firewall, uses throttle cross shaft mounting hardware

1шт.

4

S79579

CLAMP

- harness, to rear and left-hand side of engine

2шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon hydraulic lines

1шт.

6

84183C1

CLAMP

- harness, below starter on jump start decal plate

1шт.

7

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

3шт.

8

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm

3шт.

9

49838

CLAMP

- harness, uses engine oil filter hardware

2шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- starter switch wire to heel plate

1шт.

11

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

D39130

ELECTRICAL WIRE

WIRE - to starter switch

1шт.

15

S241920

SWITCH

- starter, push button

1шт.

16

B17425

LOCTITE

SEALANT - pipe threads, with Teflon, Loctite No. 92, 50 ml tube, use to seal S241920 switch (Ref. 15), not shown

1шт.
