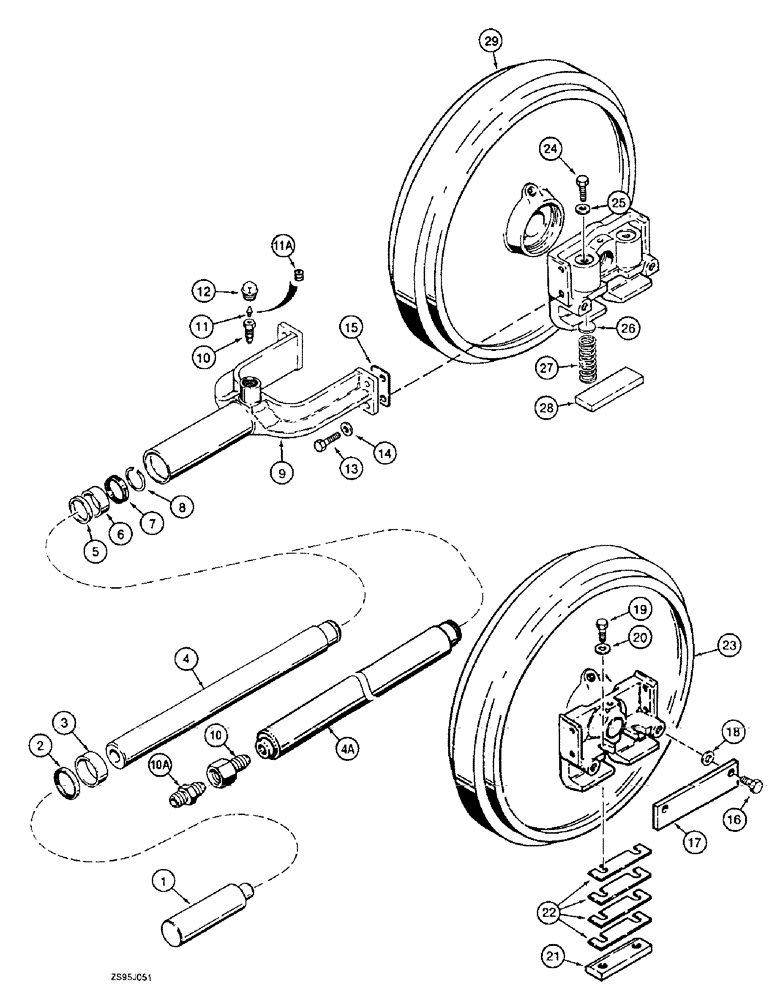

Запчасти Case 550E (5-04) - TRACK ADJUSTER AND IDLER MOUNTING (11) - TRACKS/STEERING

1

R58451

SPACER

- piston, used on steel track models

2шт.

1

125061A1

TUBE,39.7 mm ID, 54 mm OD

SPACER - piston, used on rubber track models, not shown

2шт.

R58480

FORK

ADJUSTER ASSEMBLY - track, used on steel track models

2шт.

125636A1

CYLINDER ASSY.

ADJUSTER ASSEMBLY - track, used on rubber track models

2шт.

2

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Track Adjuster Seal Kit P/N 103729A1

1шт.

3

D35503

RING,50.7mm ID x 60.35mm OD x 22.23mm Thk

BUSHING - piston, recoil housing end

1шт.

Part of Track Adjuster Seal Kit P/N 103729A1

1шт.

4

R58450

PISTON

- track adjuster, used on steel track models

1шт.

4a

125110A1

PISTON

- track adjuster, used on rubber track models

1шт.

5

R51794

PISTON RING,Square, 5.1mm Thk x 44.46mm ID

RING - backup

1шт.

Part of Track Adjuster Seal Kit P/N 103729A1

1шт.

6

D37289

BUSHING,44.35mm ID x 53.92mm OD x 19.05mm L

- piston yoke end

1шт.

Part of Track Adjuster Seal Kit P/N 103729A1

1шт.

7

D95382

SEAL,44.27mm ID x 54.05mm OD x 10.69mm Thk

- U-cup, piston

1шт.

Part of Track Adjuster Seal Kit P/N 103729A1

1шт.

8

A27085

RING

- retaining

1шт.

Part of Track Adjuster Seal Kit P/N 103729A1

1шт.

9

R42184

YOKE

- track adjuster

1шт.

10

D35287

CHECK VALVE,5/8" - 18

- check, track adjuster

1шт.

10a

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight 1/2-20 flare, track adjuster

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, used on steel track only

1шт.

11a

217-428

PLUG,Hex Soc, 1/8" - 27 NPTF

Used on rubber tracks only Hex Soc, 1/8"-27, Brass

1шт.

12

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

(Replaces 217-532) Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

217-532 IS IN SEVERAL CRAWLER CATALOGS AS A PLUG THAT GOES OVER A GREASE ZERK IN THE TRACK ADJUSTER, THESE ARE CATALOG ERRORS. THE 217-532 IS A SOLID PLUG. CORRECT PART IS 221-29 HOLLOW CORE PLUG.

1шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

15

R37875

SHIM,0.813mm Thk

(.032"), Idler bracket to adjuster 0.813mm Thk

1шт.

16

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

17

R49772

LARGE PLATE

PLATE - idler guide

4шт.

18

D44330

SHIM,.031" Thk

(21/32" ID x 1-1/4" OD), Idler guide plate .031" Thk

1шт.

19

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, LGP 64 inch gauge models

8шт.

20

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, LGP 64 inch gauge models

8шт.

21

R52401

LARGE PLATE

BLOCK - idler support, LGP 64 inch gauge models

4шт.

22

R52406

SHIM,0.81mm Thk

Support block, LGP 64 inch gauge models 0.81mm Thk

1шт.

23

R52404

STEERING IDLER

IDLER ASSEMBLY - track, parts list Figure 5-06, replaced by R58710 idler assembly, see Figure 5-06, and 144392A2 idler kit, see below, LGP 64 inch gauge models

2шт.

24

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

LGP 64 inch gauge models Hex, 3/8"-16 x 7/8", G5, Full Thd

8шт.

Part of Idler Kit P/N 144392A2

1шт.

25

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), LGP 64 inch gauge models 3/8"

8шт.

Part of Idler Kit P/N 144392A2

1шт.

26

R33245

SPRING SEAT

SEAT - spring, LGP 64 inch gauge models

8шт.

Part of Idler Kit P/N 144392A2

1шт.

27

188866A1

SHOCK ABSORBER

SPRING - recoil, LGP 64 inch gauge models

8шт.

Part of Idler Kit P/N 144392A2

1шт.

28

R58720

LARGE PLATE

PLATE - track wear, LGP 64 inch gauge models

4шт.

Part of Idler Kit P/N 144392A2

1шт.

29

R58710

FRONT IDLER

IDLER ASSEMBLY - track, parts list figure 5-6., LGP 64 inch gauge models

2шт.

103729A1

KIT

- repair, track adjuster seal, Includes: Ref. 2, 3 and 5-8, LGP 64 inch gauge models

1шт.

144392A2

KIT

- idler, Includes: Ref. 24-28, LGP 64 inch gauge models

1шт.

144392A2 IDLER KIT HAS HAS WEAR BARS AND SHIMS WITH 17 1/8" HOLE SPACING. 297032A1 IDLER KIT HAS WEAR BARS AND SHIMS WITH 15.4" HOLE SPACING.

1шт.
