(5-12) - SEALED TRACK CHAIN, IF USED

Запчасти Case 550E (5-12) - SEALED TRACK CHAIN, IF USED (11) - TRACKS/STEERING

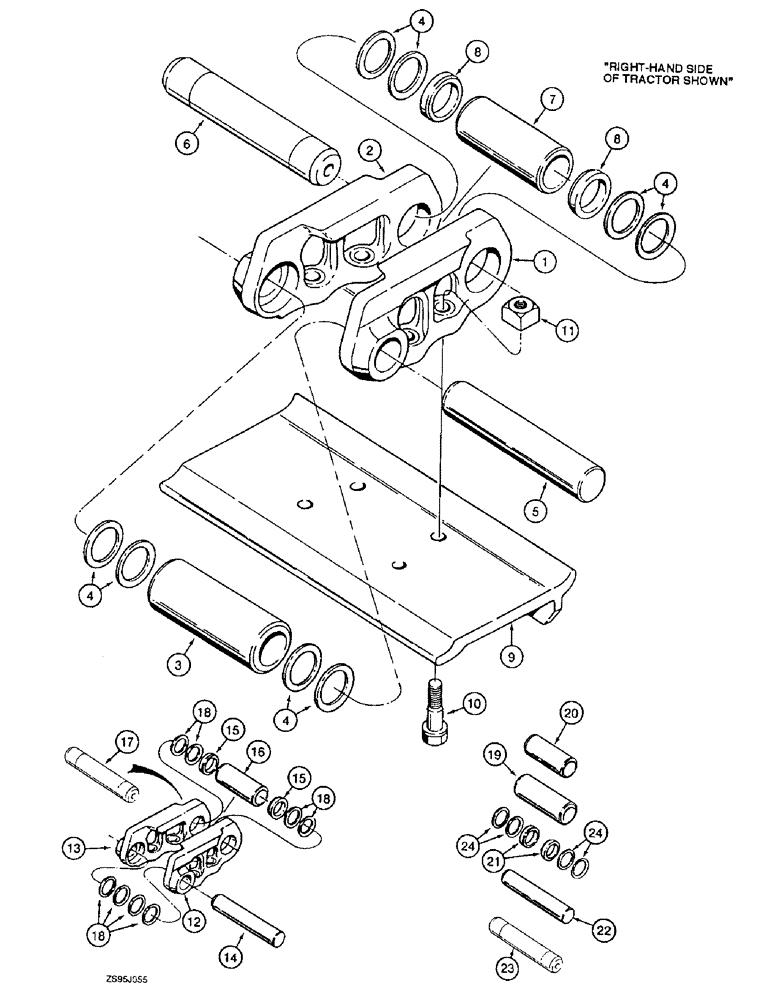

Схема запчастей Case 550E - (5-12) - SEALED TRACK CHAIN, IF USED (11) - TRACKS/STEERING
2
14
15
21
22
8
7
19
13
4
12
24
16
17
18
8
24
23
1
5
6
15
18
3
4
11
9
20
4
4
18
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R57371

CHAIN (CE)

CHAIN ASSEMBLY - 37 unit

2шт.

1

R57404

CHAIN LINK

LINK, CHAIN, Track, RH

37шт.

2

R57403

CHAIN LINK

LINK, CHAIN, Track, LH

37шт.

3

R57378

BUSHING

- link, 4-3/4 inch long

36шт.

4

R52291

SEAL

- Belleville spring

148шт.

5

R57367

PIN

- 1-1/8 inch (29 mm) diameter

36шт.

6

R57366

PIN,28.24mm OD x 167mm L

- master link, order oversized R57412 pin (ref. 23)

1шт.

7

R57379

BUSHING

- master link, 4 inch long

1шт.

8

R57411

SPACER

- master bushing

2шт.

9

R57417

PLATE

SHOE - track, closed center, single grouser,16 inch (406 mm)

74шт.

10

R57374

BOLT

BOLT - hex, special, 9/16 NF x 1-25/32 inch

296шт.

11

R57375

SQUARE NUT

- square, special, 9/16 inch NF

296шт.

R57414

CHAIN (AG)

KIT - chain unit, includes instruction sheet, (includes standard and master track pins)

1шт.

12

R57404

CHAIN LINK

LINK, CHAIN, RH, Unit kit (Incl. standard and master track pins)

1шт.

13

R57403

CHAIN LINK

LINK, CHAIN, Track, LH, Unit Kit (Incl. standard and master track pins)

1шт.

14

R57367

PIN

- 1-1/8 inch (29 mm) diameter, standard, chain unit kit (includes standard and master track pins)

2шт.

15

R57411

SPACER

- master bushing, used with master pin, chain unit kit (includes standard and master track pins)

2шт.

16

R57379

BUSHING

- master link, 4 inch long, chain unit kit (includes standard and master track pin)

1шт.

17

R57366

PIN,28.24mm OD x 167mm L

- master link, order oversized R57412 pin (ref. 23), chain unit kit (includes standard and master track pins)

1шт.

18

R52291

SEAL

- Belleville spring, bushing, chain unit kit (includes standard and master track pins)

8шт.

R57413

PIN

KIT - pin and bushing, includes instruction sheet, services complete track chain for both sides of tractor

1шт.

19

R57378

BUSHING

- link, 4-3/4 inch long, pin kit

72шт.

20

R57379

BUSHING

- master link, 4 inch long, pin kit

2шт.

21

R57411

SPACER

- master bushing and pin kit

4шт.

22

R57367

PIN

- 1-1/8 inch (29 mm) diameter, pin and bushing kit

72шт.

23

R57412

PIN

- Master, 0.08 inch oversized, pin and bushing kit

2шт.

24

R52291

SEAL

- Belleville spring, bushing and pin kit

296шт.
