(5-16) - CASE LUBRICATED TRACK CHAIN, IF USED, EACH MASTER LINK HAS TWO BOLT HOLES

Запчасти Case 550E (5-16) - CASE LUBRICATED TRACK CHAIN, IF USED, EACH MASTER LINK HAS TWO BOLT HOLES (11) - TRACKS/STEERING

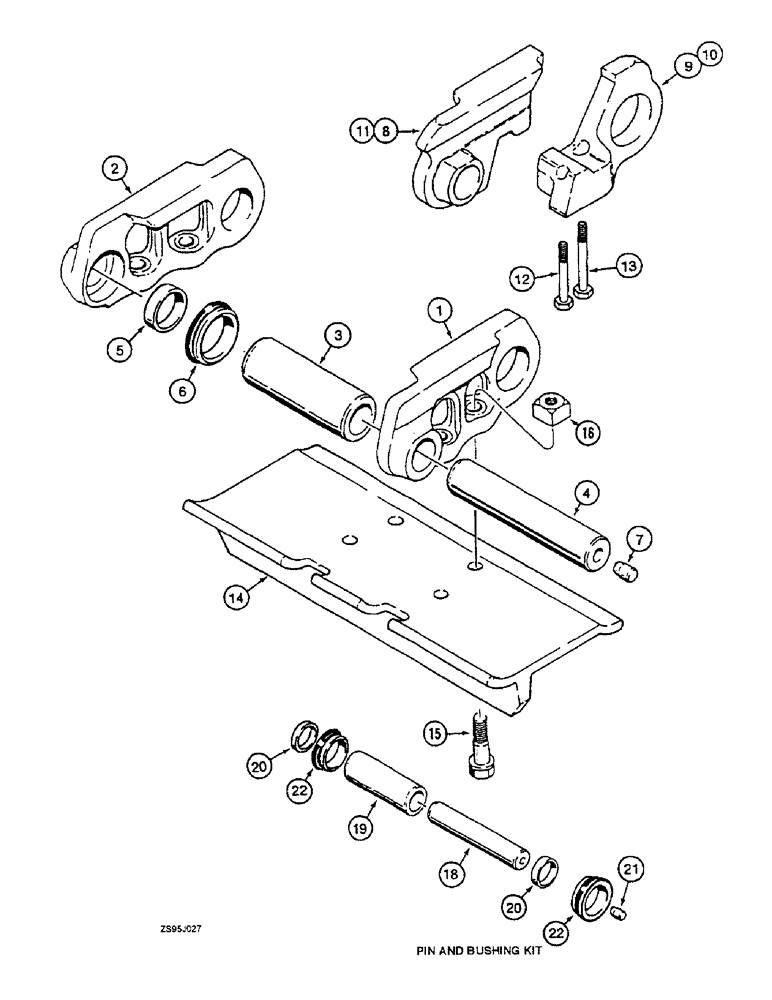

Схема запчастей Case 550E - (5-16) - CASE LUBRICATED TRACK CHAIN, IF USED, EACH MASTER LINK HAS TWO BOLT HOLES (11) - TRACKS/STEERING
22
16
11
6
19
2
4
20
18
21
20
3
10
8
22
15
12
13
1
9
7
14
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

130345A1

TRACK CHAIN

CHAIN ASSEMBLY - 37 unit

2шт.

1

R57404

CHAIN LINK

LINK, CHAIN, Track, RH

36шт.

2

R57403

CHAIN LINK

LINK, CHAIN, Track, LH

36шт.

3

R57369

BUSHING

- track pin, 1-7/8 inch (47 mm) OD

37шт.

4

R57368

PIN

- track

37шт.

5

R57377

RING

SPACER - seal

74шт.

6

R57370

SEAL

SEAL - track pin

74шт.

7

R54334

PLUG,16mm

- track pin

37шт.

130344A1

LINK

ASSEMBLY - master, right-hand

1шт.

8

NSS

NOT SOLD SEPARAT

LINK - track, master, fits over track pin on outside of regular track link, right-hand

1шт.

9

NSS

NOT SOLD SEPARAT

LINK - track, master, fits over bushing on inside of regular track link, right-hand

1шт.

130343A1

LINK

ASSEMBLY - master, left-hand

1шт.

10

NSS

NOT SOLD SEPARAT

LINK - track, master, fits over track pin on outside of regular track link, left-hand, not shown

1шт.

11

NSS

NOT SOLD SEPARAT

LINK - track, master, fits over bushing on inside of regular track link, left-hand, not shown

1шт.

12

135984A1

BOLT

- special, 54 mm long, used on master link only

1шт.

13

133796A1

BOLT

- special, 73 mm long, used on master link only

1шт.

14

R57417

PLATE

SHOE - track, closed center, single grouser, 16 inch (406 mm), if used

74шт.

14

R57876

TRACK SHOE

SHOE - track, closed center, single grouser, 20 inch (508 mm), if used

74шт.

14

R57418

TRACK SHOE

SHOE - track, closed center, single grouser, 28 inch (711 mm), if used

74шт.

15

R57374

BOLT

BOLT - hex, special, 9/16 NF x 1-25/32 inch

296шт.

16

R57375

SQUARE NUT

- square, special, 9/16 inch NF, not used on master link bolts

288шт.

R57415

PIN

KIT - pin and bushing, includes instruction sheet, services complete track chain for both sides of tractor

1шт.

18

R57368

PIN

- track, and bushing kit

74шт.

19

R57369

BUSHING

- track pin, 1-7/8 inch (47 mm) OD, and bushing kit

74шт.

20

R57377

RING

SPACER - seal, pin and bushing kit

148шт.

21

R54334

PLUG,16mm

- track pin and bushing kit

74шт.

22

R57370

SEAL

SEAL - track pin and bushing kit

148шт.

345-140

SEALANT

ADHESIVE - rubber, Scotch Grip No. 847, 1 pint can, for link pin bores, not shown, pin and bushing kit

1шт.
