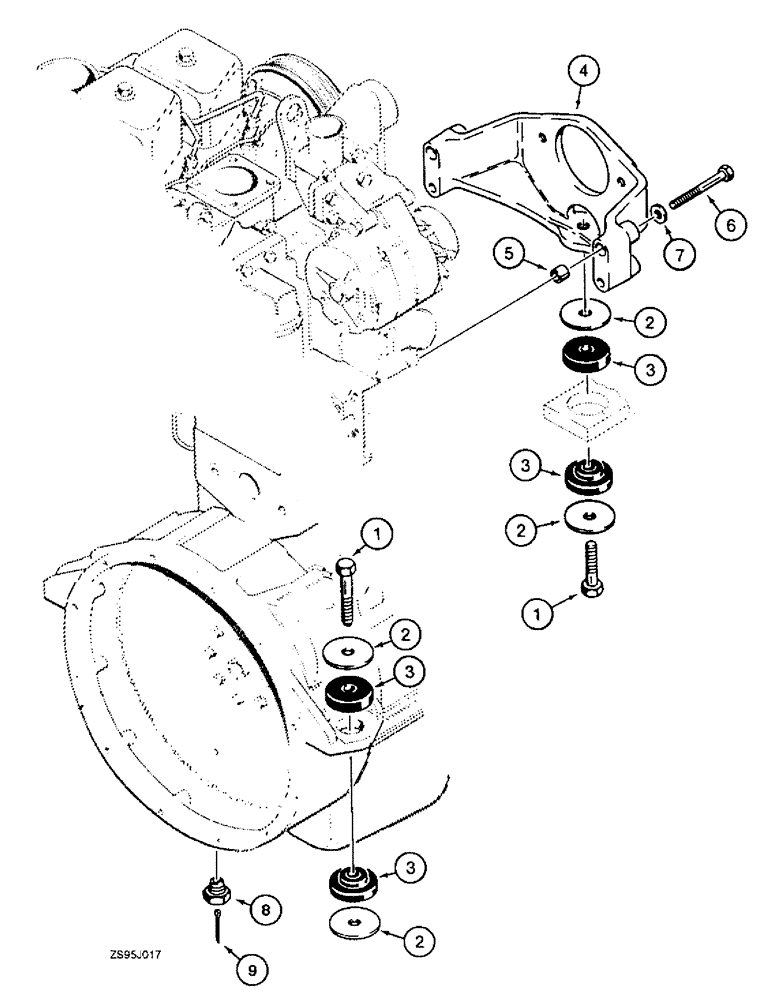

Запчасти Case 550E (2-40) - ENGINE MOUNTING (02) - ENGINE

1

113-2632

LOCK BOLT,Locking, 5/8"-11 x 3 1/2", G5

BOLT, Locking, 5/8-11 x 3 1/2", G5

3шт.

2

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

- flat, special, 5/8 inch

6шт.

3

R49482

RUBBER MOUNTING

INSULATOR - rubber

6шт.

4

A170580

SUPPORT

- engine

1шт.

5

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

SPACER - engine mount

2шт.

6

A171690

BOLT

BOLT - hex, special, 12 mm - 1.75 x 85 mm, class 10.9

4шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

8

L113178

PLUG

BUSHING - pipe

1шт.

9

32-1416

COTTER PIN,7/32" x 1"

PIN - cotter, 1/16 x 1 inch

1шт.
