(2-56) - MUFFLER MOUNTING AND EXHAUST PARTS, MODELS WITHOUT A TURBOCHARGER

Запчасти Case 550E (2-56) - MUFFLER MOUNTING AND EXHAUST PARTS, MODELS WITHOUT A TURBOCHARGER (02) - ENGINE

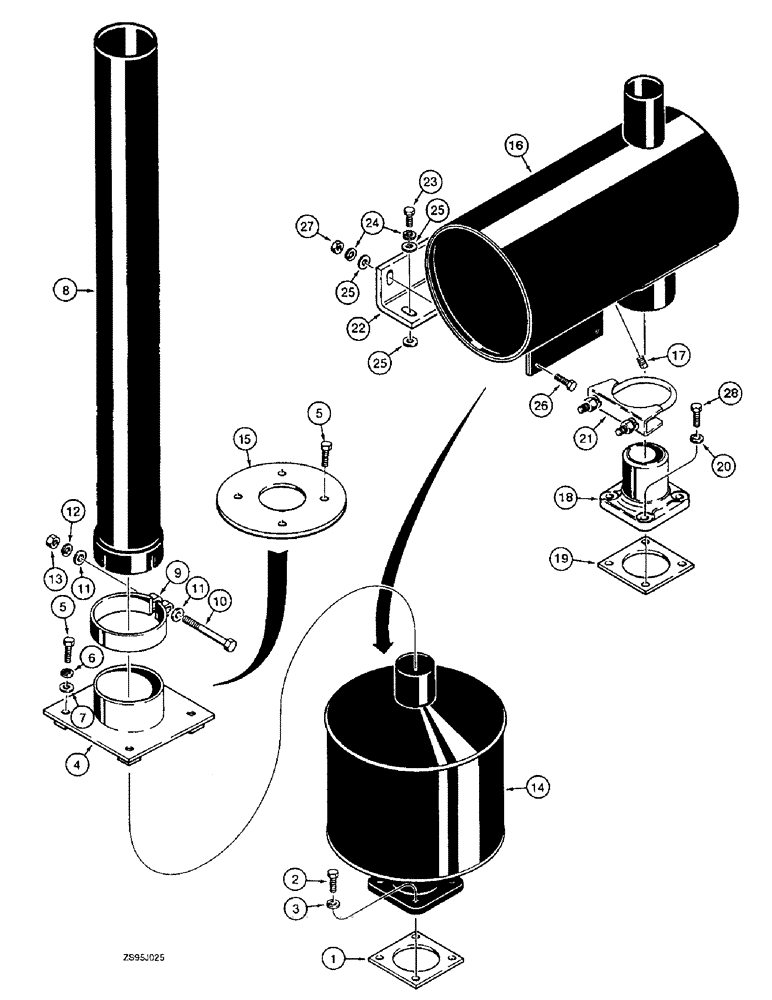

Схема запчастей Case 550E - (2-56) - MUFFLER MOUNTING AND EXHAUST PARTS, MODELS WITHOUT A TURBOCHARGER (02) - ENGINE
6
17
5
26
25
15
2
25
19
23
20
21
11
28
13
4
22
25
9
8
5
27
16
14
1
12
11
10
3
24
7
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J912220

GASKET,0.4mm Thk

- muffler, exhaust manifold

1шт.

2

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm

4шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

R42378

BRACKET

- exhaust pipe

1шт.

5

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special

4шт.

8

R50444

PIPE

- exhaust

1шт.

9

R42854

CLAMP

- exhaust pipe

1шт.

10

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

11

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

- flat, 13/32 x 13/16 x 1/16 inch

2шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

14

A172785

MUFFLER

- standard, models without turbocharger, if used

1шт.

15

182803A1

RING

- exhaust support

1шт.

16

A172489

MUFFLER

- spark arrester

1шт.

17

217-77

PLUG

- square, 3/8 inch PT, brass, models with spark arrester muffler

1шт.

18

A170611

ADAPTER

- muffler, models with spark arrester

1шт.

19

J912220

GASKET,0.4mm Thk

- adapter, models with spark arrester muffler

1шт.

20

892-11010

LOCK WASHER,M10

Models with spark arrester muffler M10

4шт.

21

A62874

CLAMP

- includes hardware, to adapter, models with spark arrester muffler

1шт.

22

A172480

SUPPORT

BRACKET - spark arrester muffler

1шт.

23

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Models with spark arrester muffler Hex, M10 x 30, 8.8

2шт.

24

892-11010

LOCK WASHER,M10

Models with spark arrester muffler M10

4шт.

25

D41740

WASHER

- flat, special, hardened, models with spark arrester muffler

6шт.

26

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Models with spark arrester muffler Hex, M10 x 30, 8.8

2шт.

27

825-1410

NUT,M10, Cl 8

Models with spark arrester muffler M10, Cl 8

2шт.

28

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, models with spark arrester muffler

4шт.
