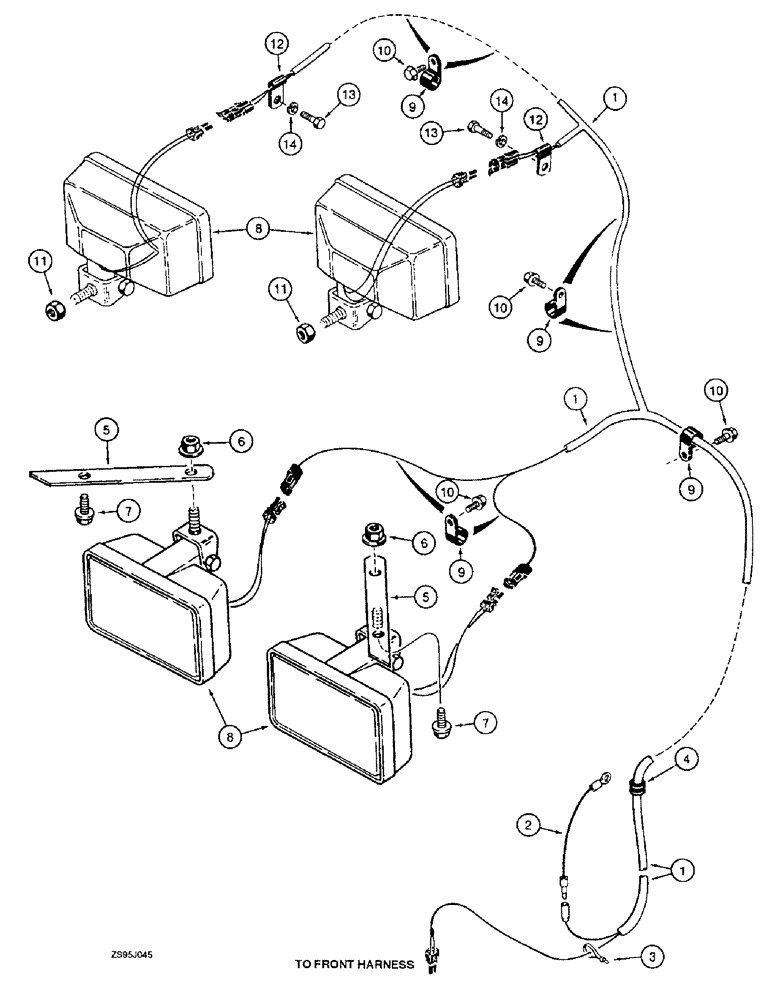

Запчасти Case 550E (4-22) - HALOGEN LAMPS AND WIRING (04) - ELECTRICAL SYSTEMS

1

R58397

HARNESS

- front, Serial Range: harness-lamps

1шт.

2

R47747

ELECTRICAL WIRE

WIRE - ground, rear lamp harness

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

D42106

GROMMET

- rubber, rear lamp harness through hydraulic reservoir frame

1шт.

5

R53887

SUPPORT

BRACKET - mounting, rear lamp mounting, use rear screen mounting hardware, on models without rear screen, use item 7, 160-106 bolts

2шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

7

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2шт.

8

D137294

LIGHT ASSY.

LAMP ASSEMBLY - front driving and rear flood, parts list figure 4-24

4шт.

9

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- 1/2 inch ID, lamp harness to ROPS canopy

7шт.

10

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

7шт.

11

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

12

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-style, 1/4 inch diameter, to ROPS canopy, at front lamps

2шт.

13

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.
