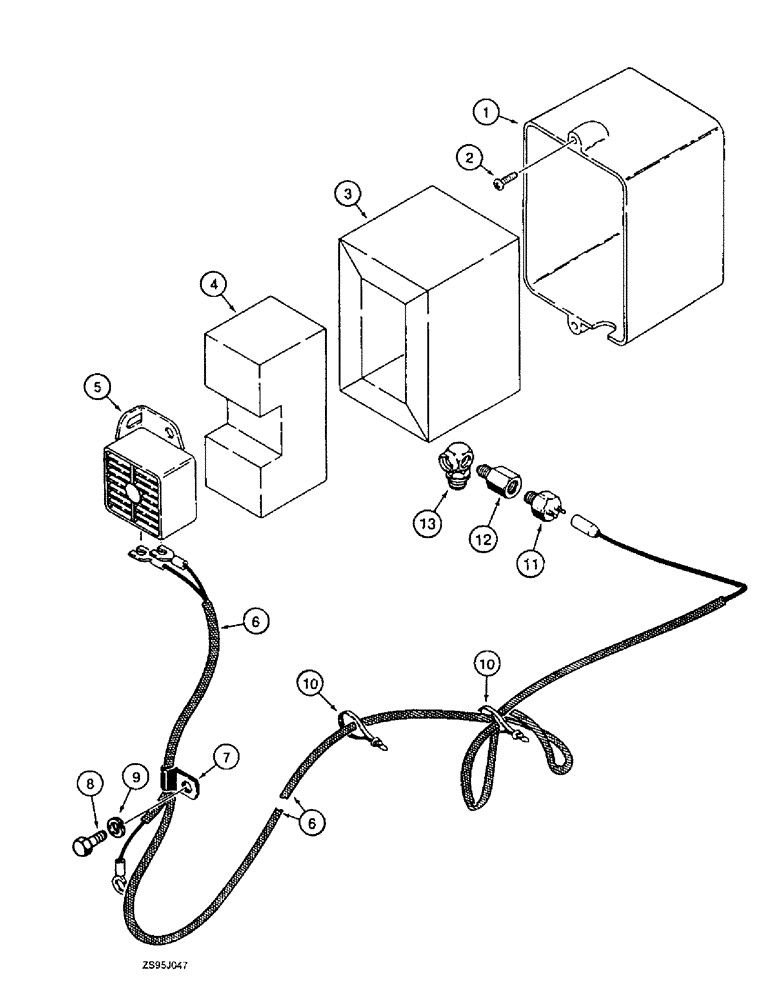

Запчасти Case 550E (4-26) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

R50647

BOX

COVER - plastic, backup alarm

1шт.

2

261-55712

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

3

R50648

FOAM

SEAL - foam,backup alarm box

1шт.

4

R51815

PAD

- foam, 2 (51) x 2-1/2 (64) x 10 inch (254 mm) long, cut a double thickness from R30870 bulk foam

1шт.

5

L112318

ALARM

- backup, bolts to rear access cover

1шт.

6

107225A1

ELECTRICAL WIRE

HARNESS - backup alarm and ground, with flex conduit covering

1шт.

7

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

P-type 3/4", Insul, 5/16" Bolt

1шт.

8

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

11

D139904

SWITCH

- pressure, backup alarm

1шт.

12

R52651

FITTING

SNUBBER - pressure switch

1шт.

13

G107178

ELBOW

- 90 degree, reverse line at transmission control valve, see parts list on figure 6-26 or 6-28

1шт.

R30870

PAD

- bulk, 54 (1372 mm) x 72 (1829 mm) x 1 inch (25 mm) thick

1шт.
