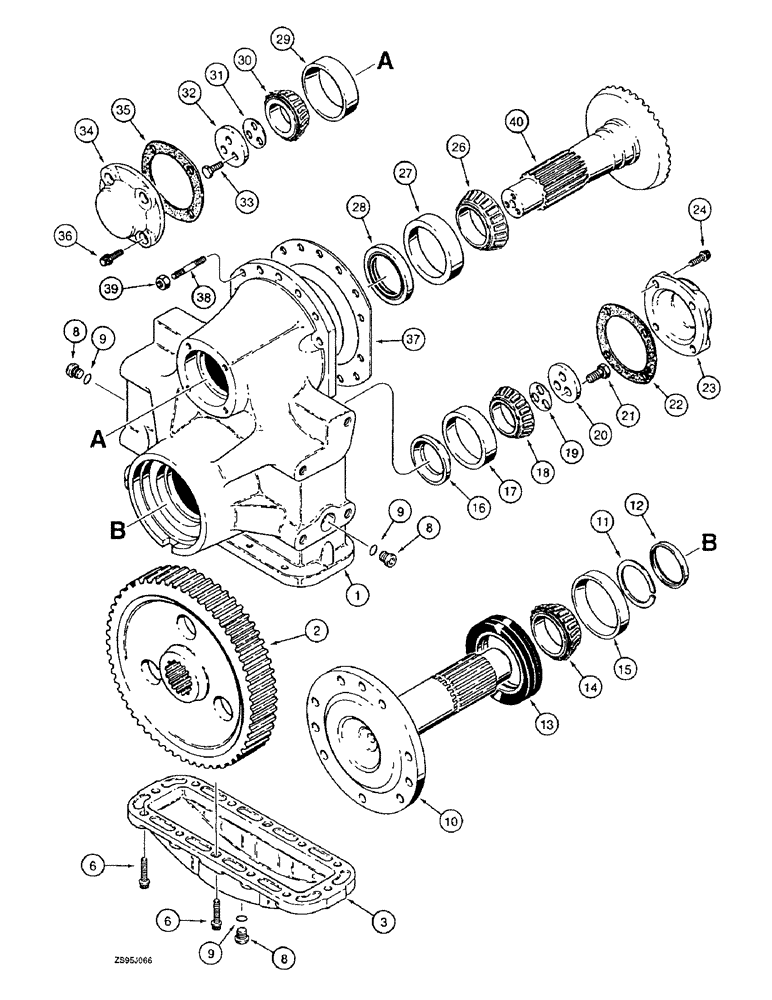

Запчасти Case 550E (6-22) - TRANSMISSION FINAL DRIVE, 64 INCH GAUGE LGP MODELS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see figure 6-8 for correct assembly

1шт.

G104730

TRANSMISSION

DRIVE ASSEMBLY - final, 64 inch gauge LGP models

2шт.

1

G104731

HOUSING

- final drive

1шт.

2

G101531

GEAR

- final drive, 76 teeth

1шт.

3

1348873C1

COVER

- lower, final drive gear

1шт.

6

180-610

12 PT SCREW,Flg, 1/2" - 13 x 1 1/2", Gr 8

BOLT - 12 point flange, self-locking, 1/2 NC x 1-1/2 inch, grade 8

12шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

3шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

G106477

SHAFT

- final drive

1шт.

11

101-11325

SNAP RING,#325, 3.070, Ext

RING - retaining, final drive gear

1шт.

12

G107232

SPACER

- final drive gear

1шт.

13

1981095C1

SEAL

- face, final drive shaft, outer

1шт.

14

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

BEARING - tapered roller, final drive shaft, outer

1шт.

15

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - tapered roller bearing, outer

1шт.

16

G100325

SPACER

- final drive shaft

1шт.

17

L35931

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

18

630203C91

TAPERED BEARING

- tapered roller, final drive shaft, inner

1шт.

19

R21741

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

19

R21742

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

19

R21743

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

20

1997099C1

PLATE

- retaining

1шт.

21

110-14

LOCK BOLT,Locking, 9/16"-18 x 1 1/4", G8, Full Th

BOLT, d Locking, 9/16"-18 x 1 1/4", G8, Full Th

3шт.

22

G101598

GASKET

- cover

1шт.

23

G105822

COVER ASSY

COVER - shaft, final drive shaft

1шт.

24

180-609

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT - 12 point flange, self-locking, 1/2 NC x 1 inch, grade 8

4шт.

26

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

BEARING - tapered roller, input shaft, inner

1шт.

27

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - tapered roller bearing, inner

1шт.

28

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

- oil, final drive housing, input shaft

1шт.

29

895366C1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

30

1997114C1

TAPERED BEARING,55.001 mm ID x 39 mm

BEARING - tapered roller, input shaft, outer

1шт.

31

G100328

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

31

G100329

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

31

G100330

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

138973A1

SEAL KIT

KIT - seal and shim, includes all items marked with a bullet on figure 6-22

1шт.

G104730

TRANSMISSION

DRIVE ASSEMBLY - final, 64 inch gauge LGP models

2шт.

32

1997100C1

PLATE

- bearing retaining

1шт.

33

107-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G8, Full Thd

BOLT - hex, chemical locking, 1/2 NC x 1-1/4 inch, grade 8

3шт.

34

G105822

COVER ASSY

COVER - shaft

1шт.

35

G101598

GASKET

- cover

1шт.

36

180-609

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT - 12 point flange, self-locking, 1/2 NC x 1 inch, grade 8

4шт.

37

A50199

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

Part of KIT, part number 138971A1

1шт.

37

A50198

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of KIT, part number 138971A1

1шт.

38

G100303

STUD

- 1/2 NC x 2-5/16 inch

24шт.

39

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

40

1348973C1

GEAR, BEVEL

GEAR AND SHAFT - pinion, matched set, input shaft, with pinion shaft, see figure 6-8, ref 9

1шт.

B17555

LOCTITE

SEALANT - Gasket Eliminator No. 515, 50 ml tube, botton gear cover to housing

1шт.

138971A1

SEAL KIT

KIT - seal, transmission, Includes: Ref. 37.

1шт.

138973A1

SEAL KIT

KIT - seal and shim, includes all items marked with a bullet on figure 6-6 thru 6-28

1шт.

Ref item #40 1348973C1 has an informational service bulletin NCR SB 006 97 issued June 24, 1997 showing the various shaft markings and how to shim the shaft. by TSG bb 10/1/97

1шт.
