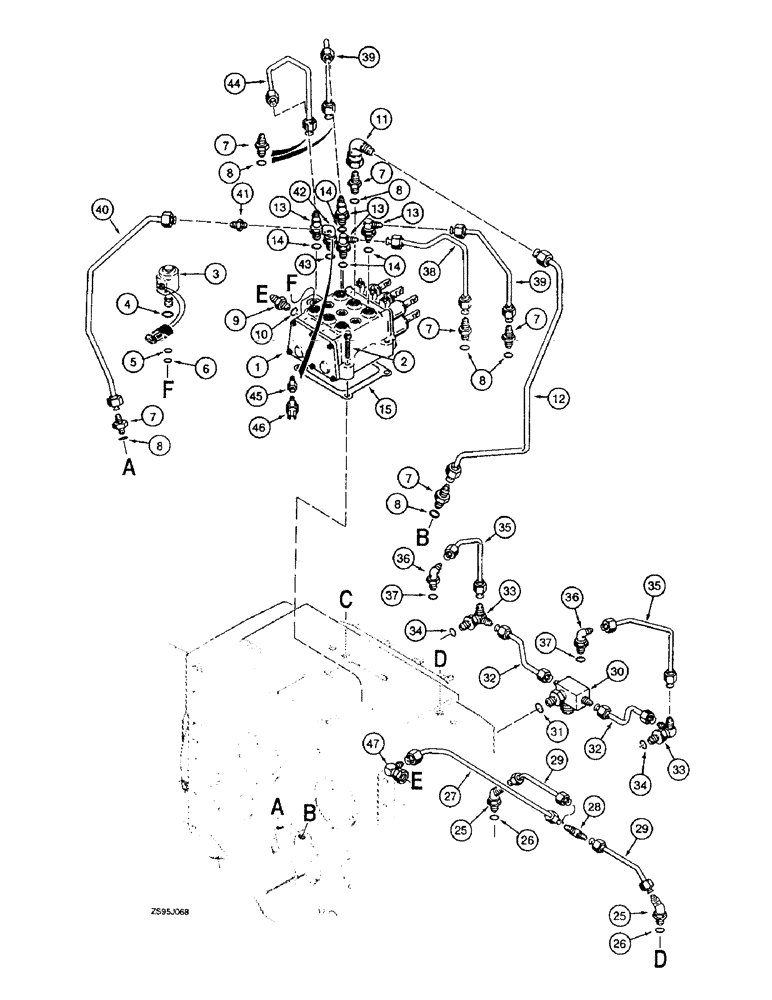

Запчасти Case 550E (6-28) - TRANSMISSION HYDRAULIC LINES, **(WITH MODULATOR IN TRANSMISSION CONTROL VALVE 125588A4) (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-08 for correct assembly

1шт.

1

125588A4

VALVE

ASSEMBLY - transmission control, with modulator, parts list figure 6-32

1шт.

2

180-607

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

BOLT, 12 Pt Flg, 3/8"-16 x 2", G8

4шт.

110415A1

SOLENOID

VALVE ASSEMBLY - solenoid, 12 volt

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - solenoid, 12 volt

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

6

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

7шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss

1шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

11

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

12

1997056C1

TUBE

- forward

1шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

4шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

1986527C1

GASKET

-, Serial Range: valve-housing

1шт.

Part of KIT, part number 138971A1

1шт.

Used on P.I.N.\xd5 s JJG 0214706 through JJG0214715, and on P.I.N.\xd5 s JJG0214717 through JJG0214732, and on P.I.N.\xd5 s JJG0214737 and after.

1шт.

25

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

27

140920A2

TUBE,9.25 mm OD, 208.2, 150.5 mm Length

- parking brake supply

1шт.

28

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch adj O-ring branch x flare x flare

1шт.

29

1997023C2

TUBE,9.52 mm OD

- parking brake, tee to brake housing

2шт.

30

1997012C1

TEE

FITTING - special, front of transmission

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

32

1997107C1

TUBE,9.52 mm OD

- special fitting, to tee at brake housing

2шт.

33

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

35

1997029C1

TUBE,9.52 mm OD

- track lube

2шт.

36

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

38

135916A1

TUBE,12.7 mm OD, 222.6, 148.1 mm Length

- low track, right hand

2шт.

39

1997021C2

TUBE,12.7 mm OD

- high track

2шт.

40

G108276

TUBE,0.5" OD

- reverse

1шт.

41

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

1шт.

42

G107178

ELBOW

- 90 degree, special, tapped for backup alarm switch plumbing

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

44

135918A1

TUBE,12.7 mm OD, 222.6, 148.1 mm Length

- low track, left hand

1шт.

45

R52651

FITTING

SNUBBER - pressure switch

1шт.

46

D139904

SWITCH

- pressure, backup alarm, see figure 4-28

1шт.

47

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel flare

1шт.

138971A1

SEAL KIT

KIT - seal, transmission, Includes: Ref. 15.

1шт.

Used on P.I.N.\xd5 s JJG 0214706 through JJG0214715, and on P.I.N.\xd5 s JJG0214717 through JJG0214732, and on P.I.N.\xd5 s JJG0214737 and after.

1шт.
