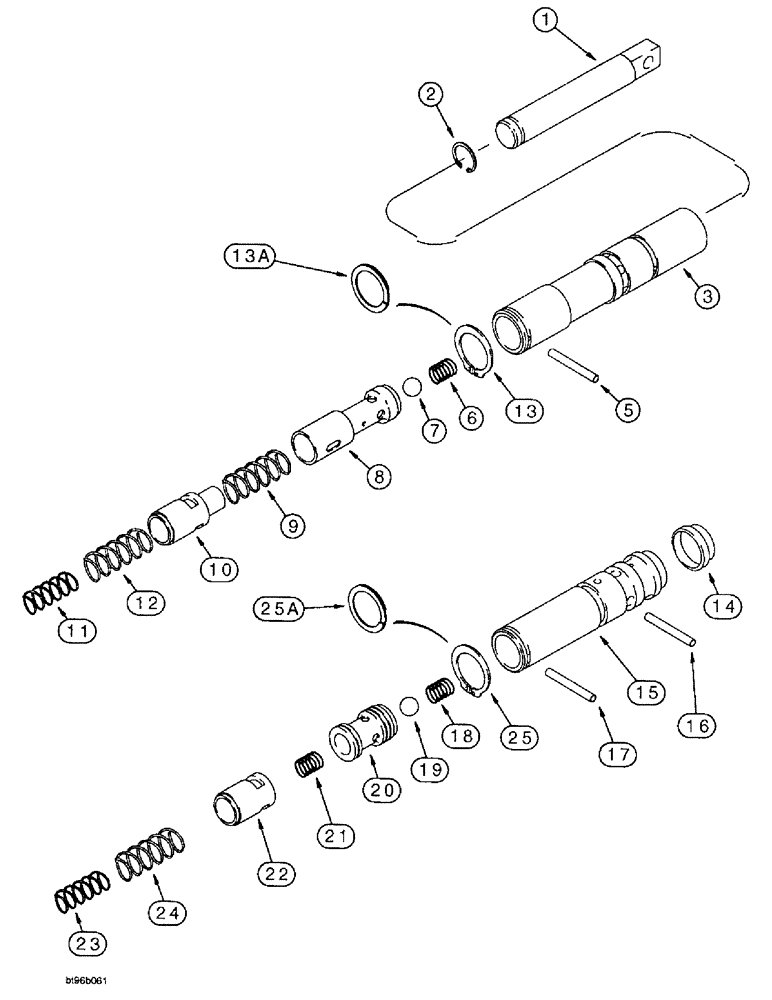

Запчасти Case 550E (6-36) - TRANSMISSION CONTROL VALVE SPOOL ASSEMBLY, CLUTCH CUTOUT SPOOL ASSEMBLY (06) - POWER TRAIN

189265A2

SPOOL

ASSEMBLY - clutch cutout, used with transmission control valve 125588A4, see figure 6-32

2шт.

1

138436A1

ROD

- spool eye

1шт.

2

G107637

RING, SNAP

RING - retaining, spool rod

1шт.

3

189269A2

SPOOL

ASSEMBLY - clutch cutout

1шт.

4

NSS

NOT SOLD SEPARAT

SLEEVE - clutch cutout spool, not shown

1шт.

5

37-1214

DOWEL,1/8" x 7/8"

PIN - dowel, 3/8 x 3/4 inch, hardened

1шт.

6

129700A1

SPRING

- check valve ball

1шт.

7

211-1012

BALL,3/8" Dia

- chrome alloy steel, 3/8 inch, grade 24

1шт.

8

189267A1

SPOOL

- track modulation

1шт.

9

189259A1

SPRING

-spool return, track reducer

1шт.

10

189268A1

PISTON

- track modulation

1шт.

12

121866A1

SPRING

- track modulation, outer

1шт.

13

121493A2

RING

- retaining, spring and piston, no longer used, see note below

1шт.

13a

102-1393

SNAP RING,#93, Ext, Spiral

RING - spiral, retaining, spring and piston

1шт.

Part of Modification Kit P/N 893117

1шт.

Use the kit B93117 to update 550E units with P.I.N. JJG0214706 through JJG0214762, except P.I.N. JJG0214716 and except P.I.N. JJG0214733 through JJG0214736. These units used 121493A2 ring, no longer used. See service bulletin NCR MP 010 94 for installation instructions.

1шт.

126430A3

SPOOL

ASSEMBLY - forward and reverse modulation, used with transmission control valve 125588A4, see figure 6-32

1шт.

14

121494A1

STOP

- spool, forward and reverse modulation

1шт.

15

126255A3

SLEEVE

- modulation spool, forward and reverse

1шт.

16

132923A1

PIN

- retaining, 3.18 x 24 mm long, forward and reverse modulation spool

1шт.

17

37-1214

DOWEL,1/8" x 7/8"

PIN - dowel, 3/8 x 3/4 inch, hardened, spring retaining, spool end, forward and reverse modulation

1шт.

18

129700A1

SPRING

- check valve ball, forward and reverse modulation spool

1шт.

19

211-1012

BALL,3/8" Dia

- chrome alloy steel, 3/8 inch, grade 24, forward and reverse modulation spool

1шт.

20

126252A1

SPOOL

- forward and reverse modulation

1шт.

21

127427A1

SPRING

-spool return, forward and reverse modulation

1шт.

22

121492A1

PISTON

- forward and reverse modulation

1шт.

23

121870A1

SPRING

- forward and reverse modulation

1шт.

24

121871A1

SPRING

- forward and reverse modulation

1шт.

25

121493A2

RING

- retaining, spring and piston, no longer used, see note below, forward and reverse modulation spool

1шт.

25a

102-1393

SNAP RING,#93, Ext, Spiral

RING - spiral, retaining, spring and piston, forward and reverse modulation spool

1шт.

Part of Modification Kit P/N 893117

1шт.

Use the kit B93117 to update 550E units with P.I.N.\xd5 s JJG0214706 through JJG0214762, except P.I.N. JJG0214716 and except P.I.N.\xd5 s JJG0214733 through JJG0214736. These units used 121493A2 ring, no longer used. See service bulletin NCR MP 010 94 for installation instructions.

1шт.

B93117

MODIFICATION

KIT modification, Includes Ref. 13A and 25A, plus 35665 gasket, item 3 Figure 6-32, forward and reverse modulation spool

1шт.

Use the kit B93117 to update 550E units with P.I.N.\xd5 s JJG0214706 through JJG0214762, except P.I.N. JJG0214716 and except P.I.N.\xd5 s JJG0214733 through JJG0214736. These units used 121493A2 ring, no longer used. See service bulletin NCR MP 010 94 for installation instructions.

1шт.
