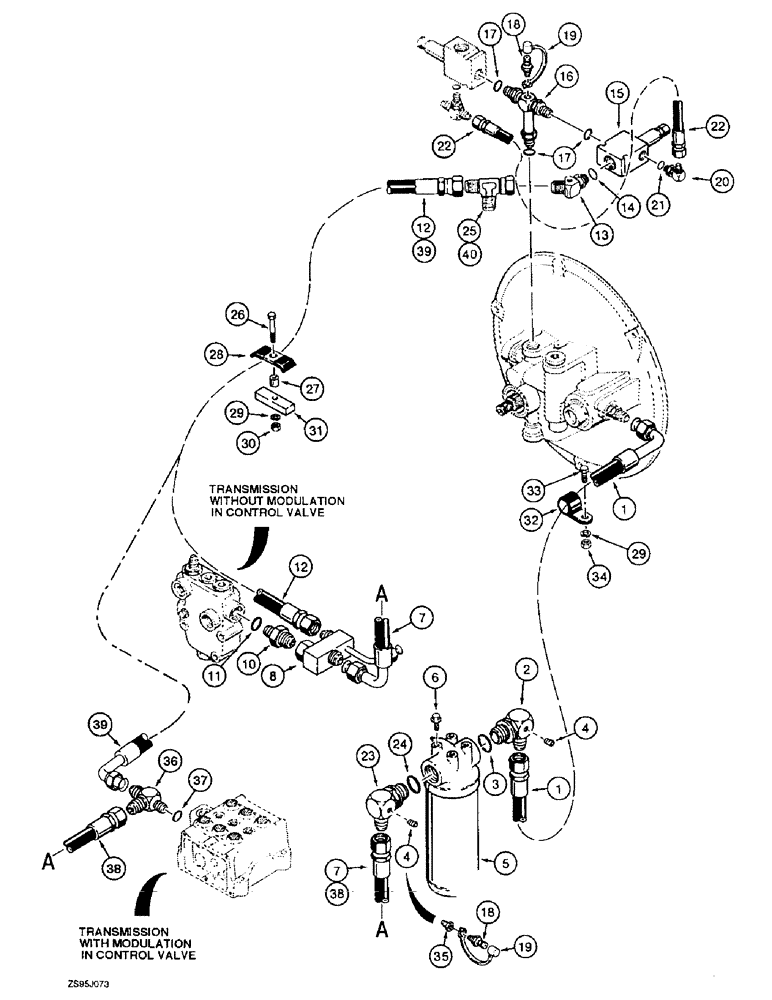

Запчасти Case 550E (6-38) - TRANSMISSION HYDRAULIC CIRCUIT, TORQUE CONVERTER TO TRANSMISSION (06) - POWER TRAIN

1

R57653

HOSE ASSY.

HOSE - 64-5/8 inch (1640 mm) long, torque, Serial Range: converter-filter

1шт.

2

R49557

FITTING

ELBOW - 90 degree, with check port, special

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

4

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

2шт.

5

R48993

FILTER

ASSEMBLY - transmission oil, parts list figure 6-44

1шт.

6

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

7

R57656

HOSE

- 28-3/8 inch (720 mm) long, filter to modulator valve on transmission

1шт.

8

1997073C1

BLOCK ASSY.

MANIFOLD - special, hydraulic distribution

1шт.

10

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

H224147

HYDRAULIC HOSE,19.05 mm ID x 1320.80 mm, SAE 100R1

Modulator Valve to Relief Valve 19.05 mm ID x 1320.80 mm, SAE 100R1

1шт.

13

R57596

FITTING

ELBOW - 45 degree, special, see figure 4-12for transmission oil pressure gauge

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

R57582

VALVE

ASSEMBLY - relief, component parts not serviced separately, may order S301087 seal kit below for service of external O-rings

1шт.

16

R57585

FITTING

TEE - special, at torque converter, see figure 6-42 for pressure sensing valve

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

18

H434164

COUPLING

COUPLER - quick check, diagnostic check

1шт.

19

H434163

DUST CAP

CAP - dust, coupler

1шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

22

L19294

HOSE,0.38" ID x 18.75", SAE 100R1

ASSY, , Relief Valve to Pressure Sensing Valve 0.38" ID x 18.75", SAE 100R1

1шт.

23

E20132

FITTING

ELBOW - 90 degree, special, with check port

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

25

218-5219

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

- 3/4-16 flare branch x 1-1/16-12 inch flare x swivel, str thread

1шт.

26

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

1шт.

27

D76208

SPACER

- hose clamp

1шт.

28

R15257

CLAMP

- hose

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self locking, 3/8 inch NC

1шт.

31

R35857

BAR

PLATE - clamp

1шт.

32

92070C1

CLAMP,1 1/4", Insul, 7/16" Bolt

- P-type, 1-1/4 inch ID

1шт.

33

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

34

425-106

NUT,3/8"-16, Cl 5

1шт.

35

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

36

218-5594

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12

- 1-1/16-12 flare branch x flare x 7/8-14 inch adj O-ring, hydraulic distribution

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

132860A1

HOSE

- 990 mm long, filter to control valve on transmission

1шт.

39

178403A1

HOSE ASSY.

HOSE - 875 mm long, control valve to relief valve

1шт.

40

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x adj straight thread

1шт.

S301087

SEAL KIT

KIT - seal repair, contains three O-rings and two backup rings which are not serviced separately

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
