(4-18) - HALOGEN LAMPS AND WIRING

Запчасти Case 550G (4-18) - HALOGEN LAMPS AND WIRING (06) - ELECTRICAL SYSTEMS

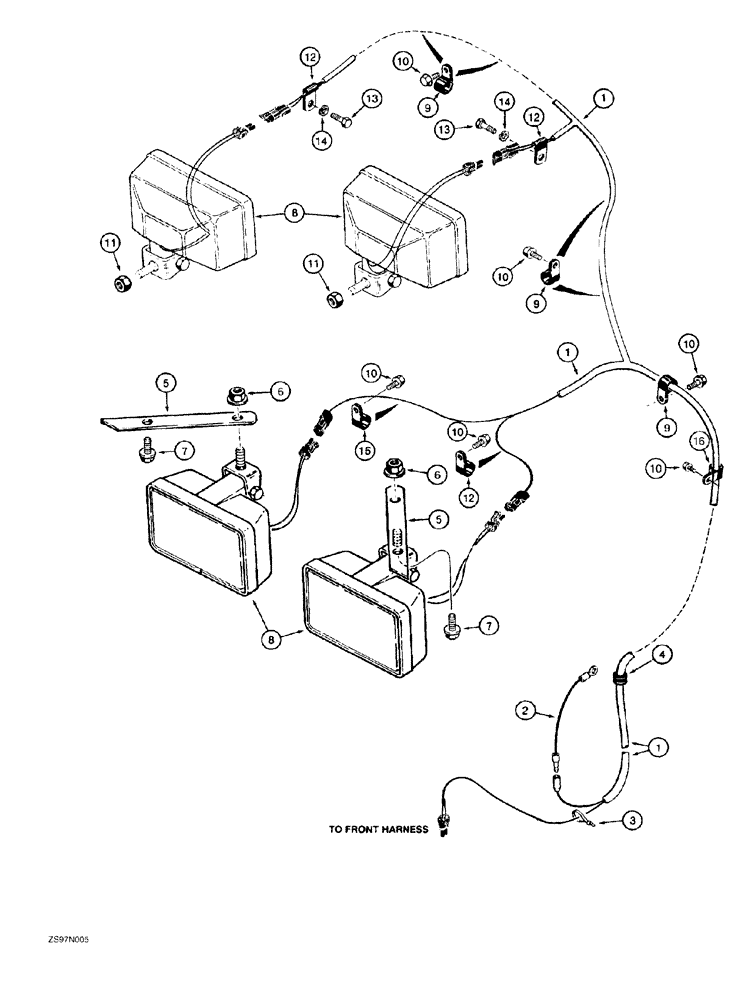

Схема запчастей Case 550G - (4-18) - HALOGEN LAMPS AND WIRING (06) - ELECTRICAL SYSTEMS
1
12
3
14
4
13
15
11
10
10
10
5
8
14
7
16
9
6
13
7
1
10
10
9
8
10
12
1
11
12
5
9
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R58397

HARNESS

lamp

1шт.

2

R47747

ELECTRICAL WIRE

WIRE ground, rear lamp harness

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, front wiring harness to transmission dipstick tube, 15"

1шт.

4

D42106

GROMMET

rubber, rear lamp harness through hydraulic reservoir frame

1шт.

5

185919A1

BRACKET

use rear screen mounting hardware, on models without rear screen use Ref. 7, 160-106 bolt

2шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

7

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2шт.

8

D137294

LIGHT ASSY.

LAMP front driving and rear flood, see Figure 4-20

4шт.

9

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type, Lamp harness to ROPS canopy

3шт.

10

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

6шт.

11

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

12

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

P-type, harness to ROPS canopy, at front lamps, 1/4" ID

3шт.

13

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Harness to ROPS canopy

1шт.
