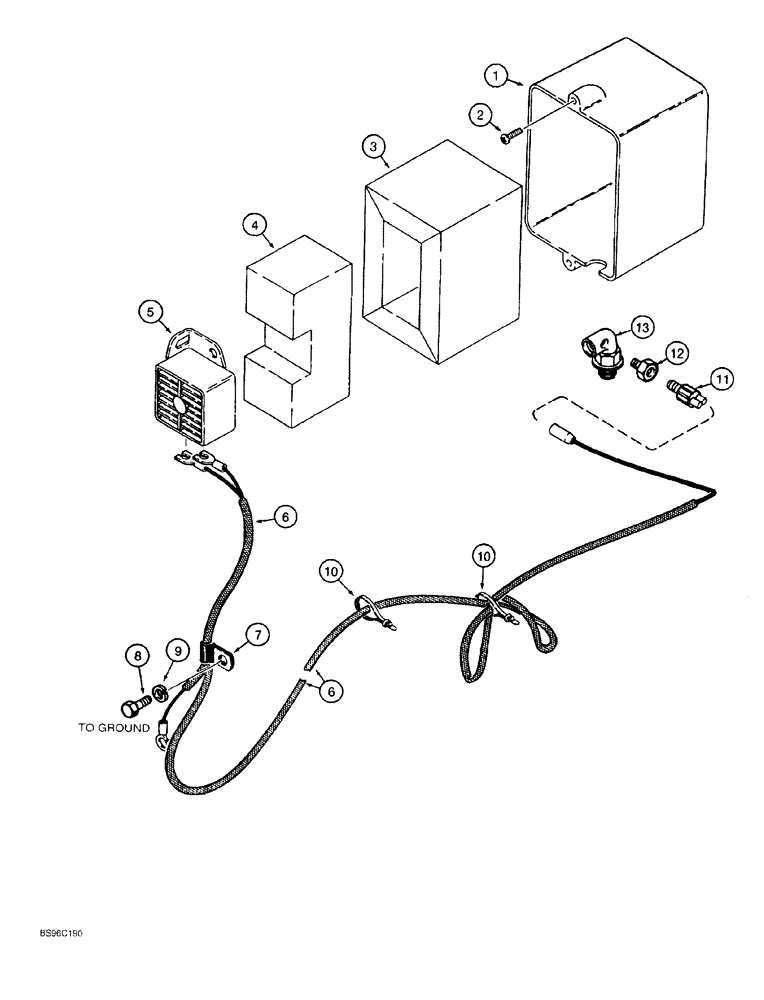

Запчасти Case 550G (4-22) - BACKUP ALARM (06) - ELECTRICAL SYSTEMS

1

R50647

BOX

COVER plastic, backup alarm

1шт.

2

261-55712

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

3

R50648

FOAM

SEAL backup alarm box

1шт.

4

R51815

PAD

foam, 51 mm (2") x 64 mm (2-1/2") x 254 mm (10") long, see R30870 bulk pad below

1шт.

5

L112318

ALARM

backup, bolts to rear access cover

1шт.

6

107225A1

ELECTRICAL WIRE

WIRE HARNESS backup alarm with ground

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, harness

1шт.

8

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, harness to positive battery cable, 15"

2шт.

11

D139904

SWITCH

pressure

1шт.

12

R52651

FITTING

SNUBBER pressure switch

1шт.

13

G107178

ELBOW

90 degree, special, reverse line at transmission control valve, see Figure 6-20

1шт.

R30870

PAD

bulk, 1372 mm (54") x 1829 mm (72") x 25 mm (1") thick, see Ref. 4

1шт.
