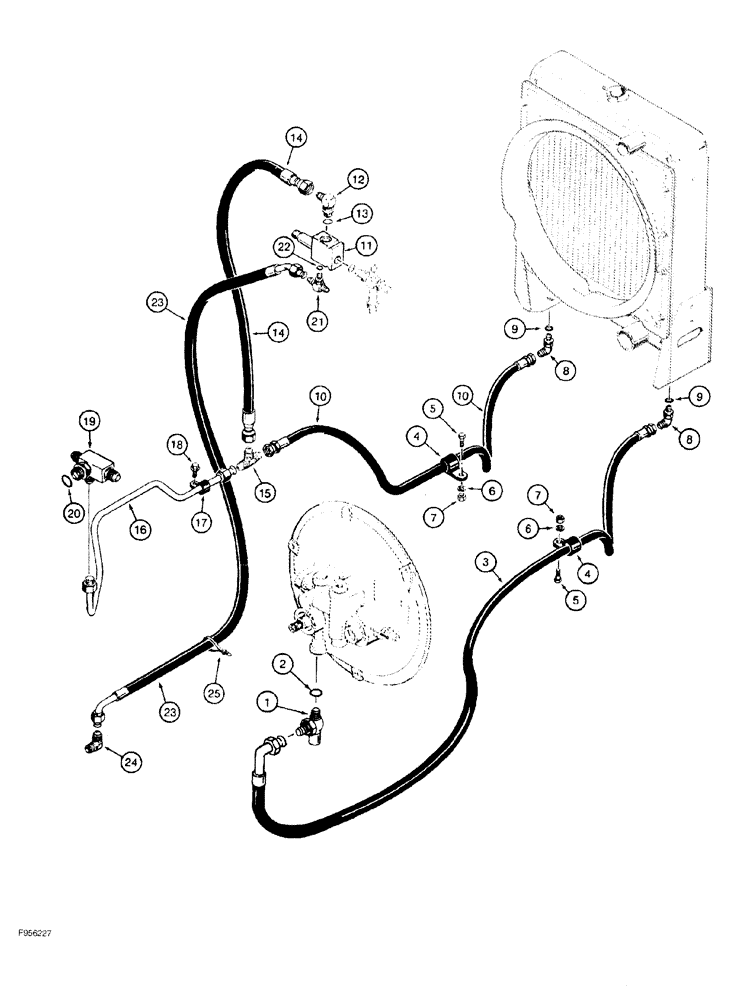

Запчасти Case 550G (6-30) - CRAWLER HYDRAULIC CIRCUIT, COOLING SYSTEM (07) - HYDRAULIC SYSTEM

1

R56771

FITTING

TEE special, see Figure 4-08 for converter temperature gauge, Includes: Ref. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

R57654

HOSE ASSY.

converter to cooler, 1446 mm (57") long

1шт.

4

D40471

CLAMP

P-type, medium closed, 1-1/8" dia.

2шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjusting O-ring boss, Incl. Ref. 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

R57655

HOSE ASSY.

cooler return, at cooler, 1060 mm (41-3/4") long

1шт.

11

R57597

VALVE

pressure sensing, component parts not serviced separately, order S301087 seal kit shown below for service of external O-rings, see Figure 6-26 for attaching tee

1шт.

Part of Seal Repair Kit, P/N S301087

1шт.

12

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ELBOW 90 degree, 7/8"-14 flare x 3/4"-16 adjusting O-ring boss, Includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

R57652

HOSE ASSY.

pressure sensing valve to tee, 575 mm (22-3/4") long

1шт.

15

218-1580

TEE,37º, 1 1/16"-12 x 7/8"-14, Br

7/8"-14 flare branch x 1-1/16"-12 flare x flare

1шт.

16

R58823

TUBE,19.05 mm OD

at transmission

1шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

18

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8" NC x 3/4", grade 8

1шт.

19

1997012C1

TEE

FITTING special, included with transmission assy., see Figure 6-20, Ref. 30, Includes: Ref. 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16"-18 adjusting O-ring branch x flare x flare, Includes: Ref. 22

1шт.

23

R34863

HOSE

pressure sensing valve to transmission, 889 mm (35") long

1шт.

24

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, 15"

1шт.

S301087

SEAL KIT

KIT repair, contains three O-rings and two backup rings which are not serviced separately

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
