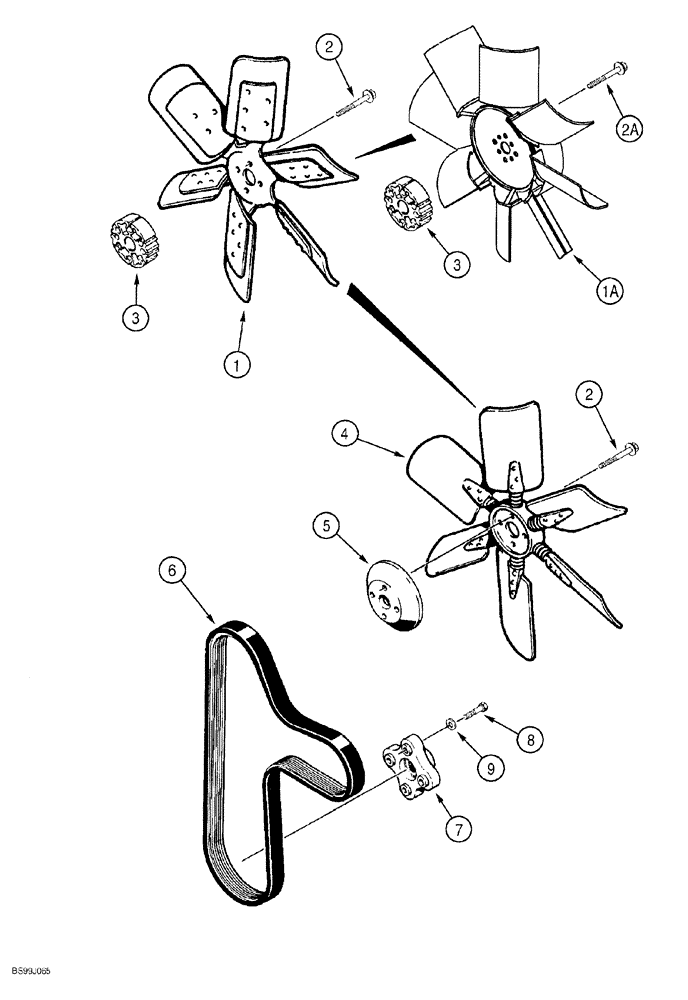

Запчасти Case 550G (2-04) - FAN AND FAN BELT (01) - ENGINE

1

1998736C1

FAN,7 Blades, 450mm OD

engine cooling, prior to crawler P.I.N. JJG0255794, if used

1шт.

1a

302686A1

FAN

engine cooling, 500 mm dia., crawler P.I.N. JJG0255794 and after, if used

1шт.

2

193425A1

FLANGE BOLT,M10 x 1.5 x 50mm

hex flange, special, 10 - 1.5 x 50 mm, Replaces: J900634

4шт.

2a

193426A1

BOLT

hex flange, 10 - 1.5 x 70

4шт.

3

A184544

SPACER

fan, 31.75 mm (1-1/4") wide, prior to crawler P.I.N. JJG0255794

1шт.

3

A184523

SPACER

fan, 1-7/8" wide, crawler P.I.N. JJG0255794 and after

1шт.

4

A184472

FAN

reversible, prior to crawler P.I.N. JJG0255794, if used

1шт.

4

284533A1

FAN

reversible, 500 mm dia., crawler P.I.N. JJG0255794 and after, if used

1шт.

5

A184539

SPACER

reversible fan

1шт.

6

J911563

V-BELT,27.92mm W x 1536.7mm L, 8 Ribs

Fan

1шт.

7

D140524

FLEXIBLE COUPLING,13T

flexible, crankshaft

1шт.

8

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

hex, 7/16" NC x 1-1/2"

4шт.

9

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

special, hardened

4шт.
