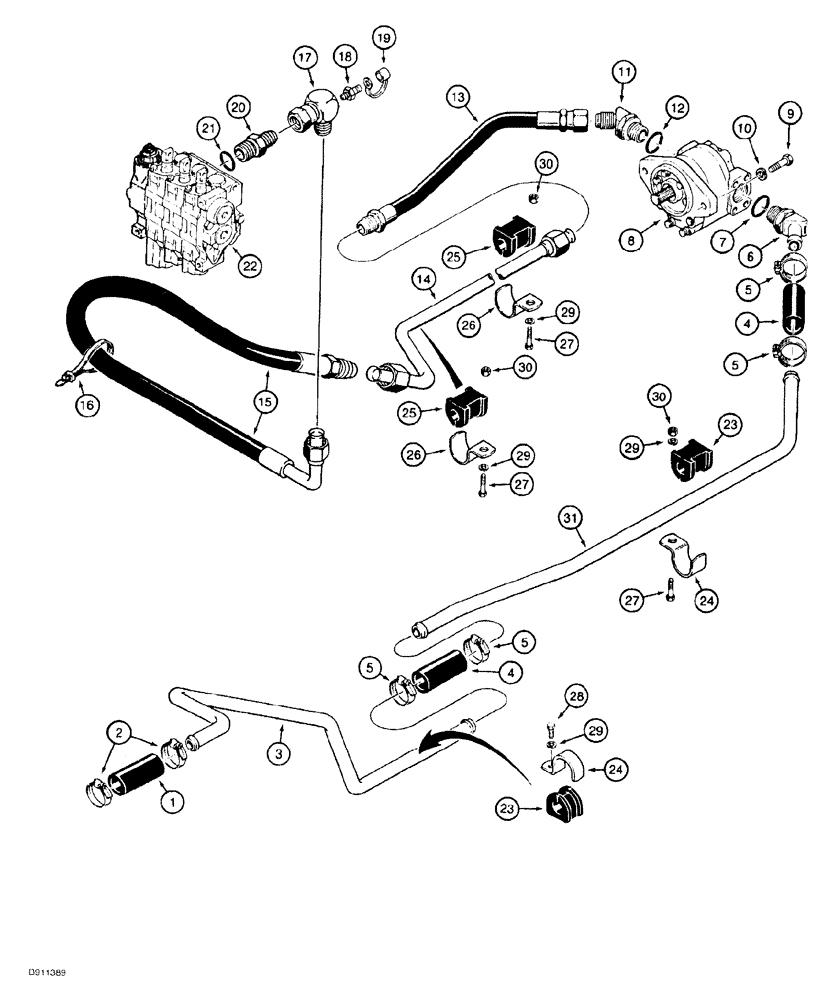

Запчасти Case 550G (8-04) - EQUIPMENT HYDRAULIC CIRCUIT, HYDRAULIC RESERVOIR TO PUMP AND CONTROL VALVE (07) - HYDRAULIC SYSTEM

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

cut from S118465X bulk hose shown below

1шт.

2

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

adjustable, 1" - 1-7/8" dia.

2шт.

3

R47059

TUBE,31.75 - 33.35 mm OD

from hydraulic reservoir

1шт.

4

D36350

HOSE

76 mm (3") long, cut from S118465X bulk hose shown below

2шт.

5

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable, 1-1/4" - 2-1/8" dia.

4шт.

6

139110A1

ELBOW

45 degree, special, pump inlet, 1-1/4" stem end x 1-5/8"-12 O-ring boss, Includes: Ref. 7

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

8

R43429

PUMP

ASSY. equipment, new, see Figure 8-08

1шт.

8

87644730R

REMAN-HYD PUMP

550G CASE LONG TRACK CRAWLER TRACTOR, PUMP ASSY. equipment, new (2/95-), Reman for New PN R43429

1шт.

8

87644730C

CORE-HYDRAULIC PUMP

Return Number

1шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ELBOW 45 degree, pump outlet, 1-5/16"-12 flare x adjusting O-ring boss, Includes: Ref. 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

R50103

HOSE

from pump, 381 mm (15") long

1шт.

14

R51932

TUBE ASSY.,1" OD

intermediate, from pump to control valve

1шт.

15

R58762

HOSE

supply pressure, to control valve lower inlet port, 1220 mm (48-1/8") long

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15", hose to transmission control valve hose

1шт.

17

R47069

ELBOW

special, 90°

1шт.

18

H434164

COUPLING

quick check

1шт.

19

H434163

DUST CAP

1шт.

20

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Straight, Incl. Ref 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

REF

INSTRUCTION

VALVE ASSY. equipment control, for correct assembly see Figure 8-28

1шт.

23

D67298

INSULATOR

rubber, right-hand tube

2шт.

24

D68845

MOUNTING CLIP

CLAMP right-hand tubes

2шт.

25

D67297

BLOCK

INSULATOR rubber, left-hand tubes

2шт.

26

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

left-hand tube

2шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

28

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

29

492-11038

LOCK WASHER,3/8"

4шт.

30

425-106

NUT,3/8"-16, Cl 5

3шт.

31

R47058

TUBE,31.75 - 33.35 mm OD

to pump

1шт.

S118465X

LARGE HOSE

HOSE,LARGE bulk, 32 mm (1-1/4") x 45 mm (1-3/4") x 4572 mm (180") long, see Ref. 1 and 4

1шт.
