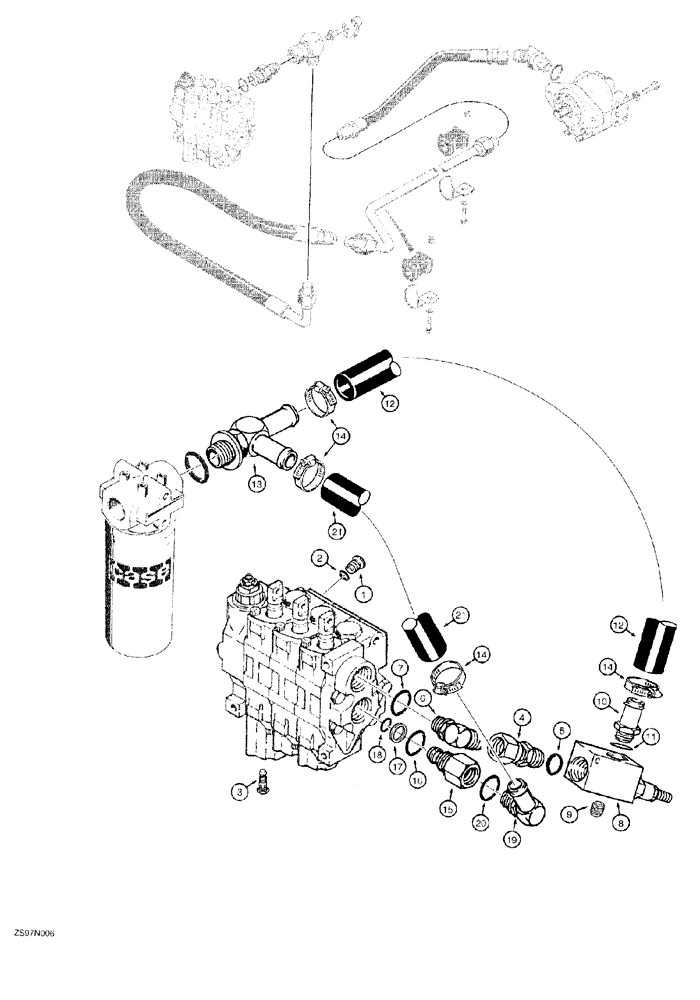

Запчасти Case 550G (8-05A) - EQUIPMENT HYDRAULIC CIRCUIT, PUMP TO CONTROL VALVE AND RESERVOIR (07) - HYDRAULIC SYSTEM

1

9841223

PLUG,1-1/16" - 12 ORB

Plug relocated from upper port of valve end cover to upper port of valve outlet section, plug used in place of Ref. 2 adapter in Figure 8-06 on models with 235418A1 kit shown below, Incl.: Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

235418A1

KIT

service, low pressure regeneration, includes instruction sheet, be sure to refer to instruction sheet 7-51682 when installing this kit, also includes 218-5064 connector 1979672C1 tee and D38435 hose, not used in this application, Includes: Ref. 2 - 21

1шт.

3

122119A1

KIT

ASSY. anti-cavitation, check, replaces existing load check valve in lower port of lift section, see Figure 8-44

1шт.

4

234788A1

CONNECTOR, ELEC

CONNECTOR ADAPTER straight, swivel, special, replaces existing plug in upper port of valve end cover, Includes: Ref. 5

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

220939A1

VALVE

ASSY. relief, regeneration, see Figure 8-48

1шт.

9

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

Test port

1шт.

10

217-390

FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB

ADAPTER straight, 1" stem end x 1-1/16"-12 adjusting O-ring, at regeneration relief valve assembly port labeled as "2", Includes: Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

R58743

HOSE,25.40 mm ID x 510.00 mm, SAE 100R3

Cut to Required Length Measuring Distance Between Ref. 10 and Ref. 13, Approximate Distance is 356 mm (14") Long

1шт.

13

235067A1

TEE

special, hose barbs

1шт.

14

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

adjustable, 1" - 1-7/8" dia.

4шт.

15

R48066

ADAPTER

FITTING power beyond, replaces existing plug in lower port of valve end cover, Includes: Ref. 16 - 18

1шт.

16

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

Outer

1шт.

17

N13178

O-RING,0.69" ID x 0.055" Width

backup, small O-ring

1шт.

18

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

Inner

1шт.

19

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

Adjusting, Includes Ref. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

R58743

HOSE,25.40 mm ID x 510.00 mm, SAE 100R3

Cut to Required Length, Measuring Distance Between Ref. 13 and Ref. 19, Approximate Distance is 243 mm (13-1/2") Long

1шт.
