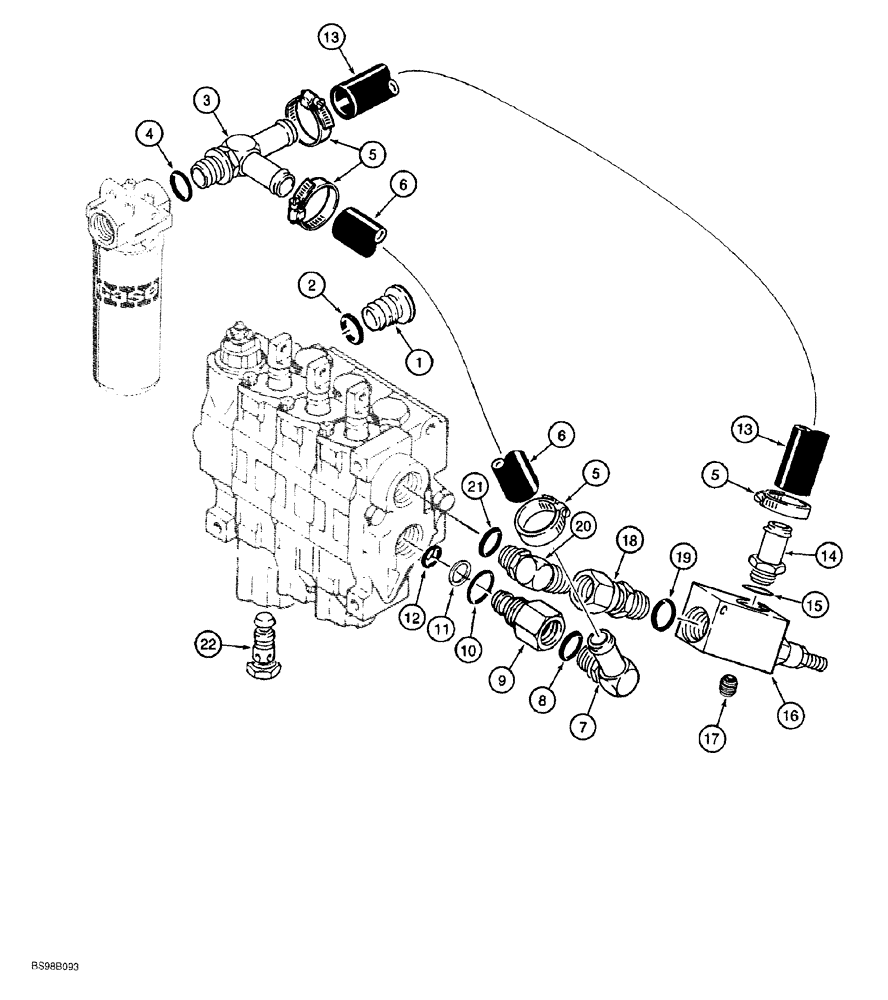

Запчасти Case 550G (8-07A) - EQUIPMENT HYDRAULIC CIRCUIT, CONTROL VALVE TO HYDRAULIC RESERVOIR (07) - HYDRAULIC SYSTEM

1

9841223

PLUG,1-1/16" - 12 ORB

Plug relocated from upper port of valve end cover to upper port of valve outlet section, plug used in place of Ref. 2 adapter in Figure 8-06 on models with 235418A1 kit shown below, Incl.: Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

235418A1

KIT

service, low pressure regeneration, for fine grading, includes instruction sheet, be sure to refer to instruction sheet 7-51682 when installing this kit, Includes: Ref. 3 - 22

1шт.

Kit also includes 218-5064 adapter, 1979672C1 tee and D38435 3/12" hose, which are not used in this application

1шт.

3

235067A1

TEE

special, Includes: Ref. 4

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

adjustable, 1" - 1-7/8" dia., 7 in kit, 3 clamps not used on the 550G

4шт.

6

R58743

HOSE,25.40 mm ID x 510.00 mm, SAE 100R3

Cut to Required Length Measuring Distance Between Ref. 3 and Ref. 7, Approximate Distance is 343 mm (13-1/2") Long

1шт.

7

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

Adjusting, Includes Ref. 8

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

R48066

ADAPTER

FITTING power beyond, replaces existing plug in lower port of valve end cover, Includes: Ref. 10 - 12

1шт.

10

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

Outer

1шт.

11

N13178

O-RING,0.69" ID x 0.055" Width

backup, small O-ring

1шт.

12

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

Inner

1шт.

13

R58743

HOSE,25.40 mm ID x 510.00 mm, SAE 100R3

Cut to Required Length Measuring Distance Between Ref. 3 and Ref. 14, Approximate Distance is 356 mm (14") Long

1шт.

14

217-390

FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB

ADAPTER straight, 1" stem end x 1-1/16"-12 adjusting O-ring, at regeneration relief valve assembly port labeled as "2", Includes: Ref. 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

220939A1

VALVE

ASSY. relief, regeneration, see Figure 8-48

1шт.

17

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

Test port

1шт.

18

234788A1

CONNECTOR, ELEC

CONNECTOR ADAPTER straight, swivel, special, Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Replaces existing plug in upper port of valve end cover, Incl. Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

122119A1

KIT

ASSY. anti-cavitation, check, replaces existing load check valve in lower port of lift section, see Figure 8-44

1шт.
