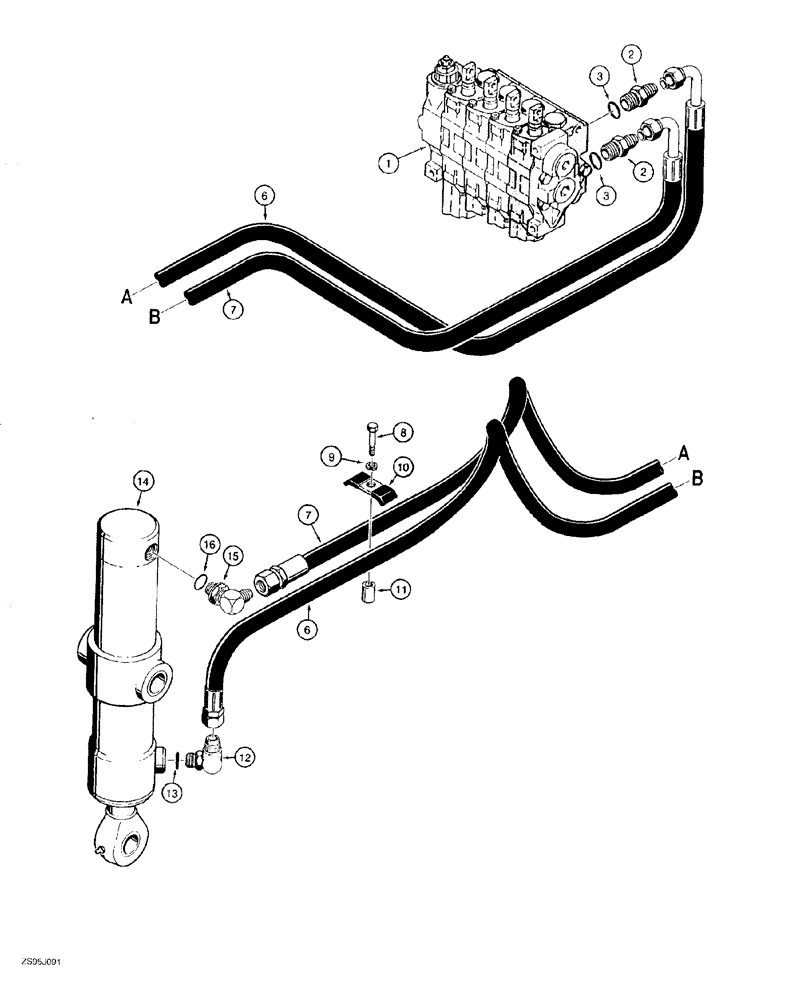

Запчасти Case 550G (8-16) - RIPPER HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

R58221

VALVE

ASSY. equipment control, four spool, see Figure 8-36, if used

1шт.

1

336346A1

VALVE

ASSY. equipment control, four spool, see Figure 8-37A, if used

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8"-14 flare x O-ring boss, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

R50321

HOSE ASSY.

auxiliary section lower port to closed end of cylinder, 1372 mm (54") long

1шт.

7

R47442

HOSE

auxiliary section upper port to rod end of cylinder, 1524 mm (60") long

1шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

R25782

CLAMP

hose

1шт.

11

A19177

SPACER

clamp

1шт.

12

R20839

FITTING

ELBOW 90 degree, adjustable, restricted, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

G101230

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 266.7mm Stroke

ASSY. ripper, 76 mm (3") ID x 267 mm (10-1/2") stroke, see Figure 8-26

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjusting O-ring boss, Incl. Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
