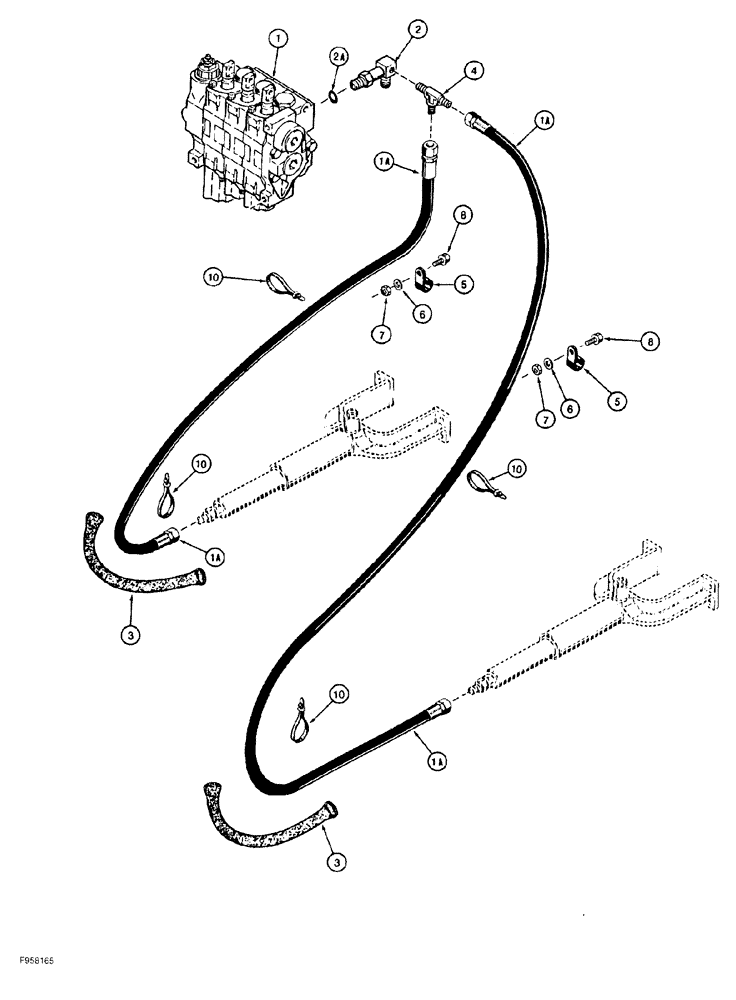

Запчасти Case 550G (8-18) - TRACK TENSIONER HYDRAULIC CIRCUIT, FOR UNITS WITH RUBBER TRACKS ONLY (07) - HYDRAULIC SYSTEM

1

R58221

VALVE

ASSY. equipment control, four spool, see Figure 8-36

1шт.

1a

125093A1

HYDRAULIC HOSE

equipment valve to track adjuster, 3099 mm (122") long

2шт.

2

123816A1

ELBOW

90 adjusting, degree, special, with check port

1шт.

2a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

125104A1

SHIELD

GUARD hose

2шт.

4

218-612

TEE,1/2"-20, 37 Degree x 1/8"-27, NPTF Run

1/2"-20 flare branch x flare x 1/8" PT

1шт.

5

D41564

P-type

2шт.

6

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

2шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

9

125266A1

LINK

clamp, not illustrated

2шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15"

8шт.
