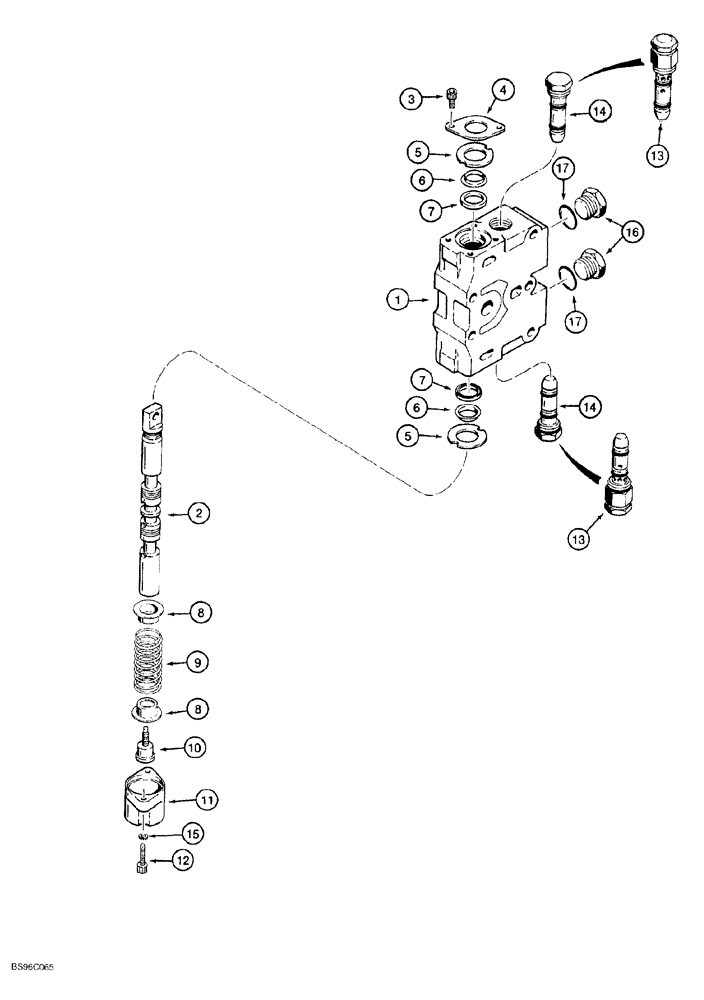

Запчасти Case 550G (8-42) - TILT, ANGLE AND AUXILIARY SECTIONS (07) - HYDRAULIC SYSTEM

100803A1

KNIFE SECTION

SECTION, KNIFE ASSY. ripper, no longer available, order 357166A1, see Figure 8-43A, Includes: Ref. 1 - 15

1шт.

100802A1

KNIFE SECTION

SECTION, KNIFE ASSY. tilt and angle, no longer available, order 357165A1, see Figure 8-43A, Includes: Ref. 1 - 15

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL section

1шт.

3

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

hex socket, 1/4" NC x 1/2"

2шт.

4

N8194

LARGE PLATE

PLATE, LARGE retainer, outer

1шт.

5

136898A1

RETAINER

spool seal

2шт.

6

136900A1

WIPER SEAL

WIPER spool

2шт.

7

100850A1

SEAL

lip, spool, Replaces: 136902A1

2шт.

8

H267591

SPRING SEAT

2шт.

9

100854A1

SPRING

centering, spool

1шт.

10

N14593

STEP BOLT

BOLT special, retainer

1шт.

11

S301092

FLANGE COVER CAP

spool, lower

1шт.

12

61-32514

HEX SOC SCREW,1/4"-20 x 7/8"

hex socket, self-locking, 100803A1 ripper section, 1/4" NC x 7/8", used with Ref. 15 washer

2шт.

12

102201A1

HEX SOC SCREW,1/4" - 20 x 7/8", W/ Nylon Patch

Special, self-locking, 100802A1 tilt and angle section

2шт.

13

N8950

VALVE

ASSY. circuit relief, ripper section, see Figure 8-46

2шт.

14

D87307

VALVE

ASSY. load check, tilt and angle sections, see Figure 8-44

2шт.

15

492-11025

LOCK WASHER,1/4"

Used with 61-32514 bolt in 100803A1 ripper section

2шт.

16

86512512

PLUG,7/8" - 14 ORB

Four spool to three spool, if used, Incl. 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
