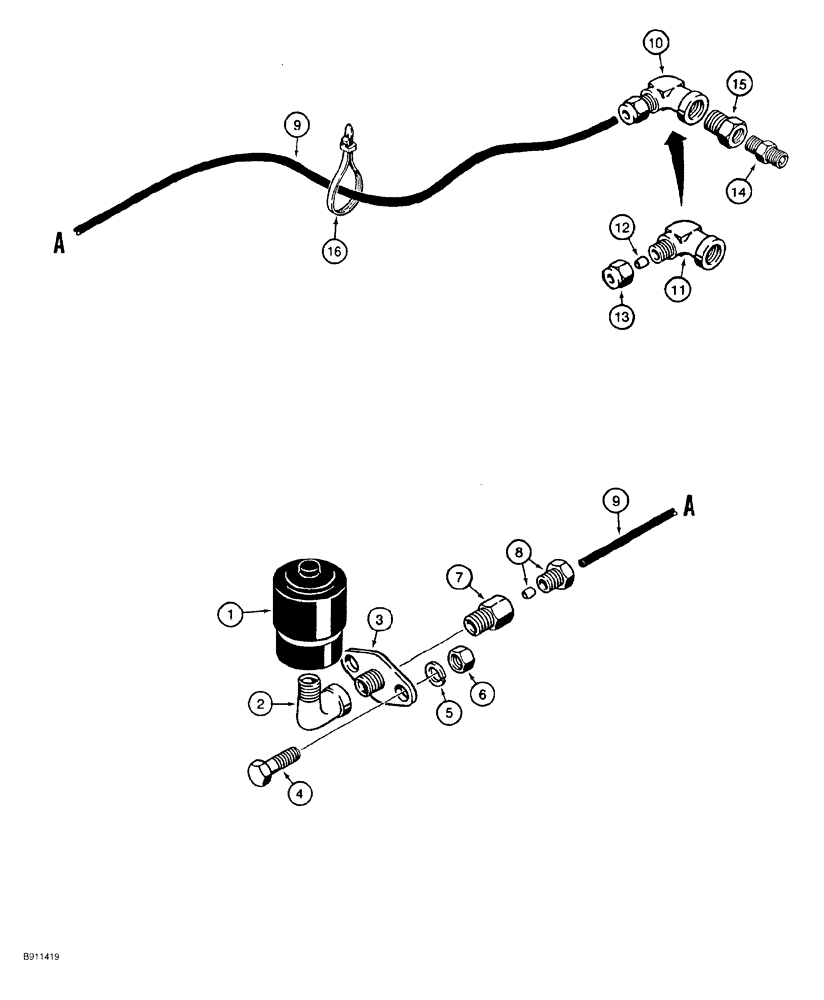

Запчасти Case 550G (2-14) - AIR RESTRICTION INDICATOR, MODELS WITHOUT TURBOCHARGER (01) - ENGINE

1

A59569

INDICATOR

restriction, air

1шт.

2

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street

1шт.

3

H357707

FLANGE

BRACKET restriction indicator mounting

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

492-11025

LOCK WASHER,1/4"

2шт.

6

425-104

NUT,1/4"-20, Cl 5

2шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER compression, 1/8" tube O.D. x 1/8" PT, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

BODY adapter

1шт.

8

222-500

TUBE NUT,5/16" - 24 NPT

hex, 1/8" tube O.D. x 5/16"-24

1шт.

9

R27253

PLASTIC-RUBBER TUBE,0.125" OD x 46" L

nylon, 1168 mm (46") long, cut from S118583X bulk tube shown below, no longer available, order R45449 shown below

1шт.

9

R45449

PLASTIC-RUBBER TUBE,1/8" OD x 26.5" L

nylon, 673 mm (26-1/2") long, cut from A138483 bulk tube shown below, Replaces: R27253

1шт.

10

222-5390

ELBOW,90 Degree, 3/8"-24 x 1/8" NPT

compression, 1/8" tube O.D. x 1/8" female PT, 90°, if used, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

12

222-4976

SLEEVE,1/8" Tube

O.D. 1/8" Tube

1шт.

13

222-4988

TUBE NUT,1/8" Tube

hex, O.D. x 3/8"-24 1/8" Tube

1шт.

14

D36264

FITTING

ADAPTER air restriction indicator, filter-type

1шт.

15

221-87

REDUCER,1/2" NPT x 1/8" NPT

pipe, 1/2" male x 1/8" female

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, retaining, tube to chassis, 15"

1шт.

S118583X

PLASTIC-RUBBER TUBE

bulk, nylon, 3 mm (1/8") O.D. x 7620 mm (300") long, see Ref. 9 P/N R27253

1шт.

A138483

TUBE

nylon, 2515 mm (99") long, see Ref. 9 P/N R45449

1шт.
