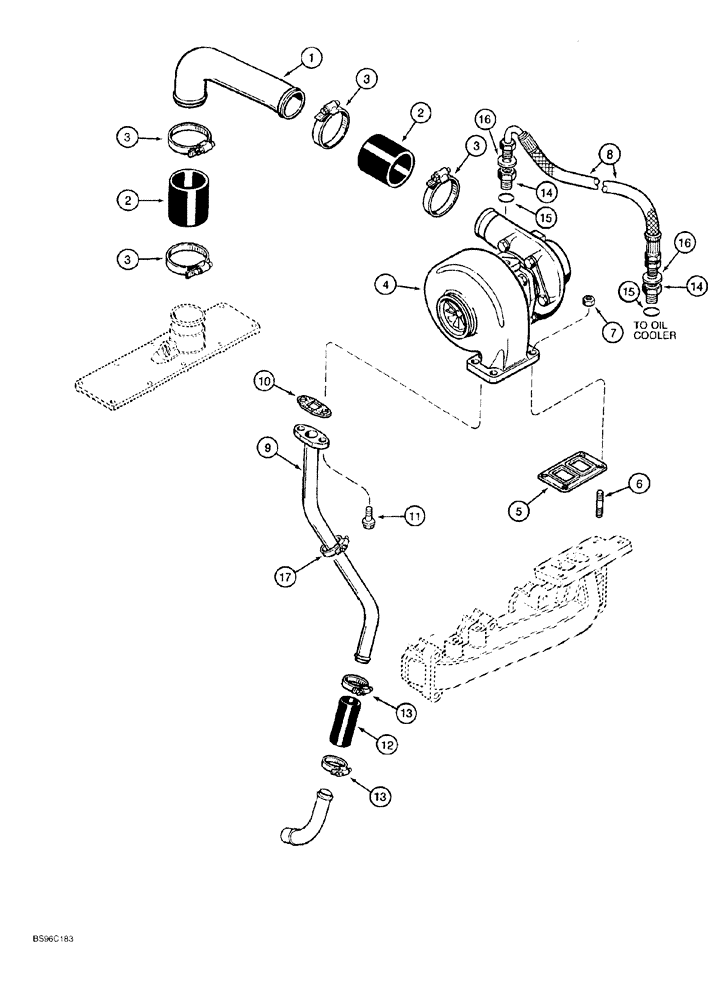

Запчасти Case 550G (2-28) - TURBOCHARGER SYSTEM, 4T-390 ENGINE, PRIOR TO CRAWLER P.I.N. JJG0255794 (01) - ENGINE

1

J906623

TUBE,2 mm OD x 299.8 mm L

TUBE crossover

1шт.

2

J916166

INTAKE AIR HOSE

air intake, 71 mm (2-3/4") long

2шт.

3

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSY. engine, see Figure 2-30 for correct assembly and parts list

1шт.

5

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

6

J818823

STUD

turbocharger mounting

1шт.

7

J818824

FLANGE NUT

hex flange, special, stud, 10 mm - 1.5

4шт.

8

J913759

HOSE

Turbocharger Oil Supply

1шт.

9

J903740

TUBE

turbocharger oil drain

1шт.

10

J928919

GASKET

turbo oil drain tube, Replaces: J914388

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

12

J903745

LARGE HOSE

HOSE,LARGE turbocharger oil drain, 76 mm (3") long

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adjustable

2шт.

14

J919687

HYD CONNECTOR

ADAPTER female hex, special, (1) used to connect turbocharger oil supply hose to turbocharger, Includes: Ref. 15

2шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

16

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

17

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adjustable, Order separately, Not included with engine, Used to hold Ref. 8 to Ref. 9

1шт.
