(3-06) - FUEL LINES, PRIOR TO P.I.N. JJG0255794

Запчасти Case 550G (3-06) - FUEL LINES, PRIOR TO P.I.N. JJG0255794 (02) - FUEL SYSTEM

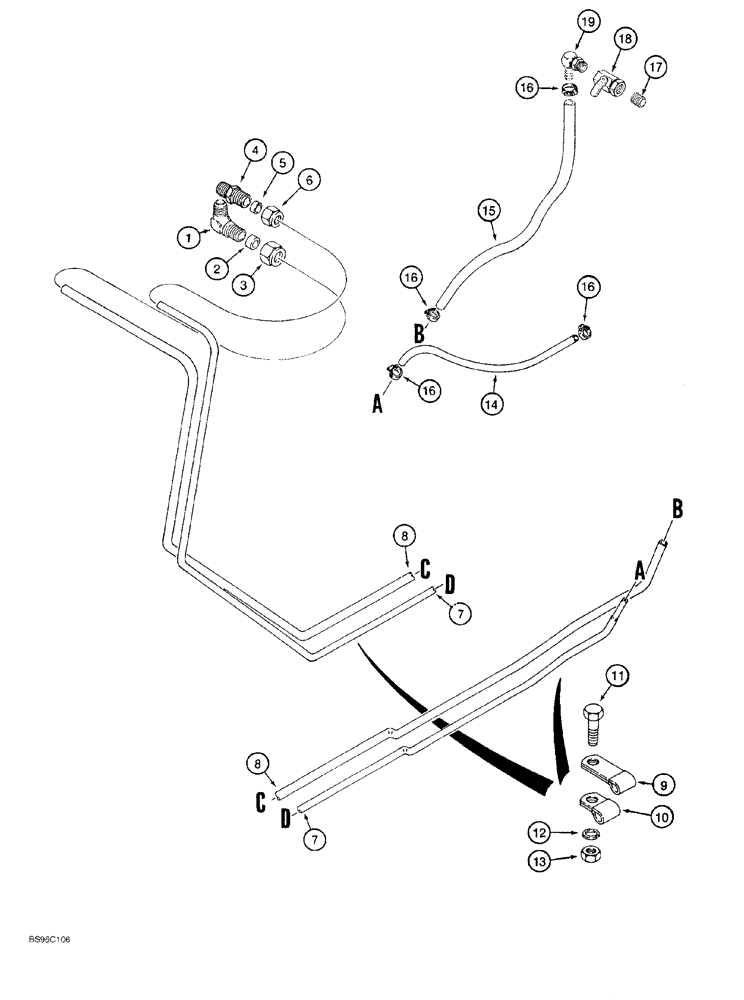

Схема запчастей Case 550G - (3-06) - FUEL LINES, PRIOR TO P.I.N. JJG0255794 (02) - FUEL SYSTEM
2
6
7
18
8
15
14
16
7
10
1
16
11
3
16
4
17
16
5
8
9
19
12
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ELBOW 90 degree, compression, 5/16" tube O.D. x 1/4" PT, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

2

222-103

SLEEVE,5/16" Tube

1шт.

3

222-113

TUBE NUT,9/16"-24

hex, 5/16" tube O.D. x 9/16"-24

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ADAPTER compression, 1/4" tube O.D. x 1/4" PT, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BODY adapter

1шт.

5

222-102

SLEEVE,1/4" Tube

1шт.

6

87017024

TUBE NUT,1/2"-24

hex, 1/4" tube OD x 1/2"-24

1шт.

7

R58730

FUEL TUBE,0.25" OD

upper, fuel return, 1/4" O.D.

1шт.

8

R58729

FUEL TUBE,0.312" OD

lower, fuel supply, 5/16" O.D.

1шт.

9

R13002

CLAMP

1/4"

2шт.

10

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type

2шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

R50624

FUEL HOSE,4.76 mm ID x 150.00 mm, SAE 30R1

Return, Filter to Fuel Tank

1шт.

15

D34989

FUEL HOSE,0.31" ID x 9.00", SAE 30R1

Supply, Fuel Tank To Lift Pump, Cut From S120317X Bulk Hose Shown Below

1шт.

16

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Adj

4шт.

17

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

straight, 1/4" PT x 7/8"

1шт.

18

113092A1

VALVE

shutoff

1шт.

19

217-295

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

ELBOW 90 degree, at fuel lift pump, 5/16" stem end x 1/4" PT

1шт.

S120317X

HOSE

bulk, 8 mm (5/16") ID x 7620 mm (300") long, see Ref. 15

1шт.
