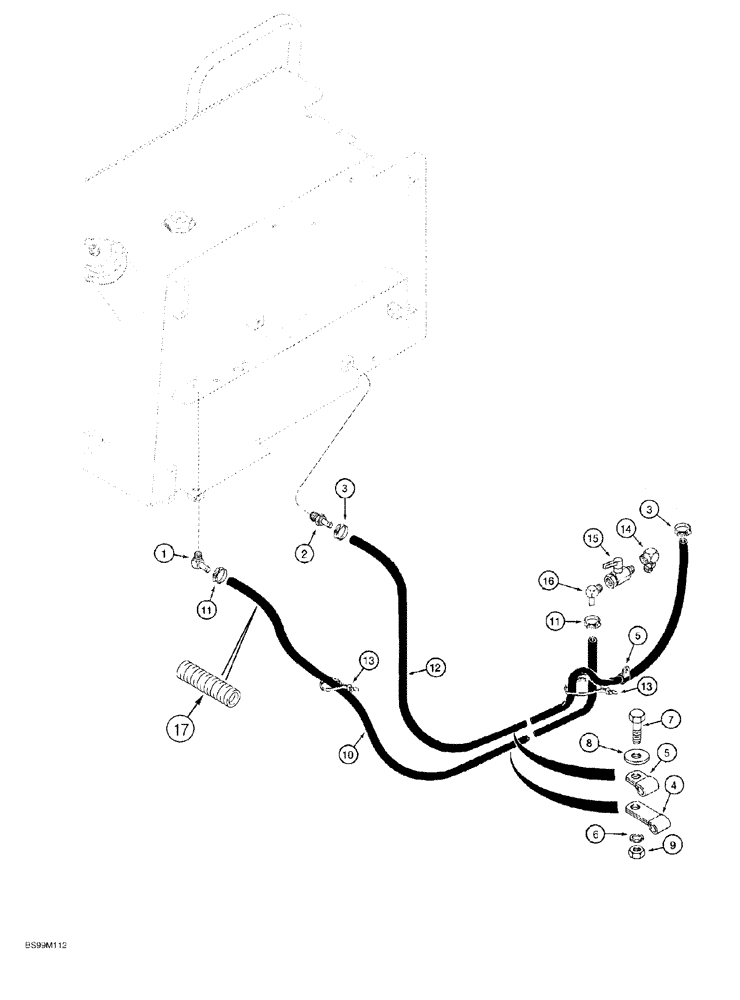

Запчасти Case 550G (3-07A) - FUEL LINES, P.I.N. JJG0255794 AND AFTER (02) - FUEL SYSTEM

1

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

2

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Adapter - straight

1шт.

3

214-1408

HOSE CLAMP,11.2mm - 19.8mm

Adjustable, No longer used, Order 214-1708 shown below

2шт.

3

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

adjustable, 1/2" - 29/32" dia., Replaces: 214-1408, improves fit on fuel lines

2шт.

4

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type

1-2шт.

5

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

P-type

1-2шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, 13/32" x 13/16" x 1/16"

1-2шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1-2шт.

8

492-11038

LOCK WASHER,3/8"

1-2шт.

9

425-106

NUT,3/8"-16, Cl 5

1-2шт.

10

257084A1

FUEL HOSE

supply, fuel tank to lift pump, 1850 mm (72-7/8") long, cut from S118466X bulk hose, shown below, no longer used, order 256728A1

1шт.

10

256728A1

FUEL HOSE

supply, fuel tank to lift pump, 2000 mm (78-3/4") long, cut from S118466X bulk hose, shown below, Replaces: 257084A1

1шт.

11

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

Adjustable, No longer used, Order 214-1708 shown below

2шт.

11

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

adjustable, 1/2" - 29/32" dia., Replaces: 214-1410, improves fit on fuel lines

2шт.

12

257085A1

FUEL HOSE

return, filter to fuel tank, 2220 mm (87-13/32") long, cut from S118400X bulk hose, shown below

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, harness, 15"

2-3шт.

14

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

1шт.

For System with 1/4" Fittings

1шт.

14

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

1шт.

For Systems With 3/8" Fittings

1шт.

15

284721A1

VALVE

Shutoff

1шт.

For Systems With 3/8" Fittings

1шт.

15

113092A1

VALVE

Shutoff

1шт.

For System with 1/4" Fittings

1шт.

16

217-372

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/4" Male NPTF

1шт.

For System with 1/4" Fittings

1шт.

16

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

For Systems With 3/8" Fittings

1шт.

17

R12586

TAPE

SLEEVE hose, used on fuel supply line 256728A1

1шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

HOSE,LARGE bulk, 10 mm (3/8") x 15 mm (5/8") x 7620 mm (300") long, see Ref. 12

1шт.

S118466X

LARGE HOSE

HOSE,LARGE bulk, 13 mm (1/2") ID x 7620 mm (300") long, see Ref. 10's

1шт.
