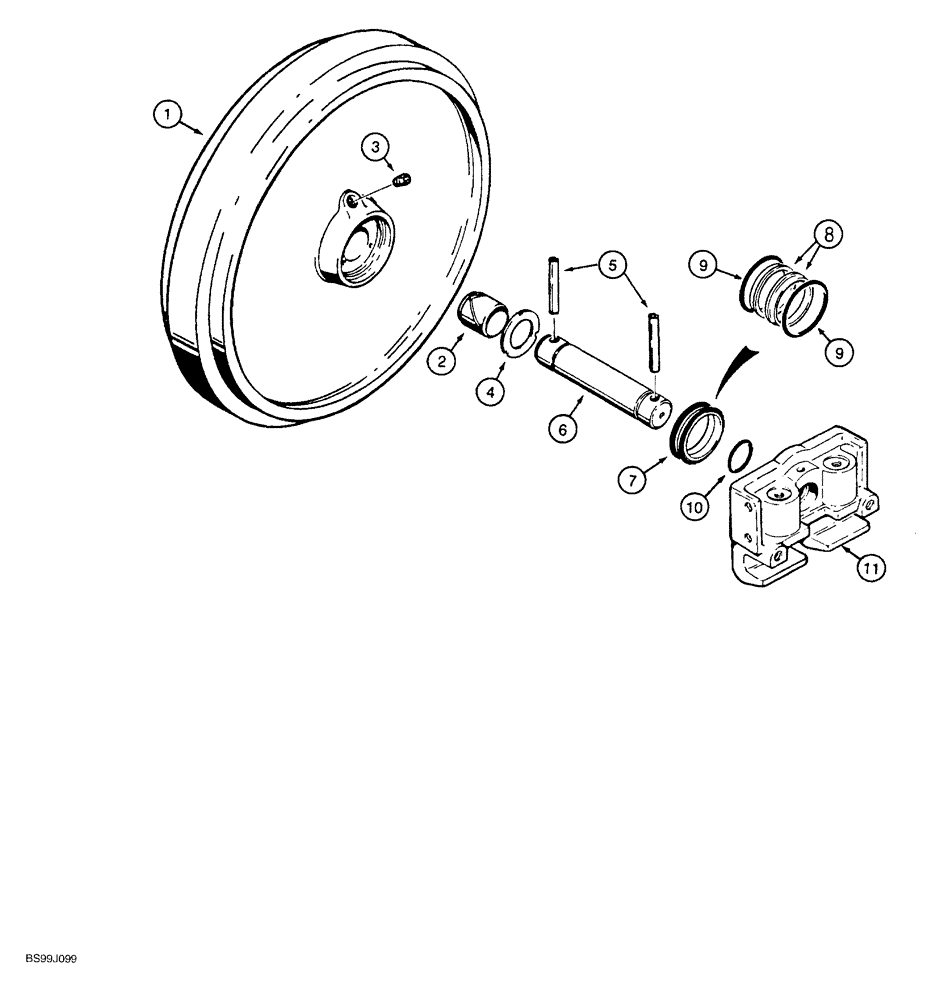

Запчасти Case 550G (5-06) - IDLER ASSEMBLIES (04) - UNDERCARRIAGE

R58710

FRONT IDLER

ASSY. track, used on all models prior to extended life track, no longer available, order 199076A1 shown below, Includes: Ref. 1 - 11

2шт.

1

NSS

NOT SOLD SEPARAT

HUB idler

1шт.

2

R24542

BUSHING,44.51mm ID x 49.23mm OD x 38.1mm L

split

2шт.

3

R33557

PLUG

hex socket, tapered, 12 mm - 1.5 x 10 mm

1шт.

4

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

thrust, idler

2шт.

5

R58807

GROOVED PIN,1/2" x 2 3/4", Type A, Hardened

shaft retaining 1/2" x 2 3/4", Type A, Hardened

2шт.

6

R58706

SHAFT

idler

1шт.

7

R33607

SEAL

ASSY. face, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL metal

2шт.

9

N6847

O-RING,75mm ID x 8mm Width

face seal

2шт.

10

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

2шт.

11

R58707

BRACKET

mounting

2шт.

199076A1

FRONT IDLER

ASSY. track, used on all models including models with extended life track, Includes: Ref. 1 - 11

2шт.

199077A1

HUB ASSY., with bushing, for service order 199076A1 idler assy. shown above, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HUB idler, 199076A1 assy.

1шт.

2

R24542

BUSHING,44.51mm ID x 49.23mm OD x 38.1mm L

split, 199076A1 idler assy.

2шт.

3

R33557

PLUG

hex socket, tapered, 12 mm - 1.5 x 10 mm, 199076A1 idler assy.

1шт.

4

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

thrust, idler, 199076A1 assy.

2шт.

5

R58807

GROOVED PIN,1/2" x 2 3/4", Type A, Hardened

shaft retaining, 199076A1 idler assy. 1/2" x 2 3/4", Type A, Hardened

2шт.

6

R58706

SHAFT

idler, 199076A1 assy.

1шт.

7

R33607

SEAL

ASSY. face, 199076A1 idler assy., Includes: Ref. 8 and 9

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL metal, 199076A1 idler assy.

2шт.

9

N6847

O-RING,75mm ID x 8mm Width

face seal, 199076A1 idler assy.

2шт.

10

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

199076A1 idler assy

2шт.

11

R58707

BRACKET

mounting, 199076A1 idler assy.

2шт.
